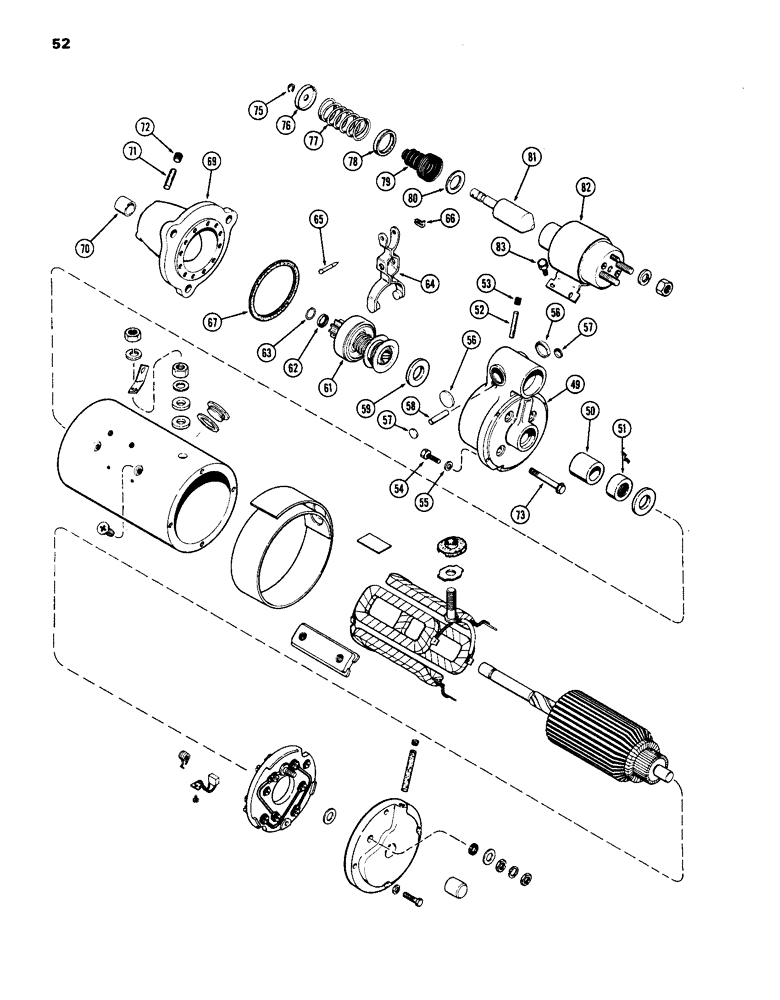

Запчасти Case IH 1070 (052) - STARTING MOTOR, (451B) DIESEL ENGINE (04) - ELECTRICAL SYSTEMS

A59217

STARTER MOTOR

STARTER ASSY., continued from Figure 50, Includes Ref. 49 - 83

1шт.

49

A42325

HOUSING ASSY. shift lever, Includes Ref. 50 - 53

1шт.

50

A40944

BUSHING

lever housing, 47/64 x 58/64 x 3/4"

1шт.

51

A25407

OIL SEAL

OIL SEAL lever housing, 21/32 x 1-3/8 x 25/64"

1шт.

52

A41417

WICK

oil

1шт.

53

221-1849

PLUG

oil wick hole

1шт.

54

114-1

BOLT,Hex, 1/4" - 28 x 1", Gr 5

5шт.

55

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

5шт.

56

A42013

PLUG

1-3/16" expansion

2шт.

57

A42064

PLUG

5/8" expansion

2шт.

58

A25402

STUD

SHAFT shift lever

1шт.

59

R15043

WASHER

brake, lever housing, 25/32 x 2 x 3/32"

1шт.

61

A42331

DRIVE

ASSY. starter

1шт.

62

R15049

COLLAR

pinion stop

1шт.

63

R15048

RING

pinion stop retainer

1шт.

64

A25398

LEVER

shift

1шт.

65

A25400

PIN

shift lever to solenoid plunger

1шт.

66

A25406

OIL SEAL

RETAINER shift lever pin

1шт.

67

A41508

GASKET

lever housing to drive housing

1шт.

69

A25347

HOUSING ASSY. drive end, Includes Ref. 70, 71 and 72

1шт.

70

A40868

BUSHING

drive housing, 9/16 x 3/4 x 3/4"

1шт.

71

R15023

WICK

oil

1шт.

72

221-1041

PLUG

oil wick hole

1шт.

73

A42012

BOLT (SPREADER),5/16" x 2 13/32"

SCREW ASSY. lever housing to drive housing

4шт.

75

G46146

SNAP RING,#37, Ext

Ring, Snap, , plunger retaining #37, Ext

1шт.

76

R21571

RETAINER

spring, w/ 13/32" hole

1шт.

77

A41242

SPRING

plunger return

1шт.

78

R21572

RETAINER

spring, w/ 1-13/64" hole

1шт.

79

A42308

BOOT

solenoid

1шт.

80

A42008

WASHER

retainer, 31/32 x 1-7/16 x 1/32"

1шт.

81

A25394

PLUNGER

solenoid

1шт.

82

A42326

SOLENOID

ASSY., See Figure 54, Order A44817

1шт.

83

R15159

SCREW,Hex, 1/4" - 20 x 3/8", w/ LW

solenoid attaching

4шт.
