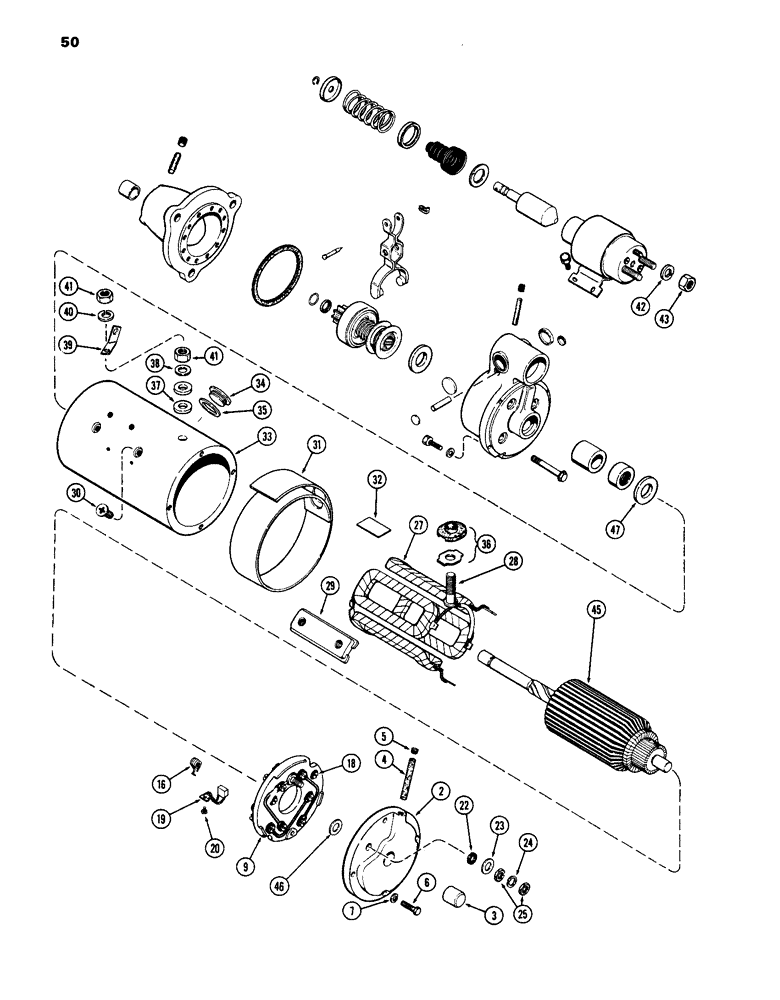

Запчасти Case IH 1070 (050) - STARTING MOTOR, (451B) DIESEL ENGINE (04) - ELECTRICAL SYSTEMS

A59217

STARTER MOTOR

STARTER ASSY., Delco no. 1113689, Includes Ref. 2 - 47

1шт.

2

A42341

FRAME

ASSY. commutator end, Includes Ref. 3, 4 and 5

1шт.

3

A42323

BUSHING

frame, 9/16 x 11/16 x 57/64"

1шт.

4

R15023

WICK

oil

1шт.

5

221-1041

PLUG

oil wick hole

1шт.

6

114-1

BOLT,Hex, 1/4" - 28 x 1", Gr 5

4шт.

7

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

9

A42786

LARGE PLATE

PLATE ASSY. brush, Includes Ref. 16 and 18

1шт.

16

A42333

SPRING

brush

4шт.

18

187-1051

SCREW brush plate assembly mounting

4шт.

19

A40891

BRUSH, COMMUTATOR

BRUSH ASSY.

4шт.

20

174-211

SCREW,Sl Rnd Hd, #8 - 32 x 5/16"

brush attaching, no. 8 x 5/16" N.C. rd. hd. mach.

4шт.

22

A42085

BUSHING

WASHER commutator end terminal, rubber

1шт.

23

R15013

WASHER

25/64 x 11/16 x 1/16"

1шт.

24

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

25

87016560

JAM NUT,Jam, 3/8"-16, G5

2шт.

27

A42332

COIL

ASSY. field, Includes Ref. 28

1шт.

28

A40896

STUD

starter terminal

1шт.

29

R15115

SHOE

pole

4шт.

30

A42127

SCREW,3/8" - 24 x 0.20"

pole shoes

8шт.

31

A42342

INSULATOR

INSULATION field coil

1шт.

32

A42327

INSULATOR

INSULATION field coil

2шт.

33

NSS

NOT SOLD SEPARAT

FRAME field

1шт.

34

R21587

PLUG

brush inspection

1шт.

35

A41924

GASKET

inspection plug

2шт.

36

A41925

BUSHING

PACKAGE bushing, terminal stud

1шт.

37

D30005

INSULATOR

WASHER insulator, field terminal stud

2шт.

38

D30006

WASHER

field terminal stud

1шт.

39

NLS

NO LONGER SERVICED

CONNECTOR field terminal, Serial Range: stud-solenoid

1шт.

40

192-113

LOCK WASHER,1/2"

WASHER lock, 1/2"

1шт.

41

129-145

JAM NUT,Jam, 1/2"-13, G5

2шт.

42

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

43

87016560

JAM NUT,Jam, 3/8"-16, G5

1шт.

45

A40800

ARMATURE

starter

1шт.

46

A41917

WASHER,14.25mm ID x 24.89mm OD x 1.57mm Thk

armature, commutator end

1шт.

47

A42202

WASHER

armature spacer, 49/64 x 1-3/4 x 19/64"

1шт.
