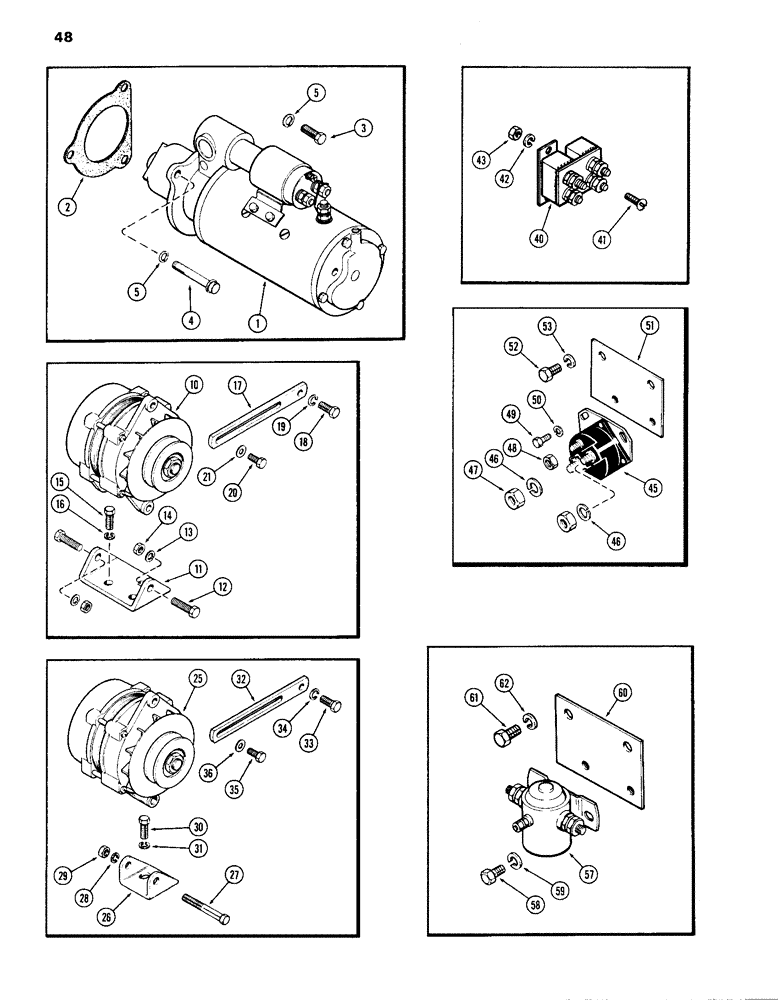

Запчасти Case IH 1070 (048) - ELECTRICAL EQUIPMENT MOUNTING, (451B) DIESEL ENGINE (04) - ELECTRICAL SYSTEMS

1

A59217

STARTER MOTOR

MOTOR starting, See Figures 50 and 51

1шт.

2

A27933

GASKET

starting motor, power shift

1шт.

3

113-481

BOLT,Locking, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

1/2 x 1-1/2" N.C. hex., Nylock

2шт.

4

166-93

12 PT SCREW,Flg, 1/2" - 13 x 3", Gr 8

SCREW, 1/2 x 3" N.C. ferry hd. cap screw

1шт.

5

92-8

LOCK WASHER,1/2"

3шт.

10

A61062

ALTERNATOR ASSY., w/ 2 mtg. feet, See Figure 56

1шт.

11

A61063

BRACKET

alternator mounting

1шт.

12

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

13

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

14

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

15

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

3шт.

16

92-6

LOCK WASHER,3/8"

3шт.

17

A59167

STRAP

alternator adjusting

1шт.

18

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

19

92-6

LOCK WASHER,3/8"

1шт.

20

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

21

195-521

WASHER,5/16", SAE

11/32 x 11/16 x 1/16"

1шт.

25

A59761

ALTERNATOR

ASSY., w/ 1 mtg. foot, See Figure 57A

1шт.

26

A38492

BRACKET

alternator mounting

1шт.

27

113-241

BOLT,Hex, 3/8" - 16 x 3", Gr 5

1шт.

28

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

29

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

30

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

31

92-6

LOCK WASHER,3/8"

2шт.

32

A59167

STRAP

alternator adjusting

1шт.

33

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

34

92-6

LOCK WASHER,3/8"

1шт.

35

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

36

195-521

WASHER,5/16", SAE

11/32 x 11/16 x 1/16"

1шт.

40

A59704

BREAKER

circuit

1шт.

41

173-226

SCREW,Sl Rnd Hd, #8 - 32 x 3/8"

no. 8 x 3/8" N.C. rd. hd.

2шт.

42

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, #8

2шт.

43

129-16

NUT,#8-32

2шт.

45

A39079

SOLENOID

manifold heater, 1st used trac. serial no. 8670718

1шт.

46

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

47

9635082

NUT,5/16" - 18, Gr 5

2шт.

48

193-1000

NUT,Keps, w/LW,#10-32

no. 10-32 hex., Keps

1шт.

49

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

2шт.

50

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

51

A60880

PLATE heater solenoid to engine block

1шт.

52

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

2шт.

53

92-5

LOCK WASHER,5/16"

2шт.

57

A57069

SOLENOID

manifold heater, Order A39079, used prior to trac. serial no. 8670718

1шт.

58

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

2шт.

59

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

60

A60880

PLATE heater solenoid to engine block

1шт.

61

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

2шт.

62

92-5

LOCK WASHER,5/16"

2шт.
