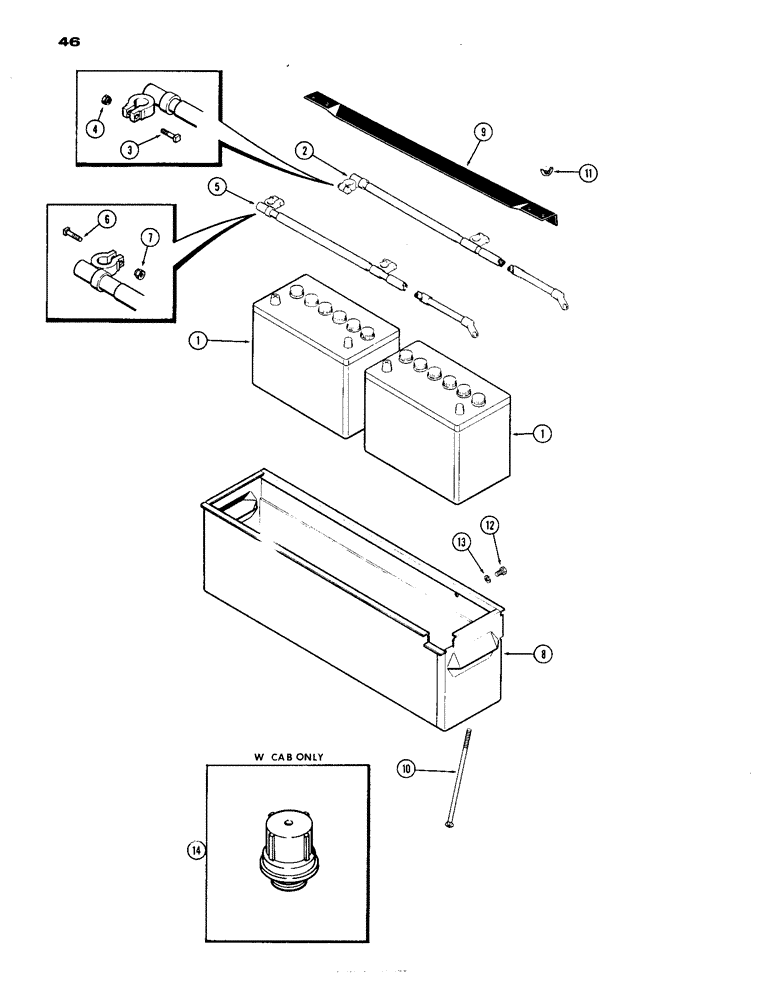

Запчасти Case IH 1070 (046) - BATTERY - CABLES - BATTERY BOX, (451B) DIESEL ENGINE (04) - ELECTRICAL SYSTEMS

1

A38411

DRY BATTERY

12 V

2шт.

2

A59728

CABLE

battery, negative, ground, Includes Ref. 3 and 4

1шт.

3

117-108

SQUARE BOLT,5/18" - 16 x 1 3/8", Gr 5

cable, 5/16 x 1-3/8" N.C. sq. hd.

2шт.

4

129-516

NUT

cable bolt, w/ shoulder, 5/16" N.C. hex.

2шт.

5

A62141

ELECTRIC CABLE

CABLE ASSY. battery, positive, Order A65817, Includes Ref. 6 and 7

1шт.

6

117-108

SQUARE BOLT,5/18" - 16 x 1 3/8", Gr 5

cable, 5/16 x 1-3/8" N.C. sq. hd.

2шт.

7

129-516

NUT

cable bolt, w/ shoulder, 5/16" N.C. hex.

2шт.

8

A62137

BOX

battery, Replaces A59556

1шт.

9

A59173

CLAMP

battery hold down

1шт.

10

11-5160

BOLT

battery hold down

2шт.

11

G49020

NUT

wing, 5/16" N.C.

2шт.

12

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

1шт.

13

92-5

LOCK WASHER,5/16"

1шт.

14

A60553

CAP

battery, non spill vent

12шт.
