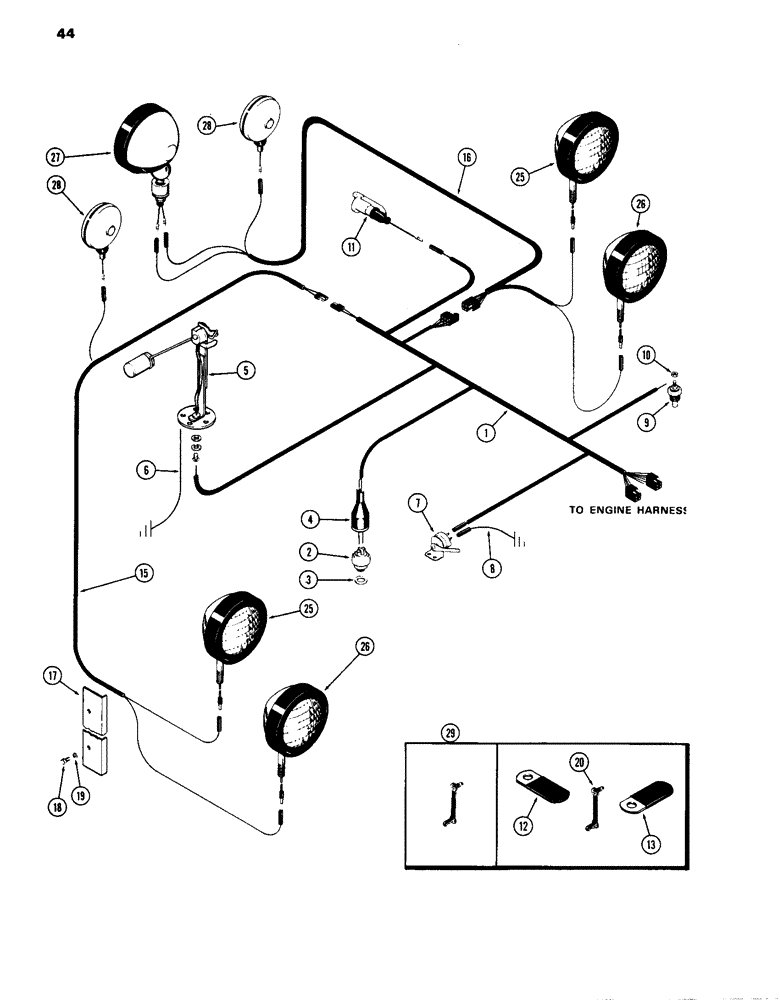

Запчасти Case IH 1070 (044) - ELECTRICAL EQUIPMENT AND WIRING, (451B) DIESEL ENGINE TRANS. HARNESS (04) - ELECTRICAL SYSTEMS

1

A61132

SPARE PART Transmission wire, used w/ 1 flasher lamp

1шт.

2

A20990

SWITCH

SWITCH - safety, neutral start

1шт.

3

G49402

SHIM,.010" Thk

Neutral start switch

1шт.

4

A61028

BOOT

Neutral start switch

1шт.

5

A62092

UNIT

Fuel sending, Replaces A59491

1шт.

6

A59710

ELECTRICAL WIRE

WIRE Fuel gauge sender ground

1шт.

7

A33977

SWITCH

Hand brake warning

1шт.

8

A59711

ELECTRICAL WIRE

WIRE Hand brake switch ground

1шт.

9

A21462

SENDER UNIT

SENDER Trans. temp, Replaces A58984

1шт.

10

129-661

NUT

Brass, no. 10 N.F. hex.

1шт.

11

REF

INSTRUCTION

SOCKET auxiliary outlet, See Figure 61A

1шт.

12

A37179

CLIP

Trans. sending wire

1шт.

13

A22880

CLIP

Trans. wire harness and fuel sending unit

1шт.

15

A62412

HARNESS

Fender wire, RH, used w/ 2 flasher lamps

1шт.

15

A59708

HARNESS

Fender wire, RH, used w/ 1 flasher lamp

1шт.

16

A59709

HARNESS

Fender wire, LH

1шт.

17

A59720

SPARE PART Fender wire harness, LH, used w/ 12" fenders, 26-13/16" long

1шт.

17

A59721

SPARE PART Fender wire harness, RH, used w/ 12" fenders, 26-13/16" long

1шт.

17

A60893

GUARD

SHIELD fender wire harness, RH and LH, used w/ 24" fenders, 14-5/16" long

2шт.

18

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

Shield

4шт.

19

92-5

LOCK WASHER,5/16"

4шт.

20

A62547

CLAMP

Fender, Serial Range: wires-fender

7шт.

25

A59701

LAMP

Front head driving, See Figure 59A

2шт.

26

A59724

HEADLAMP

Front cultivator, See Figure 60, for 12" fender

2шт.

26

A59723

LAMP

Front cultivator, See Figure 60, for 24" fender

2шт.

27

A59703

LAMP

Rear flood and tail, See Figure 61A

1шт.

28

A34853

LAMP

Flasher, See Figure 58

2шт.

29

A62547

CLAMP

Fender wires

1шт.
