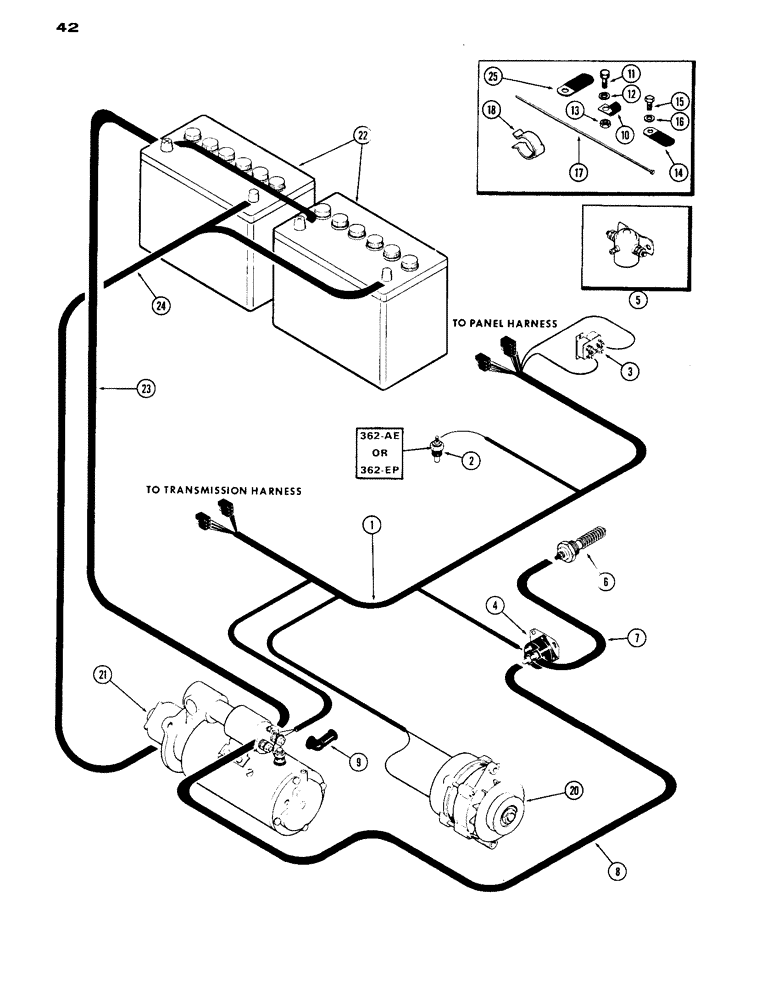

Запчасти Case IH 1070 (042) - ELECTRICAL EQUIPMENT AND WIRING, (451B) DIESEL ENGINE, ENGINE HARNESS (04) - ELECTRICAL SYSTEMS

1

A61933

HARNESS

Engine wire, used w/ 2 flasher lamps

1шт.

1

A59706

HARNESS

Engine wire, used w/ 1 flasher lamp, Order A63737

1шт.

2

F13156

SENDER UNIT

SENDER Temperature, stamped 362-AE, used w/ air conditioner and A59681 gauge, See Figure 40, these gauge-sender combinations are not interchangeable

1шт.

2

A61787

TRANSMITTER

UNIT temperature sending, stamped 362-EP, used w/ air conditioner and A61786 gauge, See Figure 40, these gauge-sender combinations are not interchangeable

1шт.

2

A61787

TRANSMITTER

UNIT temperature sending, stamped 362-EP, used w/ A61785 gauge and w/o air conditioner, See Figure 40, these gauge-sender combinations are not interchangeable

1шт.

3

A59704

BREAKER

Circuit, See Figure 48

1шт.

4

A39079

SOLENOID

Manifold heater, 1st used trac. S/N 8670718, See Figure 48

1шт.

5

A57069

SOLENOID

Manifold heater, Order A39079, used prior to trac. S/N 8670718, See Figure 48

1шт.

6

A37775

HEATER

Manifold

1шт.

7

A61036

ELECTRICAL WIRE

WIRE Manifold, Serial Range: heater-solenoid

1шт.

8

A59713

ELECTRICAL WIRE

WIRE Heater, Serial Range: solenoid-starter

1шт.

9

A21753

CAP

Rubber, starter positive terminal and heater solenoid battery terminal

2шт.

10

A59718

CLAMP

SPARE PART Engine wire harness

1шт.

11

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Clip

1шт.

12

192-21

LOCK WASHER,3/8"

1шт.

13

129-103

NUT,Hex, 3/8" - 16, Gr 5

1шт.

14

A37179

CLIP

Fender and alternator wires

1шт.

15

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

Clip

1шт.

16

92-6

LOCK WASHER,3/8"

1шт.

17

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP Engine wire harness

1шт.

18

A60894

CLIP

Alternator wire harness breather tube

1шт.

20

REF

INSTRUCTION

ALTERNATOR ASSY, See Figure 48

1шт.

21

REF

INSTRUCTION

MOTOR starting, See Figure 48

1шт.

22

A38411

DRY BATTERY

12V

2шт.

23

A62141

ELECTRIC CABLE

Battery, positive, Replaces A59727, Order A65817

1шт.

24

A59675

NEG BATTERY CABLE

SPARE PART Negative, ground

1шт.

25

A22883

CLIP

Battery cable

1шт.
