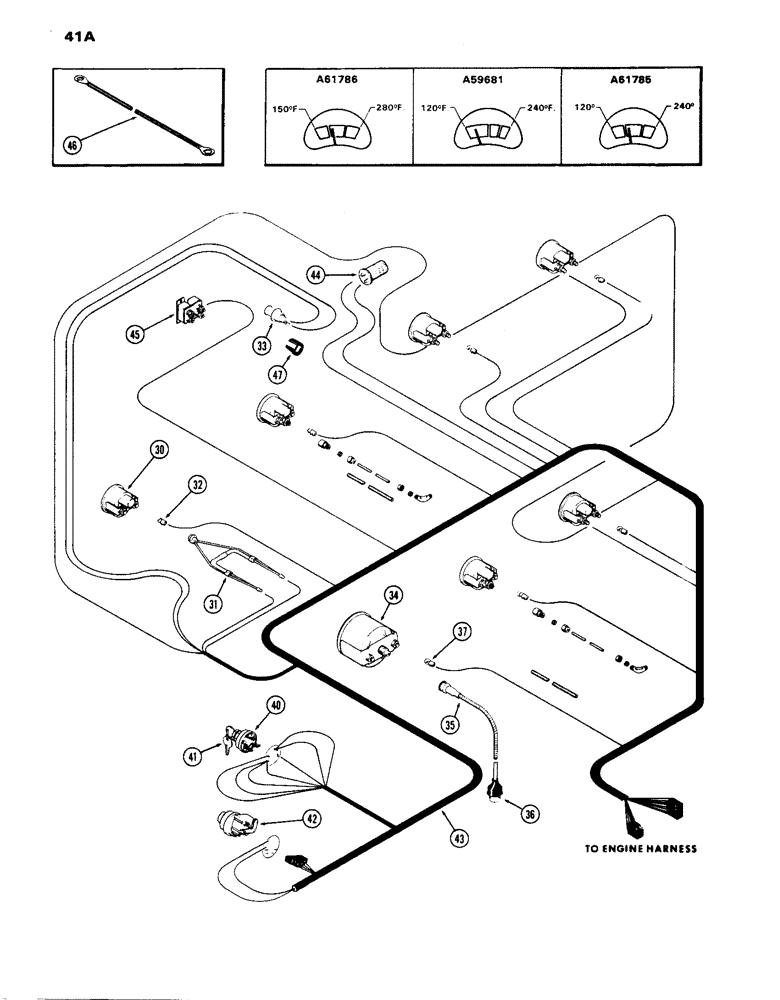

Запчасти Case IH 1070 (041A) - INSTRUMENT AND WIRING, (451B) DIESEL ENGINE (04) - ELECTRICAL SYSTEMS

30

A59687

DIAL

CASE alternator warning lamp

1шт.

31

A59688

SPRING

RECEPTACLE AND WIRE alternator warning lamp, Order A137562

1шт.

32

A14553

BULB

Alternator warning, Replaces T29381

1шт.

33

A59689

LAMP

Hand brake warning

1шт.

A42296

BULB

12V flasher, red

1шт.

34

A59733

TACHOMETER

ASSY, Order A62600

1шт.

35

A59691

CABLE

ASSY, tachometer drive, w/ boot, Includes Ref. 36

1шт.

36

A24523

KIT

Tachometer cable repair

1шт.

37

A14553

BULB

Tachometer, Replaces T29381

1шт.

40

A59693

SWITCH

ASSY, ignition and starting

1шт.

41

A60319

KEY

ASSY, starting, set of 2, Replaces A42212

1шт.

42

REF

INSTRUCTION

SWITCH ASSY, lights, See Figure 61A

1шт.

43

A59705

HARNESS

Inst. panel wire

1шт.

44

A65550

FLASHER UNIT

12V, w/ sealing gasket

1шт.

45

A59704

BREAKER

Circuit, 80 amp, See Figure 48

1шт.

46

A60882

STRAP

Instrument panel grounding

1шт.

47

A62677

GUARD

SHROUD hand brake warning lamp

1шт.
