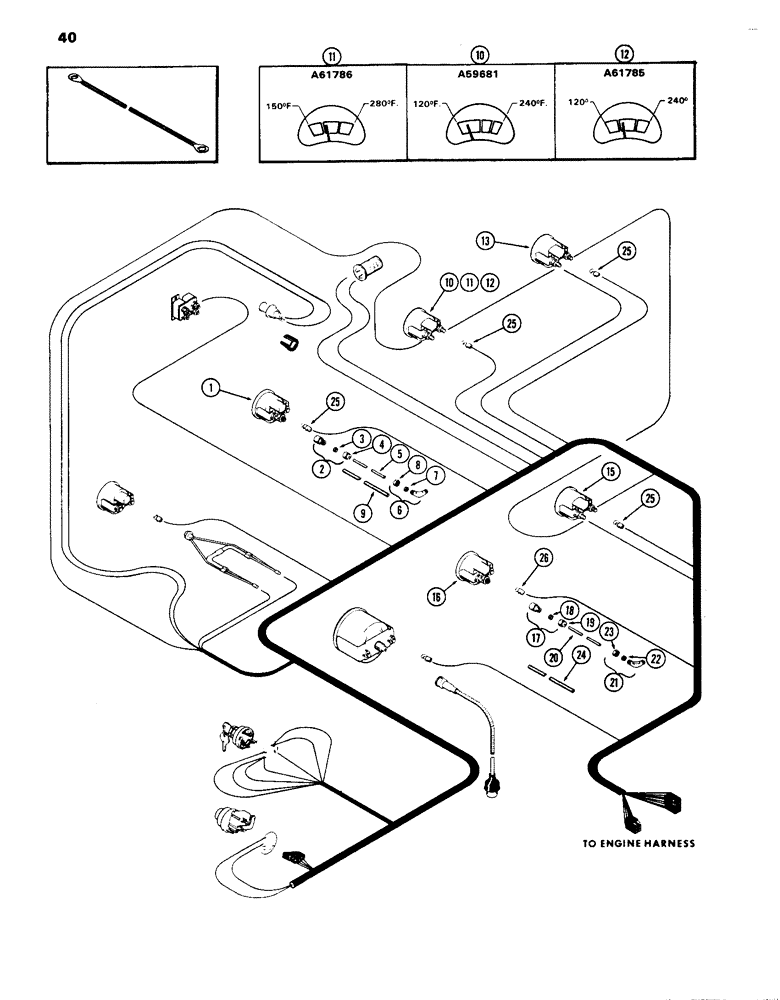

Запчасти Case IH 1070 (040) - INSTRUMENTS AND WIRING, (451B) DIESEL ENGINE (04) - ELECTRICAL SYSTEMS

1

A62006

GAUGE

engine oil pressure, Replaces A59678

1шт.

2

222-11

FITTING,3/8"-24 Inv Fl x 1/8" NPT Fem

CONNECTOR, 3/16" tube, 1/8" P.T., used w/ A66386, Includes Ref. 3 and 4

1шт.

3

222-101

SLEEVE,3/16" Tube

for 3/16" Tube

1шт.

4

222-111

TUBE NUT,7/16" - 24

NUT, for 3/16" tube

1шт.

2

222-10

FITTING,3/8" - 24 JIC x 1/8" NPT

CONNECTOR, 1/8" tube, 1/8" P.T., used w/ A59679, Includes Ref. 3 and 4

1шт.

3

222-100

TUBE NUT,1/8" Tube

SLEEVE, for 1/8" Tube

1шт.

4

222-110

TUBE NUT,3/8"-24

NUT, for 1/8" tube

1шт.

5

A66386

TUBE

eng. oil press., 3/16" O.D., 1st used trac. serial no. 8731489

1шт.

5

A59679

TUBE

engine oil pressure, 1/8" O.D., used prior to trac. serial no. 8731489, Order (1) A66386, (1) 222-11 and (1) 222-41

1шт.

6

222-41

ELBOW,90 Degree, 7/16"-24 x 1/8 NPT

90 deg., 3/16" tube, 1/8" P.T., used w/ A66386, Includes Ref. 7 and 8

1шт.

7

222-101

SLEEVE,3/16" Tube

for 3/16" Tube

1шт.

8

222-111

TUBE NUT,7/16" - 24

NUT, for 3/16" tube

1шт.

6

222-40

ELBOW,90 Degree, 3/8"-24 Fem x 1/8"-27 NPTF

90 deg., 1/8" tube, 1/8" P.T., used w/ A59679, Includes Ref. 7 and 8

1шт.

7

222-100

TUBE NUT,1/8" Tube

SLEEVE, for 1/8" Tube

1шт.

8

222-110

TUBE NUT,3/8"-24

NUT, for 1/8" tube

1шт.

9

A59680

LOOM

engine oil pressure tube

1шт.

10

A59681

GAUGE

eng. temp., used w/ air conditioner, 120 deg. to 240 deg., used w/ F13156 sending unit, See Figure 14

1шт.

11

A61786

ELECTRICAL GAUGE

GAUGE eng. temp., used w/ air conditioner, 150 deg. to 280 deg., used w/ A61787 sending unit, See Figure 14

1шт.

12

A61785

SPARE PART

GAUGE eng. temp., used w/o air conditioner, 120 deg. to 240 deg., used w/ A61787 sending unit, See Figure 14, Order A61786

1шт.

13

A59682

ELECTRICAL GAUGE

GAUGE fuel

1шт.

15

A64491

ELECTRICAL GAUGE

GAUGE transmission temperature, Replaces A59683

1шт.

16

A59684

ELECTRICAL GAUGE

GAUGE transmission pressure, the above temperature gauge-sender combinations are not interchangeable

1шт.

17

222-10

FITTING,3/8" - 24 JIC x 1/8" NPT

CONNECTOR, 1/8" tube, 1/8" P.T., Includes Ref. 18 and 19

1шт.

18

222-100

TUBE NUT,1/8" Tube

SLEEVE, for 1/8" Tube

1шт.

19

222-110

TUBE NUT,3/8"-24

NUT, for 1/8" tube

1шт.

20

A59685

TUBE

trans. pressure gauge

1шт.

21

222-40

ELBOW,90 Degree, 3/8"-24 Fem x 1/8"-27 NPTF

90 deg., 1/8" tube x 1/8" P.T., Includes Ref. 22 and 23

1шт.

22

222-100

TUBE NUT,1/8" Tube

SLEEVE, for 1/8" Tube

1шт.

23

222-110

TUBE NUT,3/8"-24

NUT, for 1/8" tube

1шт.

24

A59686

LOOM

trans. pressure gauge tube

1шт.

25

A14553

BULB

gauges, Replaces T29381

4шт.

26

A14553

BULB

trans. pressure gauge, Replaces T29381, used on power shift models w/ and w/o P.T.O. and on mechanical shift models w/ P.T.O.

1шт.

205-68

HOLE PLUG BUTTON,2 3/32"

PLUG, 2-9/16" button type, used w/ mechanical shift, w/o P.T.O.

1шт.
