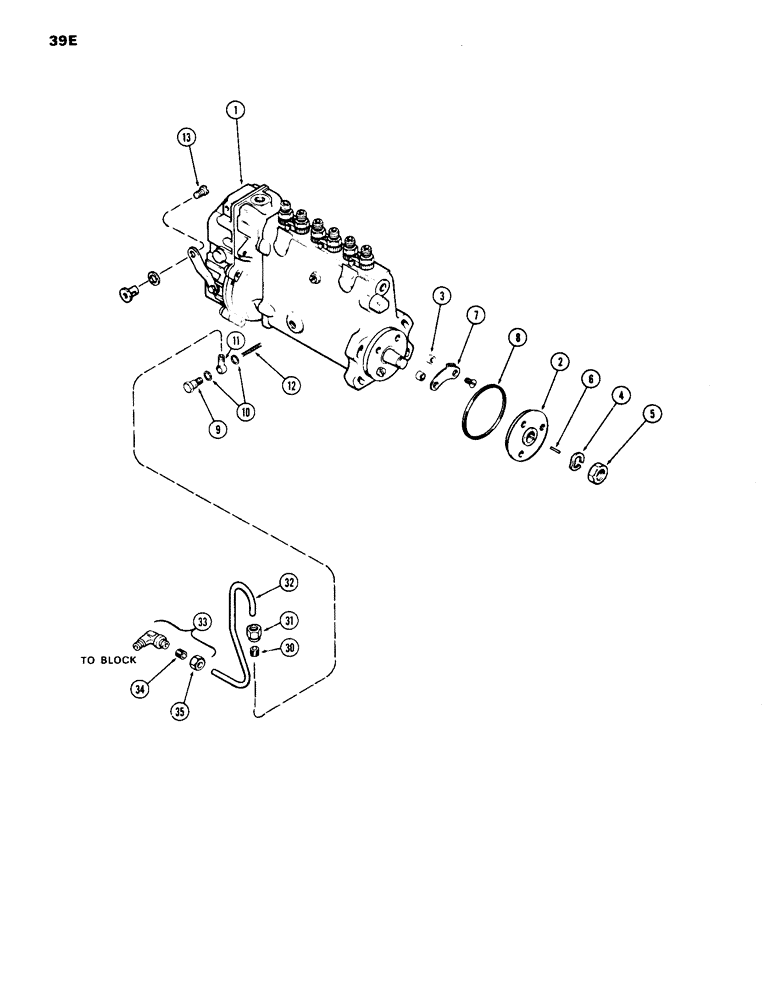

Запчасти Case IH 1070 (039E) - FUEL INJECTION PUMP, (451B) DIESEL ENGINE, W/O FILTER OR HAND PUMP, W/LUBE ON ENGINE SIDE OF PUMP (03) - FUEL SYSTEM

1

A58536

PUMP ASSY. fuel injection, 2000 RPM, Includes Ref. 2 - 13, Bosch no. PES6A85C 420LS2264, Governor no. EP/RSV300-1000A2B521DR

1шт.

2

A41853

HUB

pump drive

1шт.

3

A41855

BUSHING

SPACER hub

2шт.

4

A42312

LOCK WASHER

lock, hub nut

1шт.

5

A42313

NUT

hub

1шт.

6

A20933

KEY

, Serial Range: hub-shaft

1шт.

7

A41854

INDICATOR

POINTER pump adjustment

1шт.

8

A41856

O-RING,3mm Thk x 75mm ID

pump mounting

1шт.

9

A25192

BANJO BOLT

BOLT oil tube fitting

1шт.

10

A22381

WASHER

tube fitting, copper

2шт.

11

A25191

FITTING

oil tube to pump, banjo

1шт.

12

A25190

SPRING

oil tube fitting

1шт.

13

A59101

PIVOT

stop control cable

1шт.

30

222-102

SLEEVE,1/4" Tube

Oil gallery to pump 1/4" Tube

1шт.

31

87017024

TUBE NUT,1/2"-24

NUT oil gallery to pump

1шт.

32

A58717

TUBE

oil, Serial Range: gallery-pump

1шт.

33

222-42

ELBOW,90 Degree, 1/2"-24 Fem x 1/8"-27 NPTF

ASSY., 1/4" tube x 1/4" P.T., 90 deg., Includes Ref. 34 and 35

1шт.

34

222-102

SLEEVE,1/4" Tube

1шт.

35

87017024

TUBE NUT,1/2"-24

NUT, for 1/4" tube

1шт.
