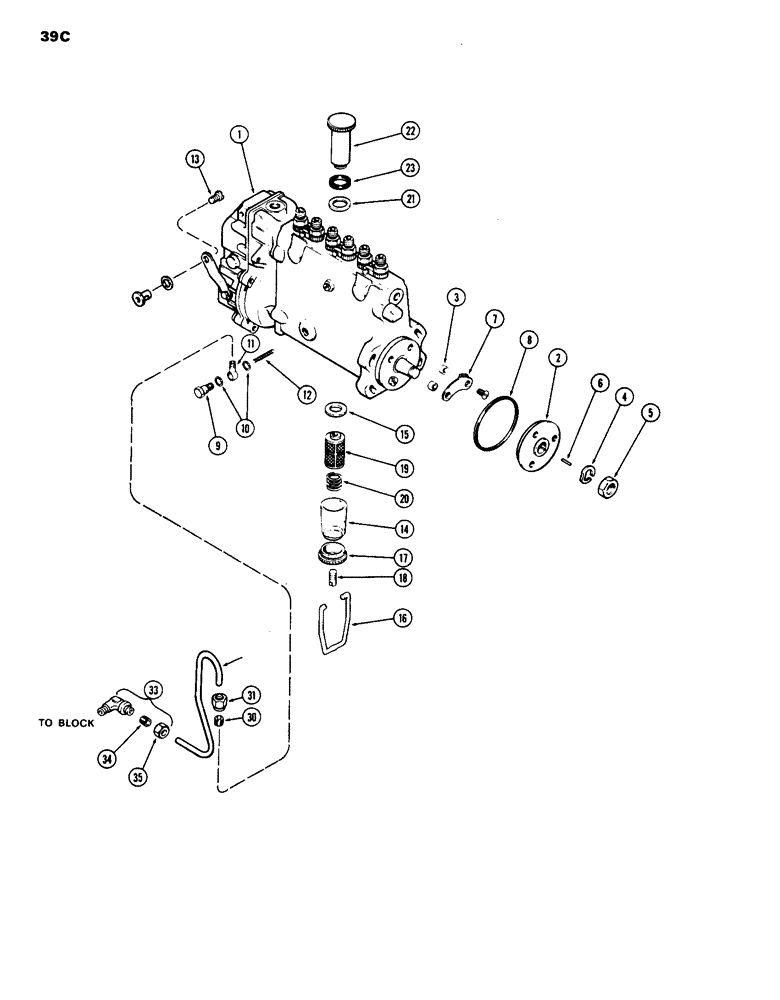

Запчасти Case IH 1070 (039C) - FUEL INJECTION PUMP, (451B) DIESEL ENGINE, W/FILTER & HAND PUMP, W/LUBE LINE ON ENGINE SIDE ON PUMP (03) - FUEL SYSTEM

1

A62571

FUEL INJECTION PUMP

PUMP ASSY. fuel injection, 2100 RPM, Includes Ref. 2 - 23, Bosch no. PES6A85C420LS2264, Governor no. EP/RSU375-1050A2B

1шт.

2

A41853

HUB

pump drive

1шт.

3

A41855

BUSHING

SPACER pointer

2шт.

4

A42312

LOCK WASHER

lock, hub nut

1шт.

5

A42313

NUT

lock

1шт.

6

A20933

KEY

, Serial Range: hub-shaft

1шт.

7

A41854

INDICATOR

POINTER hub adjustment

1шт.

8

A41856

O-RING,3mm Thk x 75mm ID

2-61/64 x 3-3/16 x 1/8"

1шт.

9

A25192

BANJO BOLT

BOLT oil tube fitting

1шт.

10

A22381

WASHER

copper, tube fitting

2шт.

11

A25191

FITTING

banjo, oil, Serial Range: tube-pump

1шт.

12

A25190

SPRING

oil tube fitting

1шт.

13

A44259

SCREW

pump stop control cable lock

1шт.

14

A43347

BOWL

filter

1шт.

15

A43346

GASKET

bowl

1шт.

16

A43350

CLAMP

BAIL bowl

1шт.

17

A43348

NUT

bail, retaining

1шт.

18

A43349

STUD

bail nut

1шт.

19

A43344

FILTER, ELEMENT

ELEMENT filter

1шт.

20

A43345

SPRING

element retaining

1шт.

21

A43351

SEAL

port, copper gasket

2шт.

22

A43343

CARTRIDGE

PRIMER ASSY. hand pump, Includes Ref. 23

1шт.

23

A45342

GASKET

primer pump, rubber, Order A44761

1шт.

30

222-102

SLEEVE,1/4" Tube

Oil gallery to pump 1/4" Tube

1шт.

31

87017024

TUBE NUT,1/2"-24

NUT oil gallery to pump

1шт.

32

A58717

TUBE

oil, Serial Range: gallery-pump

1шт.

33

222-42

ELBOW,90 Degree, 1/2"-24 Fem x 1/8"-27 NPTF

1/4" tube, Includes Ref. 34 and 35

1шт.

34

222-102

SLEEVE,1/4" Tube

1шт.

35

87017024

TUBE NUT,1/2"-24

NUT, for 1/4" tube

1шт.
