(039A) - FUEL INJECTION PUMP, (451B) DIESEL ENGINE, W/FILTER & HAND PUMP, W/LUBE LINE ON OUTSIDE OF PUMP

Запчасти Case IH 1070 (039A) - FUEL INJECTION PUMP, (451B) DIESEL ENGINE, W/FILTER & HAND PUMP, W/LUBE LINE ON OUTSIDE OF PUMP (03) - FUEL SYSTEM

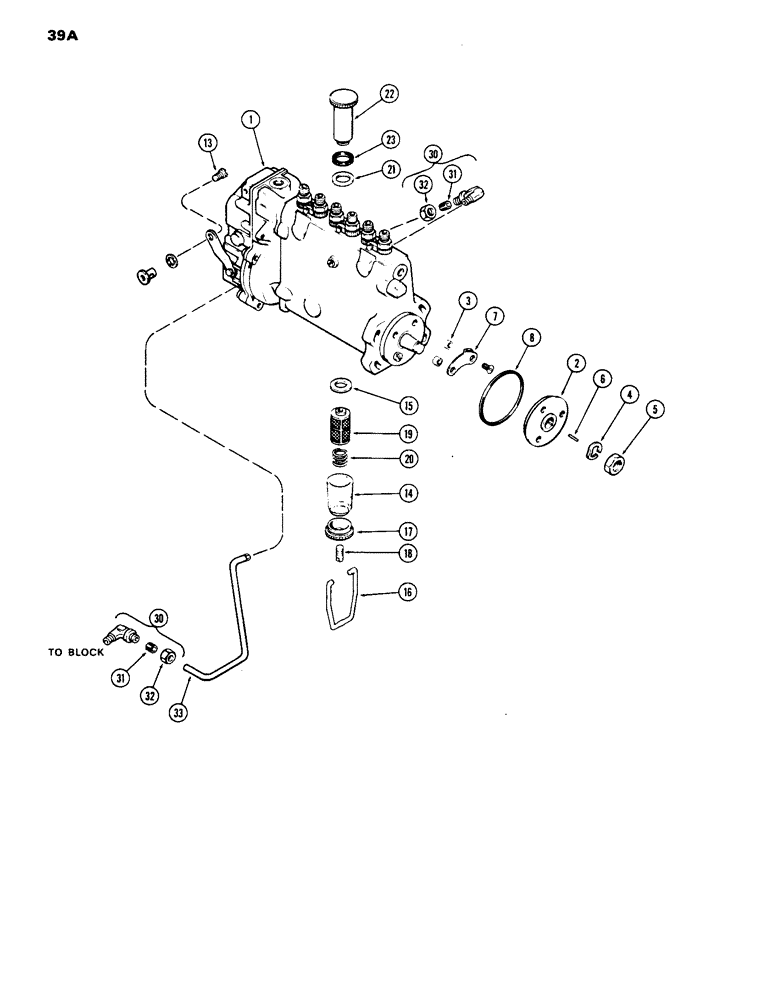

Схема запчастей Case IH 1070 - (039A) - FUEL INJECTION PUMP, (451B) DIESEL ENGINE, W/FILTER & HAND PUMP, W/LUBE LINE ON OUTSIDE OF PUMP (03) - FUEL SYSTEM
18
31
4
8
17
30
30
23
13
32
33
5
20
15
32
31
6
22
7
16
19
2
21
14
1
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

A138038

PUMP

ASSY. fuel injection, 2100 RPM, Includes Ref. 2 - 23

1шт.

2

A41853

HUB

pump drive

1шт.

3

A41855

BUSHING

SPACER hub

2шт.

4

A42312

LOCK WASHER

lock, hub nut

1шт.

5

A42313

NUT

hub

1шт.

6

A20933

KEY

, Serial Range: hub-shaft

1шт.

7

A41854

INDICATOR

POINTER hub adjustment

1шт.

8

A41856

O-RING,3mm Thk x 75mm ID

2-61/64 x 3-3/16 x 1/8"

1шт.

13

A44259

SCREW

pump stop control cable lock

1шт.

14

A43347

BOWL

filter

1шт.

15

A43346

GASKET

bowl

1шт.

16

A43350

CLAMP

BAIL bowl

1шт.

17

A43348

NUT

bail, retaining

1шт.

18

A43349

STUD

bail nut

1шт.

19

A43344

FILTER, ELEMENT

ELEMENT filter

1шт.

20

A43345

SPRING

element retaining

1шт.

21

A43351

SEAL

port, copper gasket

2шт.

22

A43343

CARTRIDGE

PRIMER ASSY. hand pump, Includes Ref. 23

1шт.

23

A45342

GASKET

primer pump, rubber, Replaces A44761

1шт.

30

222-42

ELBOW,90 Degree, 1/2"-24 Fem x 1/8"-27 NPTF

ASSY., 1/4" tube x 1/4" P.T., 90 deg., Includes Ref. 31 and 32

2шт.

31

222-102

SLEEVE,1/4" Tube

1шт.

32

87017024

TUBE NUT,1/2"-24

NUT, for 1/4" tube

1шт.

33

A136903

TUBE

oil, Serial Range: gallery-pump

1шт.
