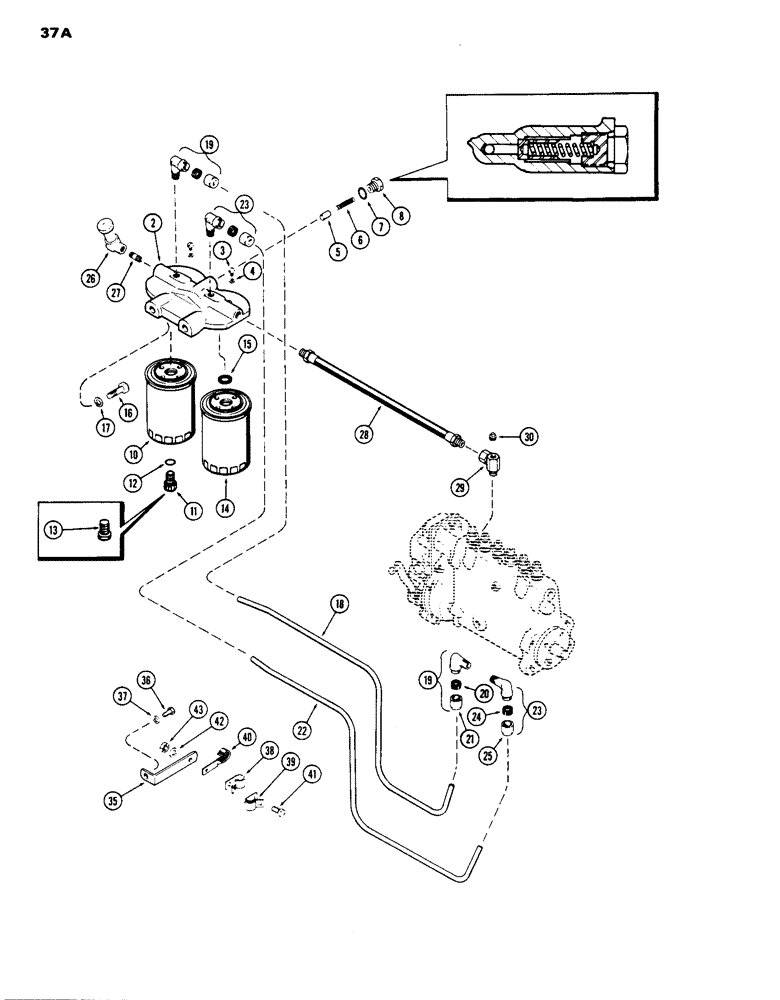

Запчасти Case IH 1070 (037A) - FUEL INJECTION FILTER SYSTEM, (451B) DIESEL ENGINE, USED PRIOR TO ENG. NO. 2323001 (03) - FUEL SYSTEM

A58719

FILTER

ASSY., 1st and 2nd stage, Includes Ref. 2 - 8

1шт.

2

A58711

FILTER

HEAD filter

1шт.

3

A20663

SCREW,Fil Hd, #10 - 32 x 5/16"

air bleed

2шт.

4

66619

WASHER bleed screw, Replaces A20662

2шт.

5

A24917

PLUNGER

relief valve

1шт.

6

A24918

SPRING

relief valve

1шт.

7

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

plug, 1/2 x 11/16 x 3/32"

1шт.

8

24916

PLUG relief valve

1шт.

CASA41745

FUEL FILTER

KIT element, spin-on filters, Includes Ref. 10 - 15

1шт.

10

NSS

NOT SOLD SEPARAT

FILTER 1st stage, Includes Ref. 11, 12 and 13

1шт.

11

G49080

PLUG

plastic, 3/8" N.F. 12 pt. hd.

1шт.

12

A27891

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

plastic plug, 3/8 x 9/16 x 9/32"

1шт.

13

221-1661

PLUG

1/8" hex. hd. pipe

1шт.

14

NSS

NOT SOLD SEPARAT

FILTER 2nd stage, Includes Ref. 15

1шт.

15

A42315

GASKET

2nd stage filter

1шт.

16

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

17

92-6

LOCK WASHER,3/8"

2шт.

18

A58714

TUBE

1st, Serial Range: stage-pump

1шт.

19

222-47

ELBOW,90 Degree, 5/8"-24 Fem x 1/4"-27 NPTF

ASSY. fuel line, Includes Ref. 20 and 21

2шт.

20

222-104

SLEEVE,3/8" Tube

for 3/8" Tube

1шт.

21

222-114

NUT,5/8"-24

NUT, for 3/8" tube

1шт.

22

A58715

TUBE

pump to 2nd stage

1шт.

23

222-45

ELBOW,90 Degree, 9/16"-24 Fem x 1/4"-27 NPTF

ASSY. fuel line, Includes Ref. 24 and 25

2шт.

24

222-103

SLEEVE,5/16" Tube

1шт.

25

222-113

TUBE NUT,9/16"-24

NUT, for 5/16" tube

1шт.

26

A60042

PUMP

hand primer

1шт.

26

A60042R

REMAN-FUEL LIFT PUMP

Hand Primer

1шт.

26

A60042C

CORE-FUEL LIFT PUMP

Return Number

1шт.

27

221-131

PIPE,Nipple, 1/4" NPT x 1"

NIPPLE, 1/4 P.T. x 1"

1шт.

28

A65564

HOSE,9.53mm ID x 390.65mm L, SAE 100R6

filter head to pump, Replaces A58716

1шт.

29

A20539

FITTING

UNION switch, in injection pump

1шт.

30

221-1

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG pipe, 1/8" sq. hd.

1шт.

35

A64856

BRACKET

tubes to block, Replaces A58718

1шт.

36

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

1шт.

37

92-6

LOCK WASHER,3/8"

1шт.

38

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

CLIP, for 5/16" tube

1шт.

39

A62209

CLAMP,5/16", Insul, 1/4" Bolt

CLIP, for 3/8" tube

1шт.

40

A59112

CLIP hose

1шт.

41

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

1шт.

42

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

43

25-104

NUT,1/4"-20, G5

1шт.
