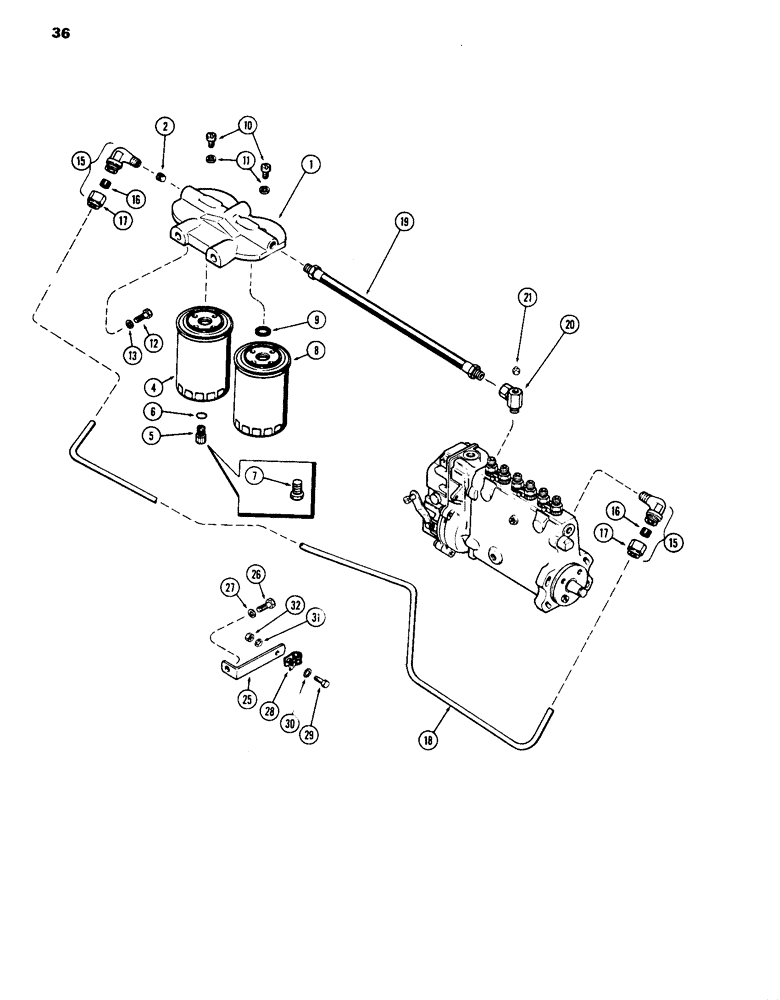

Запчасти Case IH 1070 (036) - FUEL INJECTION FILTER SYSTEM, (451B) DIESEL ENGINE, 1ST USED ENG. SER. NO. 2323001 (03) - FUEL SYSTEM

1

A62339

HEAD

ASSY. fuel filter, Includes Ref. 2

1шт.

2

221-41

PLUG

1/8" P.T. sltd. hdless

1шт.

CASA41745

FUEL FILTER

KIT element, filter replacement, Includes Ref. 4 - 9

1шт.

4

NSS

NOT SOLD SEPARAT

FILTER 1st stage, Includes Ref. 5, 6 and 7

1шт.

5

G49080

PLUG

plastic, 3/8" N.F. 12 pt. hd.

1шт.

6

A27891

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

plastic plug, 3/8 x 9/16 x 9/32"

1шт.

7

221-1661

PLUG

1/8" P.T. hex. hd.

1шт.

8

NSS

NOT SOLD SEPARAT

FILTER 2nd stage, Includes Ref. 9

1шт.

9

A42315

GASKET

, Serial Range: filter-head

1шт.

10

A20663

SCREW,Fil Hd, #10 - 32 x 5/16"

filter head bleed

2шт.

11

A66619

WASHER

bleed screw, Replaces A20662

2шт.

12

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

13

92-6

LOCK WASHER,3/8"

2шт.

15

222-45

ELBOW,90 Degree, 9/16"-24 Fem x 1/4"-27 NPTF

ASSY., 1/4" P.T., 5/16" tube, Includes Ref. 16 and 17

2шт.

16

222-103

SLEEVE,5/16" Tube

1шт.

17

222-113

TUBE NUT,9/16"-24

NUT, for 5/16" tube

1шт.

18

A62342

TUBE

pump to 1st stage filter

1шт.

19

A65564

HOSE,9.53mm ID x 390.65mm L, SAE 100R6

filter head to pump, Replaces A58716

1шт.

20

A20539

FITTING

UNION switch, in injection pump

1шт.

21

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG, 1/8" P.T. sq. hd.

1шт.

25

A64856

BRACKET

tubes to block, Replaces A58718

1шт.

26

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

1шт.

27

92-6

LOCK WASHER,3/8"

1шт.

28

62209

CLIP, for 5/16" tube

1шт.

29

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

1шт.

30

193-8

LOCK WASHER,Ext Tooth, 1/4"

WASHER, LOCK, Ext Tooth, 1/4"

1шт.

31

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

32

25-104

NUT,1/4"-20, G5

1шт.
