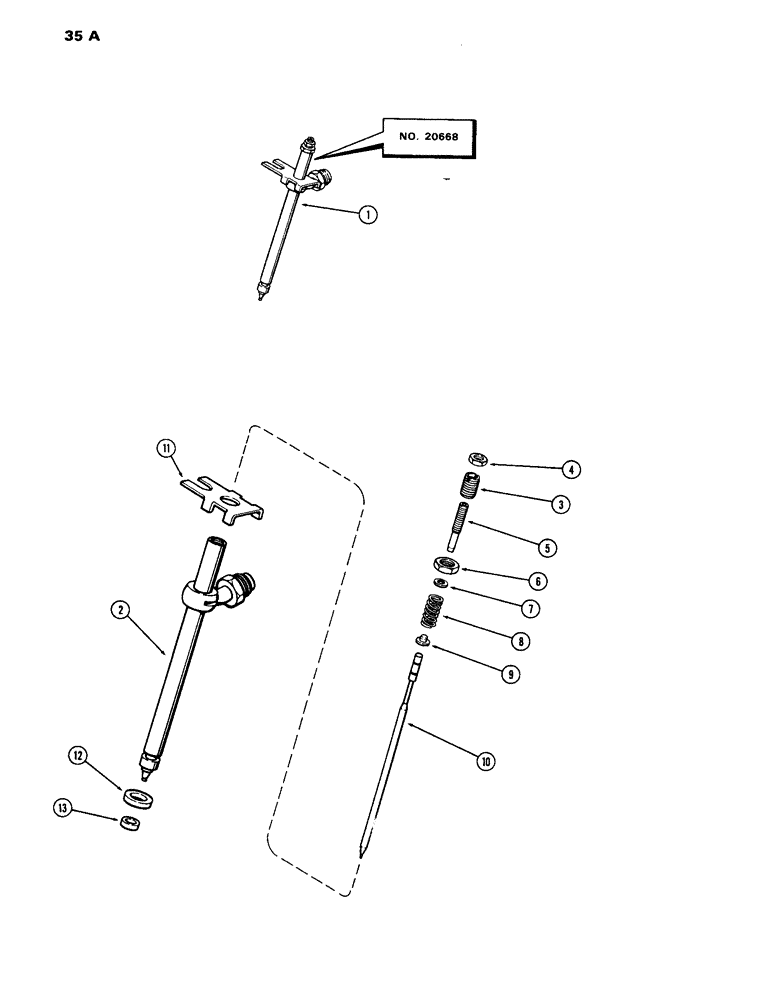

Запчасти Case IH 1070 (035A) - FUEL INJECTION NOZZLE, (451B) DIESEL ENGINE (03) - FUEL SYSTEM

1

A138322

NOZZLE CAP

NOZZLE ASSY. fuel injection, Includes Ref. 2 - 13, supplier's no. 20668 stamped on body, color coded red, Replaces A62809 and A58694

6шт.

A138322R

REMAN-INJECT NOZZLE

1070 (PRIOR TO S/N 8675001 (1/69-12/78)

6шт.

A138322C

CORE-NOZZLE, INJECT

Return Number

1шт.

2

NSS

NOT SOLD SEPARAT

BODY nozzle

1шт.

3

A45292

SCREW

pressure adjusting

1шт.

4

A43602

NUT

lock, lift adjusting, no. 10 - 56 hex.

1шт.

5

A45293

ADJUSTMENT SCREW

SCREW lift adjusting

1шт.

6

A42424

LOCK NUT

lock, pressure adjusting, 5/16" - 48 hex.

1шт.

7

NLS

NO LONGER SERVICED

SEAT pressure adjusting spring, upper

1шт.

8

A45290

SPRING

pressure adjusting, 21/32" free length

1шт.

9

A45289

SEAT

pressure adjusting spring, lower

1шт.

10

NSS

NOT SOLD SEPARAT

VALVE nozzle

1шт.

11

A41768

PLATE

nozzle locating

1шт.

12

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

plain

1шт.

13

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

carbon stop

1шт.
