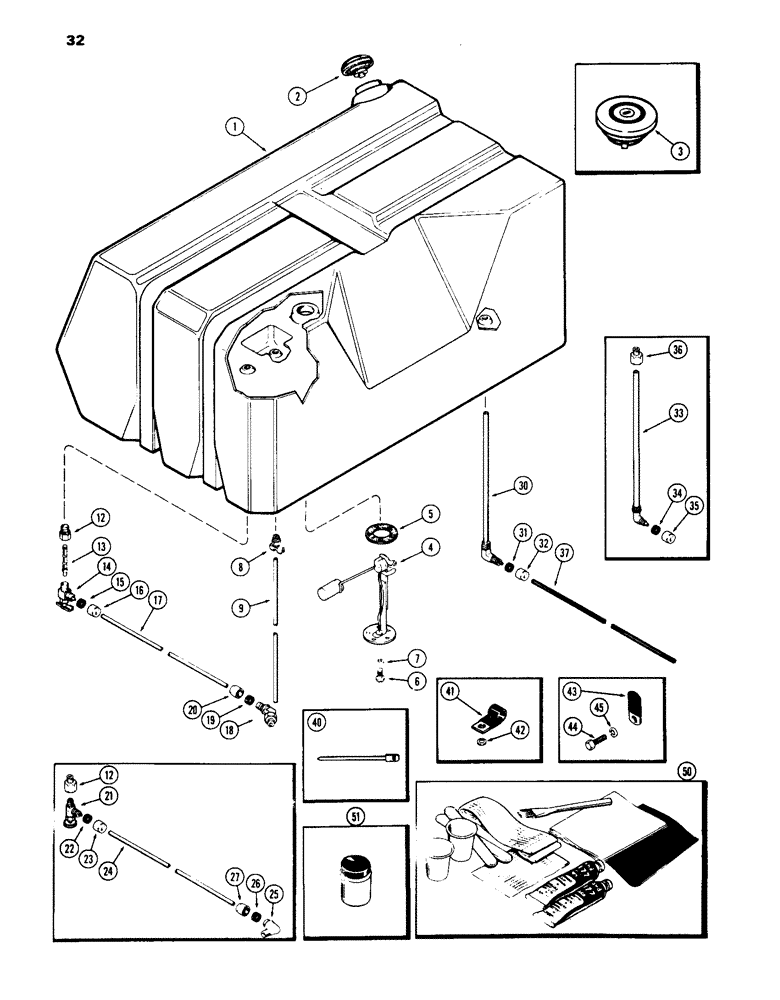

Запчасти Case IH 1070 (032) - FUEL TANK & LINES, (451B) DIESEL ENGINE (03) - FUEL SYSTEM

1

A66820

TANK

fuel, return port, Replaces A59490, 1/4" P.T.

1шт.

1

A59490

FUEL TANK

TANK fuel, return port, Order A66820, 3/8" P.T.

1шт.

2

A32119

CAP

fuel tank filler, w/o lock

1шт.

3

A32120

CAP

fuel tank filler, w/ lock

1шт.

4

A62092

UNIT

fuel gauge sending, Replaces A59491

1шт.

5

A11822

GASKET

sending unit

1шт.

6

173-221

SCREW,Sl Rnd Hd, #10 - 32 x 7/16"

no. 10 - 32 x 7/16" N.F. rd. hd. mach.

5шт.

7

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

5шт.

8

217-107

VALVE

drain cock

1шт.

9

A22988

HOSE,0.25" ID x 15.00", SAE SC716 CS

- Water trap drain, Nylon 0.25" ID x 15.00", SAE SC716 CS

1шт.

12

217-2

ADAPTER,1/4"-18 Fem NPTF x 1/4"-18 NPTF Male

1/4 x 1/4"

1шт.

13

A64596

STRAINER ELEMENT

FILTER fuel, Replaces A62353

1шт.

14

A62354

VALVE

ASSY. fuel outlet and shut-off, Includes Ref. 15 and 16

1шт.

15

222-5186

SLEEVE,3/8" Tube

for 3/8" Tube

1шт.

16

222-5181

NUT,9/16"-24

NUT, for 3/8" tube

1шт.

17

A62320

TUBE

tank outlet, Replaces A60723

1шт.

18

222-5140

FITTING,45 Degree, 17/32"-24 x 1/4" NPT

ELBOW ASSY. 45 degrees, to hand primer pump, Includes Ref. 19 and 20

1шт.

19

222-5186

SLEEVE,3/8" Tube

for 3/8" Tube

1шт.

20

222-5181

NUT,9/16"-24

NUT, for 3/8" tube

1шт.

21

217-278

FITTING

VALVE ASSY. fuel outlet and shut-off, Order A62354, Includes Ref. 22 and 23

1шт.

22

222-5186

SLEEVE,3/8" Tube

for 3/8" Tube

1шт.

23

222-5181

NUT,9/16"-24

NUT, for 3/8" tube

1шт.

24

A60723

BASE PLATE

TUBE tank outlet to engine, Order A62320

1шт.

25

222-5111

ELBOW,9/16"-24 x 1/8" NPTF

ASSY. 90 degrees, hand primer pump, Includes Ref. 26 and 27

1шт.

26

222-5186

SLEEVE,3/8" Tube

for 3/8" Tube

1шт.

27

222-5181

NUT,9/16"-24

NUT, for 3/8" tube

1шт.

30

A65893

PIPE

ASSY. fuel tank return port, 1/4" P.T. thrd., used w/ A66820 fuel tank, Includes Ref. 31 and 32

1шт.

30

A62274

FITTING

PIPE ASSY. fuel tank return port, Replaces A60724, used w/ A59490 fuel tank, 3/8" P.T. thrds., Includes Ref. 31 and 32

1шт.

31

222-5185

SLEEVE,1/4" Tube

for 1/4" Tube

1шт.

32

222-5180

TUBE NUT,7/16"-24

for 1/4" tube 7/16"-24

1шт.

33

A60724

ELBOW

PIPE ASSY. fuel tank return port, requires adapter, Order A62274, Includes Ref. 34 and 35

1шт.

34

222-5185

SLEEVE,1/4" Tube

for 1/4" Tube

1шт.

35

222-5180

TUBE NUT,7/16"-24

for 1/4" tube 7/16"-24

1шт.

36

217-4

ADAPTER,3/8"-18 Fem NPTF x 3/8"-18 NPTF Male

3/8 x 3/8", used w/ A60724 fuel tank pipe

1шт.

37

A60722

TUBE

injector to return port, 3/16" I.D. x 102" nylon

1шт.

40

L11541

CABLE TIE,203.2mm L, Nylon

STRAP tube

2шт.

41

A57061

CLIP

tube

1шт.

42

195-104

WASHER,3/8"

clip, 7/16 x 1 x 3/32"

1шт.

50

A44265

KIT

fuel tank repair, Order A44266

1шт.

51

A44266

KIT

adhesive, fuel tank repair

1шт.
