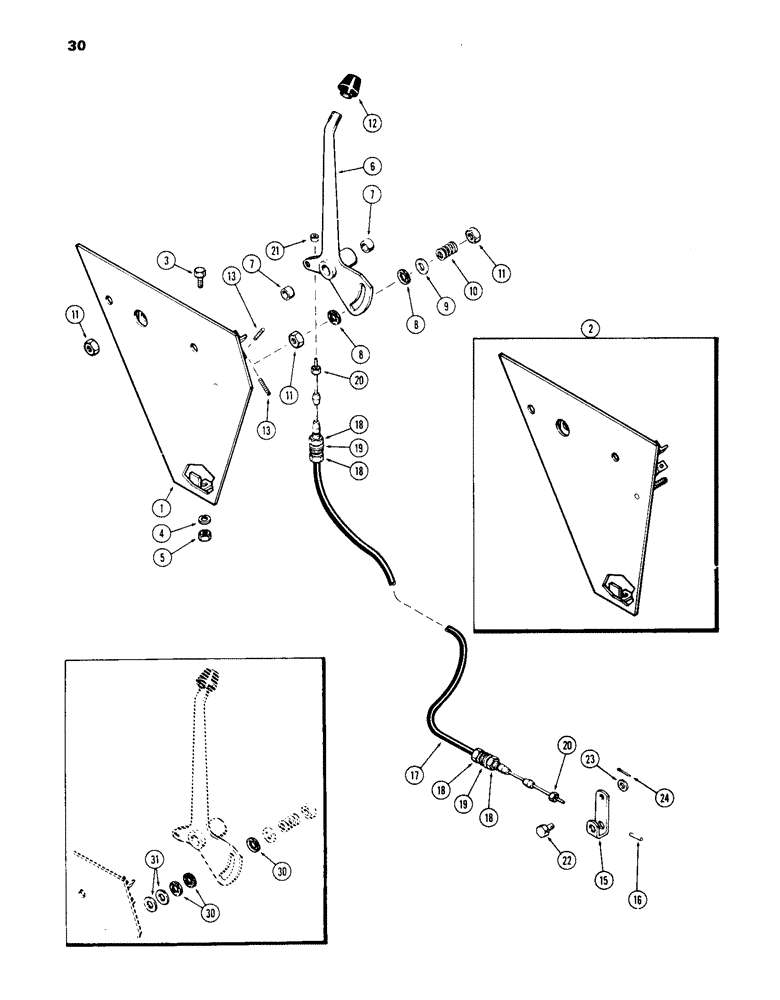

Запчасти Case IH 1070 (030) - THROTTLE CONTROLS, (451B) DIESEL ENGINE, HAND THROTTLE (03) - FUEL SYSTEM

1

A62420

PLATE

ASSY. console front shaft support, 1st used trac. serial no. 8670148

1шт.

2

A61038

PLATE

ASSY. console front shaft support, used prior to trac. serial no. 8670148

1шт.

3

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

1шт.

4

193-46

LOCK WASHER,Ext-Int Tooth, 3/8"

WASHER shakeproof, 3/8" int./ext.

1шт.

5

25-106

NUT,3/8"-16, G5

3/8" N.C. hex.

1шт.

6

A61074

LEVER ASSY. hand throttle, Includes Ref. 7

1шт.

7

A59429

BUSHING,15.95mm ID x 19.13mm OD x 12.83mm L

lever, bronze, 5/8 x 3/4 x 1/2"

2шт.

8

A61069

DISC

friction

2шт.

9

195-2035

WASHER,7/16" x 1 1/4" x .083"

7/16 x 1-1/4 x 14 ga.

1шт.

10

A26546

SPRING

friction disc

1шт.

11

13-1114

NUT, 3/8" N.C., jam

3шт.

12

A62078

KNOB

lever, Replaces A23885

1шт.

13

A61105

SCREW,1/4" - 20 x 1.20", Mild Steel

1/4 x 1-1/2" N.C. slotted Nylock set, Order A59433

2шт.

15

A61702

LEVER

throttle override, Replaces A59164

1шт.

16

138-100

LOCK PIN,3/16" x 1 1/2", Slotted

PIN, 3/16" x 1 1/2", Slotted

1шт.

17

A59434

CABLE

hand throttle, Includes Ref. 18, 19 and 20

1шт.

18

25-157

JAM NUT,Jam, 7/16"-20, G5

7/16" N.F. hex., jam

4шт.

19

193-31

LOCK WASHER,Int Tooth, 7/16"

WASHER shakeproof, 7/16" int.

4шт.

20

129-27

NUT,Hex, #10 - 32

no. 10 N.F. hex., jam

2шт.

21

193-1000

NUT,Keps, w/LW,#10-32

no. 10 N.F. hex., jam

1шт.

22

A61703

PIVOT

throttle, Replaces A59251

1шт.

23

95-5

WASHER,3/8" x 7/8" x .083"

3/8 x 7/8 x 5/64"

1шт.

24

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

1шт.

30

A61069

DISC

friction, use as required to obtain correct throttle lever pressure adjustment

1шт.

31

195-2035

WASHER,7/16" x 1 1/4" x .083"

7/16 x 1-1/4 x 14 ga.

1шт.
