Запчасти Case IH 1070 (028) - ENGINE GASKET KITS, (451B) DIESEL ENGINE (02) - ENGINE

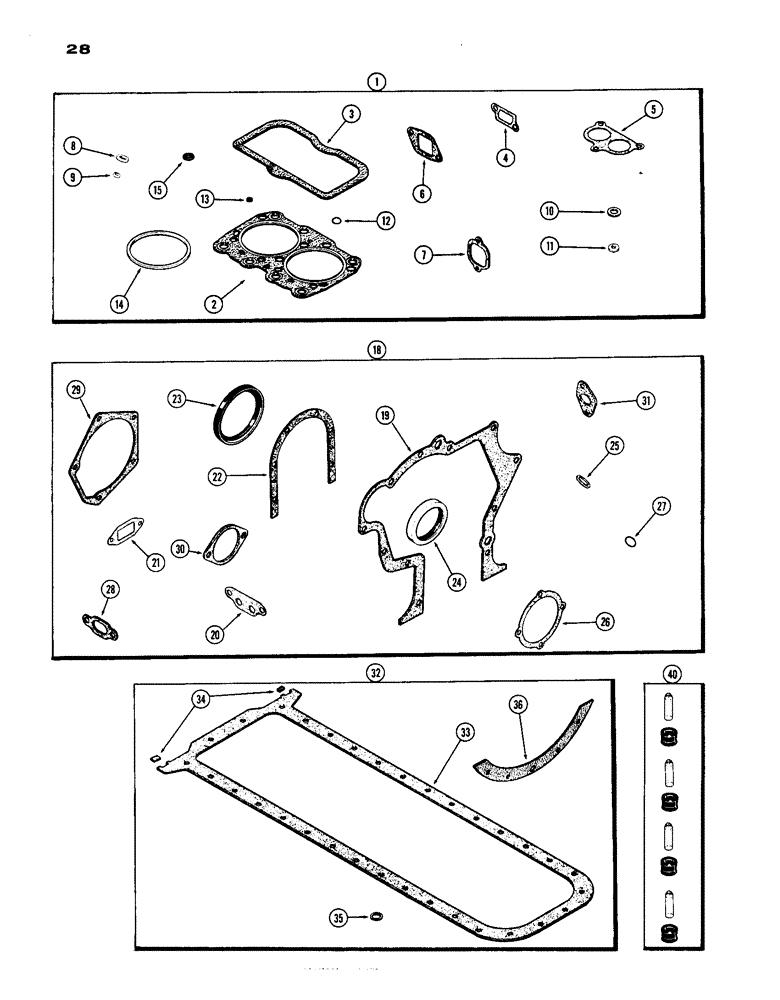

Схема запчастей Case IH 1070 - (028) - ENGINE GASKET KITS, (451B) DIESEL ENGINE (02) - ENGINE
9
24
25
30
18
40
12
31
10
34
26
2
23
28
11
19
22
14
29
36
21
6
5
35
4
15
1
7
33
3
13
32
20
8
27

Артикул

Название

Примечание

Количество

1

A44085

GASKET

KIT gasket, valve grind, Replaces A42892 and A43077, Includes Ref. 2 - 15, for complete engine overhaul order (1) A44085, (1) A42096, (1) A43006 and (3) M20614

1шт.

2

138121

GASKET cylinder head, w/ fire rings

3шт.

3

A65734

CYLINDER HEAD GASKET

cylinder head cover, Replaces A58928

3шт.

4

A58637

MANIFOLD GASKET

water manifold

3шт.

5

A58639

GASKET

thermostat housing

1шт.

6

A58662

MANIFOLD GASKET

intake manifold

6шт.

7

A58895

GASKET

exhaust manifold

6шт.

8

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

injector nozzle

6шт.

9

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

carbon stop, injector nozzle

6шт.

10

A58635

GASKET,17.27mm ID x 32mm OD x 6.6mm Thk

breather tube

3шт.

11

A23684

GASKET

GASKET cover studs

6шт.

12

A34133

GASKET

breather screw

3шт.

13

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

rocker shaft oil tube

3шт.

15

A58628

SEAL,8mm ID x 13.77mm OD x 2.16mm Thk

exhaust and intake valve

12шт.

18

A42096

GASKET

KIT gasket, cylinder block, Includes Ref. 19 - 31, for complete engine overhaul order (1) A44085, (1) A42096, (1) A43006 and (3) M20614

1шт.

19

A58612

GASKET

timing gear cover

1шт.

20

A58756

OIL PAN GASKET SET

oil filter base, not applicable

1шт.

21

A58646

GASKET

water pump body

1шт.

22

A32830

GASKET

rear seal retainer

1шт.

23

A62050

OIL SEAL

crankshaft rear

1шт.

24

A62049

OIL SEAL

crankshaft front oil

1шт.

25

A58613

SEALING WASHER

GASKET timing window plug

1шт.

26

A58649

GASKET

water pump, Serial Range: body-block

1шт.

27

A64434

O-RING,0.93" ID x 1.142" x 0.106"

oil filter base

3шт.

28

A58615

GASKET

fuel pump gear cover

1шт.

29

58617

GASKET pump mounting cover

1шт.

30

A58670

GASKET

oil cooler water opening cover

1шт.

31

A58680

OIL PAN GASKET SET

oil cooler tube to water pump, not applicable

1шт.

32

A43006

GASKET KIT

KIT gasket, oil pan, Includes Ref. 33 - 36, for complete engine overhaul order (1) A44085, (1) A42096, (1) A43006 and (3) M20614

1шт.

33

NSS

NOT SOLD SEPARAT

GASKET oil pan, Order Ref. 32

1шт.

34

A62402

GASKET

oil pan rear corners

2шт.

35

A58608

GASKET

oil pan drain plug

1шт.

36

A57966

GASKET

turque converter

1шт.

40

M20614

SEAL KIT

SET valve seal

3шт.

Выбрано товаров: 34
