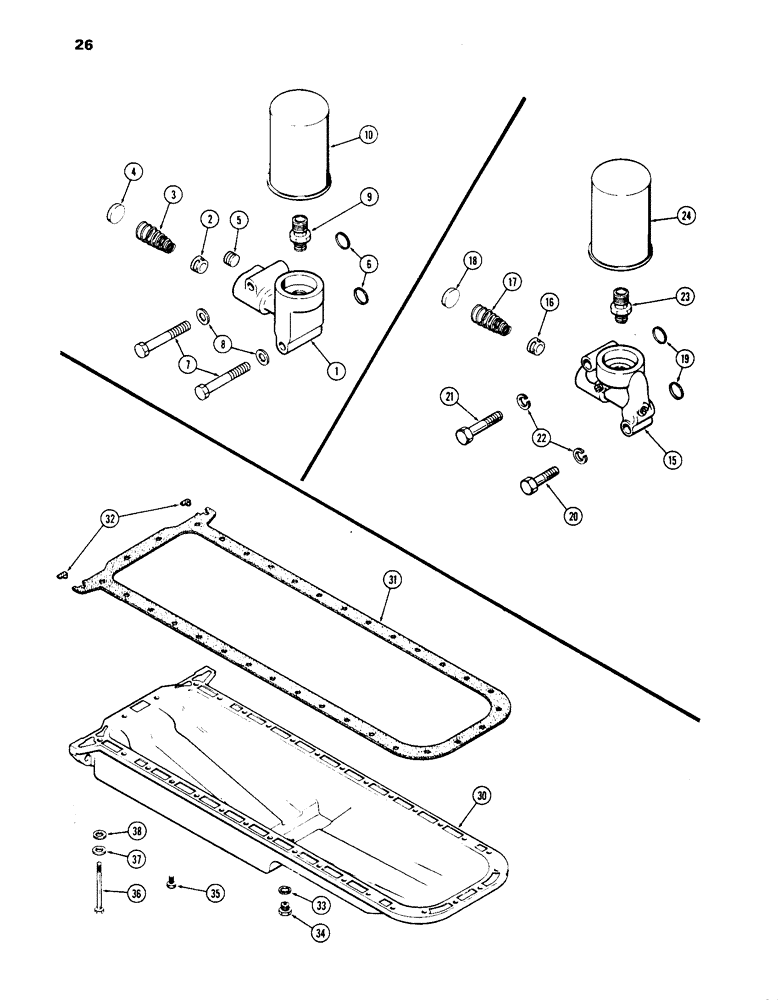

Запчасти Case IH 1070 (026) - OIL FILTER, (451B) DIESEL ENGINE (02) - ENGINE

1

A65849

BASE

ASSY. oil filter, Replaces A58830, Order A144773, Includes Ref. 2 - 5

1шт.

2

A21090

VALVE

relief, filter

1шт.

3

A58669

SPRING

relief valve

1шт.

4

41-1020

PLUG,Cup, 1 1/4"

relief valve, 1-17/64" cup

1шт.

5

221-844

PLUG,Hex Soc, 1/2"-14

1/2" P.T. hex. sckt. hd.

1шт.

6

A64434

O-RING,0.93" ID x 1.142" x 0.106"

15/16 x 1-5/16 x 17/64"

2шт.

7

13-860

BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 5

2шт.

8

195-33

WASHER,1/2"

17/32 x 1-1/16 x 3/32"

2шт.

9

A58671

ADAPTER

element to base, Order A63916

1шт.

10

A58672

FILTER

ELEMENT oil, Order A75294

1шт.

15

A58830

BASE

ASSY. oil filter, Order A65849, Includes Ref. 16, 17 and 18

1шт.

16

A21090

VALVE

relief, filter

1шт.

17

A58669

SPRING

relief valve

1шт.

18

41-1020

PLUG,Cup, 1 1/4"

relief valve, 1-17/64" cup type

1шт.

19

A64434

O-RING,0.93" ID x 1.142" x 0.106"

15/16 x 1-15/16 x 17/64"

2шт.

20

13-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

1/2 x 2-1/2" N.C. hex.

1шт.

21

13-850

BOLT,Hex, 1/2" - 13 x 3-1/8", Gr 5

1/2 x 3-1/4" N.C. hex.

1шт.

22

92-8

LOCK WASHER,1/2"

2шт.

23

A58671

ADAPTER

element to base, Order A63916

1шт.

24

A58672

FILTER

ELEMENT filter, oil, Order A75294

1шт.

30

A63907

PAN

oil, Replaces A58850

1шт.

31

NSS

NOT SOLD SEPARAT

GASKET oil pan, See Figure 28

1шт.

32

A62402

GASKET

oil pan corners

2шт.

33

A58608

GASKET

oil pan drain plug

1шт.

34

A14280

PLUG

oil pan drain

1шт.

35

193-527

WASHER,Hex, 3/8" - 16 x 1 1/4"

BOLT, 3/8 x 1-1/4" N.C. sems, oil pan

28шт.

36

A57436

BOLT

3/8 x 5-3/4" N.C. hex., spec., oil pan

2шт.

37

A22317

WASHER

copper, 25/64 x 11/16 x 18 ga., oil pan

2шт.

38

A7085

WASHER

copper, 25/64 x 9/16 x 18 ga., oil pan

2шт.
