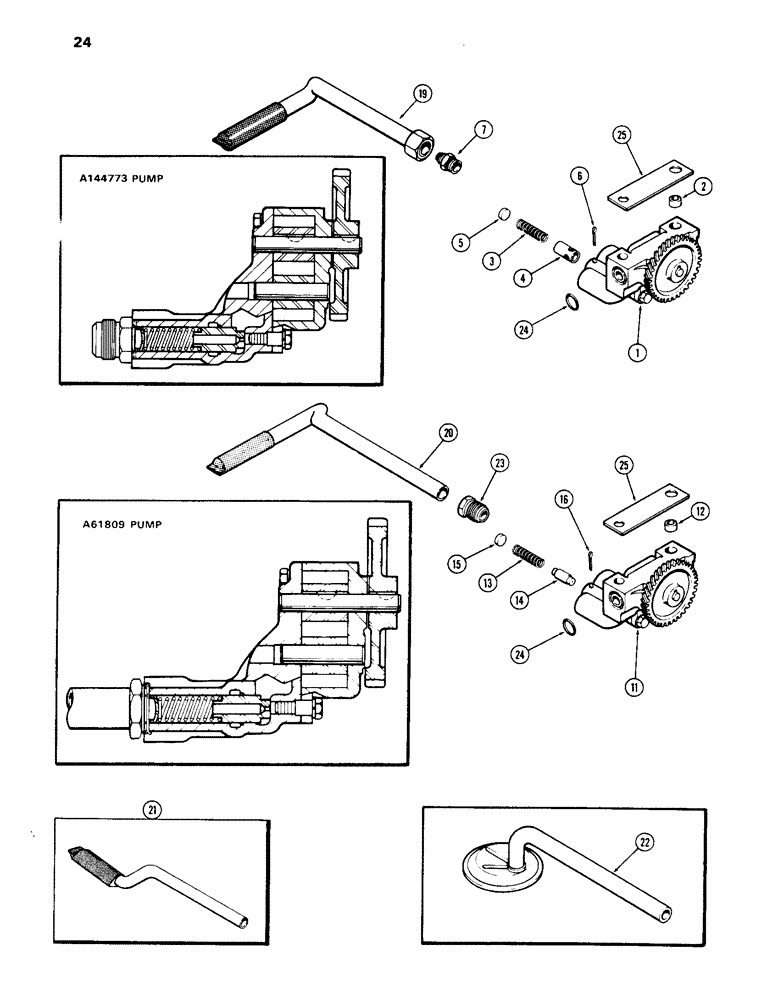

Запчасти Case IH 1070 (024) - OIL PUMP, (451B) DIESEL ENGINE (02) - ENGINE

1

A144773

PUMP

ASSY. oil, Replaces A61809 and A65080, Includes Ref. 2 - 7

1шт.

2

A58915

SLEEVE

pump body

1шт.

3

A59111

SPRING

relief valve

1шт.

4

A65083

VALVE

relief

1шт.

5

41-1011

PLUG,Cup, 11/16"

45/64" cup

1шт.

6

132-32

COTTER PIN,3/32" x 1 1/2"

Pin, Split (Cotter), 3/32" x 1 1/2"

1шт.

7

A142004

CONNECTOR, ELEC

CONNECTOR oil pump screen tube

1шт.

11

A61809

PUMP

ASSY. oil, Replaces A58598, Order A144773, Includes Ref. 12 - 16

1шт.

12

A58915

SLEEVE

pump body

1шт.

13

A59111

SPRING

relief valve

1шт.

14

A34992

PISTON

VALVE relief

1шт.

15

41-1011

PLUG,Cup, 11/16"

relief valve, 45/64" cup type, Replaces A34951

1шт.

16

132-32

COTTER PIN,3/32" x 1 1/2"

Pin, Split (Cotter), 3/32" x 1 1/2"

1шт.

19

A142449

TUBE

ASSY. oil suction, w/ screen

1шт.

20

A66174

TUBE

ASSY. oil suction, w/ screen, Replaces A62911 and A58847, Order A142449 and A142004

1шт.

21

A62911

SCREEN

TUBE ASSY. oil suction, w/ screen, Order A142449 and A142004

1шт.

22

A58847

SCREEN

TUBE ASSY. oil suction, w/ screen, Order A142449 and A142004

1шт.

23

222-510

TUBE NUT,1 1/4"-18

NUT tube, 1" inverted flare

1шт.

24

A64434

O-RING,0.93" ID x 1.142" x 0.106"

pump to block

1шт.

25

A58859

SHIM,.005" Thk

Oil pump .005" Thk

1шт.
