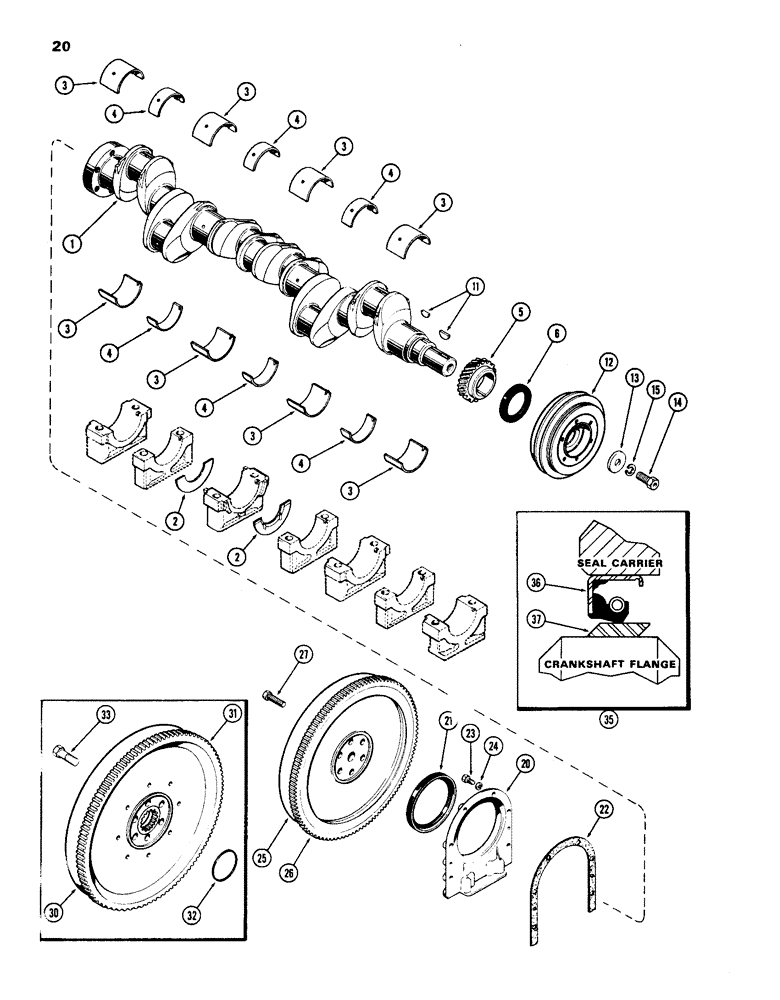

Запчасти Case IH 1070 (020) - CRANKSHAFT AND FLYWHEEL (02) - ENGINE

1

A58860

CRANKSHAFT

engine, Order A136106

1шт.

2

A62573

THRUST WASHER,88.06mm ID x 114.3mm OD x 4.7mm Thk

WASHER thrust, 0.185", Replaces A58786

2шт.

2

A42932

BEARING WASHER,87.81mm ID x 114.55mm OD x 4.88mm Thk

WASHER thrust, 0.191"

2шт.

3

A41987

LINING

LINER main bearing, wide, std., Order A43163

4шт.

3

A42191

LINING

LINER main bearing, wide, 0.002", Order A43164

4шт.

3

A42192

BEARING LINER

LINER main bearing, wide, 0.010", Order A43165

4шт.

3

A42193

LINER

main bearing, wide, 0.020", Order A43166

4шт.

3

A42194

LINING

LINER main bearing, wide, 0.030", Order A43167

4шт.

4

A20394

LINING

LINER main bearing, narrow, std., Order A43158

3шт.

4

A20579

LINING

LINER main bearing, narrow, 0.002", Order A43159

3шт.

4

A20582

LINING

LINER main bearing, narrow, 0.010", Order A43160

3шт.

4

A20585

KIT

LINER main bearing, narrow, 0.020", Order A43161

3шт.

4

A20588

KIT

LINER main bearing, narrow, 0.030", Order A43162

3шт.

5

A58573

GEAR

crankshaft front

1шт.

6

A62049

OIL SEAL

crankshaft front, 2-5/8 x 3-5/8 x 29/64"

1шт.

11

126-129

WOODRUFF KEY,#C, 5/16" x 1 1/8", HT

2шт.

12

A58871

FAN

PULLEY fan drive

1шт.

13

A27903

WASHER

drive pulley

1шт.

14

88112

BOLT,Hex, 5/8" - 18 x 1 1/2", Gr 5

Drive pulley Hex, 5/8"-18 x 1 1/2", G5

1шт.

15

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

20

A57457

RETAINER

crankshaft rear oil seal

1шт.

21

A62050

OIL SEAL

crankshaft rear, 4-11/16 x 5-3/4 x 1/2", See Ref. 35

1шт.

22

A32830

GASKET

retainer

1шт.

23

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

6шт.

24

92-6

LOCK WASHER,3/8"

6шт.

25

A59034

FLYWHEEL ASSY. power shift, w/o spline, Includes Ref. 26

1шт.

26

A58778

GEAR

ring, 139T

1шт.

27

114-621

BOLT

5/8 x 1-3/4" N.C. hex.

6шт.

30

A58934

FLYWHEEL

ASSY. mechanical shift, w/spline , Includes Ref. 31

1шт.

31

A58778

GEAR

ring, 139T

1шт.

32

A27996

O-RING,0.139" Thk x 2.734" ID, -232, Cl 5, 75 Duro

flywheel to crankshaft, 2-3/4 x 3 x 1/8"

1шт.

33

114-622

X

BOLT, 5/8 x 2" N.F. hex.

6шт.

35

A43194

KIT

crankshaft wear seal, Includes Ref. 36 and 37

1шт.

36

NSS

NOT SOLD SEPARAT

SEAL crankshaft rear oil

1шт.

37

NSS

NOT SOLD SEPARAT

SLEEVE oil seal wear

1шт.
