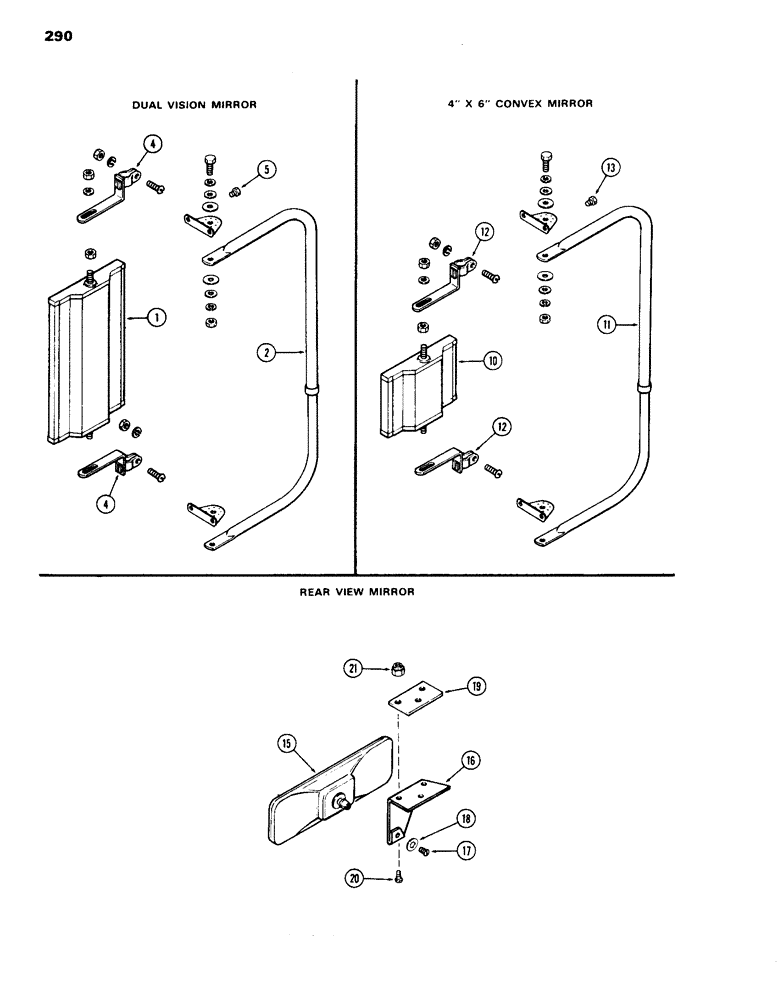

Запчасти Case IH 1070 (290) - MIRRORS, DUAL VISION (09) - CHASSIS/ATTACHMENTS

A61895

ATTACHMENT

mirror, machinery item, Includes Ref. 1 - 5

1шт.

NSS

NOT SOLD SEPARAT

MIRROR ASSY. dual vision, Order A61895, Includes Ref. 1, 2 and 4

1шт.

1

A42765

MIRROR

dual vision

1шт.

2

A42764

BRACKET

mirror swing away

1шт.

4

A42767

ADAPTER

mirror bracket, Replaces A42766

2шт.

5

187-1021

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 3/8"

BOLT, 1/4 x 3/8" hex., shakeproof

4шт.

A61897

KIT

ATTACHMENT mirror, machinery item, Includes Ref. 10 - 13, 4 x 6 convex

1шт.

NSS

NOT SOLD SEPARAT

MIRROR ASSY., Order A61897, Includes Ref. 10, 11 and 12

1шт.

10

A42768

MIRROR

4 x 6 convex

1шт.

11

A42764

BRACKET

mirror swing away

1шт.

12

A42767

ADAPTER

mirror bracket

2шт.

13

187-1021

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 3/8"

BOLT, 1/4 x 3/8" hex., shakeproof

4шт.

F89785

MIRROR

ATTACHMENT mirror, Includes Ref. 15 - 21, 4 x 6 convex

1шт.

15

F89695

MIRROR

ASSY. rear view

1шт.

16

F63369

BRACKET

mirror mounting

1шт.

17

163-15

SCREW,Hex, #10 - 24 x 5/8"

no. 10 x 5/8" flat hd.

1шт.

18

195-511

WASHER,#10

13/64 x 15/32 x 1/16"

1шт.

19

F63381

PLATE

bracket mounting

1шт.

20

173-237

SCREW,Sl Rnd Hd, #10 - 32 x 1/2"

no. 10 x 1/2" rd. hd.

3шт.

21

86625057

NUT,#10-24, GB

NUT, LOCK, , Esna #10-24, GB

3шт.
