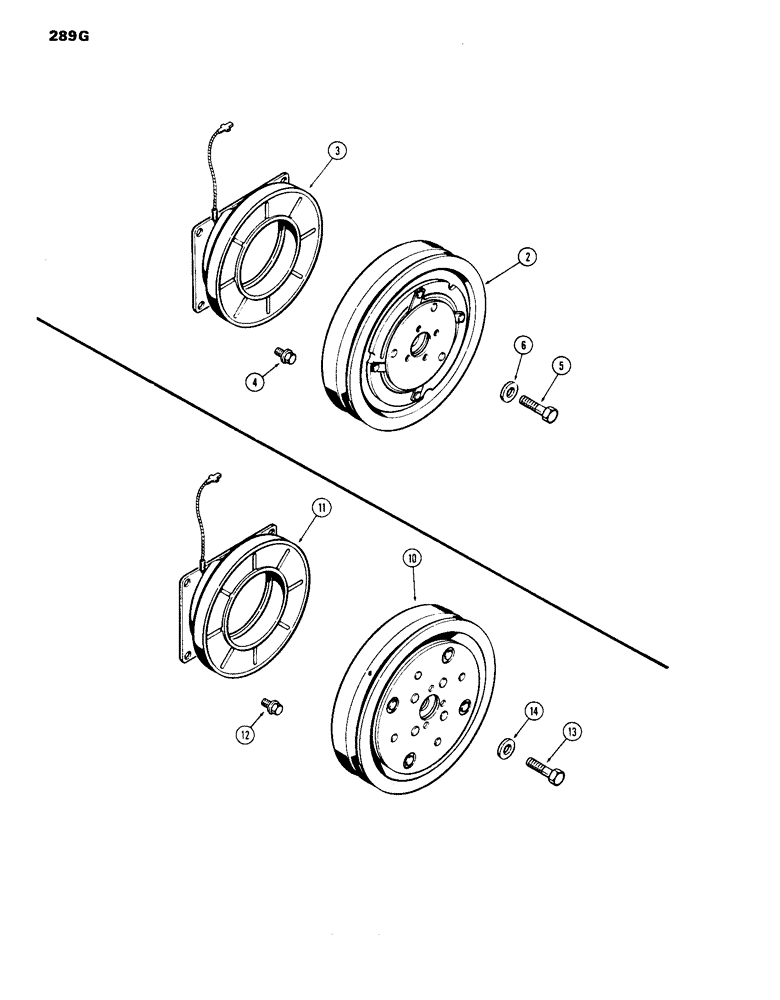

Запчасти Case IH 1070 (289G) - COMPRESSOR CLUTCH (09) - CHASSIS/ATTACHMENTS

A66058

CLUTCH

ASSY., Warner Electric no. I-1436-12, Replaces A61149, Includes Ref. 2 - 6

1шт.

2

NSS

NOT SOLD SEPARAT

PULLEY ASSY. rotor

1шт.

3

A44568

ELECTRIC CLUTCH

FIELD ASSY. pulley

1шт.

4

121-3

SERRATED BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

4шт.

5

114-100

BOLT,Hex, 5/16" - 24 x 1-1/4", Gr 5

5/16 x 1-1/4" N.F. hex

1шт.

6

A27343

BUSHING

SPACER clutch attaching bolt

1шт.

A61149

CLUTCH

ASSY., Warner Electric no. I-405-14, Order A66058, Includes Ref. 10 - 14

1шт.

10

NSS

NOT SOLD SEPARAT

PULLEY ASSY. rotor

1шт.

11

NSS

NOT SOLD SEPARAT

FIELD ASSY. pulley, Order A66058

1шт.

12

113-6

BOLT,Hex, 1/4" - 20 x 3/8", Gr 5, Full Thd

4шт.

13

114-100

BOLT,Hex, 5/16" - 24 x 1-1/4", Gr 5

5/16 x 1-1/4" N.F. hex

1шт.

14

A27343

BUSHING

SPACER clutch attaching bolt

1шт.
