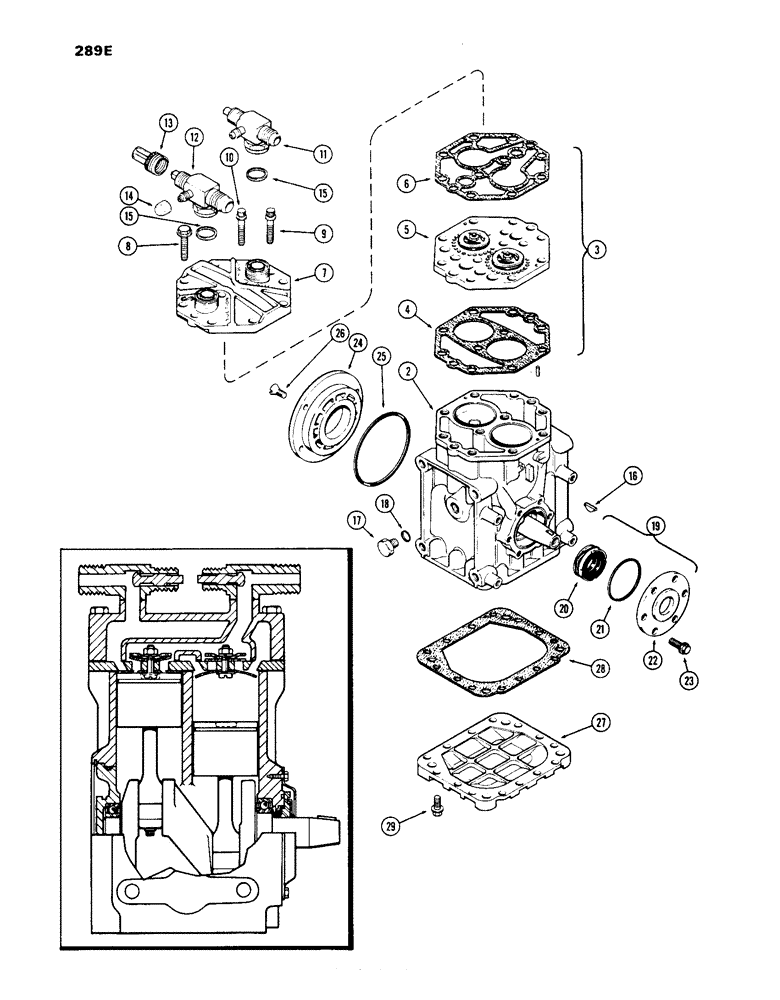

Запчасти Case IH 1070 (289E) - YORK COMPRESSOR (09) - CHASSIS/ATTACHMENTS

A42954

COMPRESSOR ASSY., York no. R210-16979, Order A141060, Includes Ref. 2 - 29

1шт.

417888C93

AIRCOND. COMPRESSOR

Compressor Assy., A/C

1шт.

1924004C2

REMAN-A/C COMPRESSOR

Remanufactured Compressor

1шт.

1924005C1

CORE-A/C COMPRESSOR

Return Number

1шт.

2

NSS

NOT SOLD SEPARAT

CRANKSHAFT ASSY.

1шт.

3

A42945

SPARE PART KIT valve plate, Order A42963, Includes Ref. 4, 5 and 6

1шт.

4

NSS

NOT SOLD SEPARAT

GASKET valve plate to crankcase, Order A42950

1шт.

5

NSS

NOT SOLD SEPARAT

PLATE valve

1шт.

6

NSS

NOT SOLD SEPARAT

GASKET cyl. hd. to valve plate, Order A42950

1шт.

7

NSS

NOT SOLD SEPARAT

HEAD cylinder

1шт.

8

A42949

FLANGE BOLT

BOLT, 5/16 x 1-3/8" N.C. hex., washer hd.

8шт.

9

A42947

SCREW,5/16" - 18 x 1.375", Grade 6, Steel

SPARE PART SCREW, 5/16 x 1-3/8" N.C. ferry hd., 12 pt. cap

2шт.

10

A42948

12 PT SCREW,5/16" - 18 x 1.516", Gr 6

SCREW, 5/16 x 1-17/32" N.C. ferry hd., 12 pt. cap

2шт.

11

A42936

VALVE

VALVE ASSY roto-lock, discharge, 1/2" port

1шт.

12

A42937

VALVE

VALVE ASSY. roto- lock, suction, 5/8" port, Includes Ref. 13 and 14

1шт.

13

A42944

CAP

CAP sleeve, valve stem

2шт.

14

222-981

TUBE NUT,Cap, 3/8"-24, 45 Degree Fl

CAP valve stem

2шт.

15

A42938

GASKET

GASKET roto-lock to cyl. hd.

2шт.

16

A42939

KEY

KEY crankshaft, no. 6 non-rok

1шт.

17

114-210

BOLT,Hex, 3/8" - 24 x 1/2", Gr 5, Full Thd

PLUG crankcase, filler and level

2шт.

18

NSS

NOT SOLD SEPARAT

O-RING filler and level plug, Order A42950

2шт.

19

A42946

KIT

KIT seal, front crankshaft, Includes Ref. 20, 21 and 22

1шт.

20

NSS

NOT SOLD SEPARAT

SEAL crankshaft

1шт.

21

NSS

NOT SOLD SEPARAT

O-RING, Order A42950

1шт.

22

NSS

NOT SOLD SEPARAT

PLATE seal retaining

2шт.

23

A42951

FLANGE BOLT

BOLT, 1/4 x 11/16 N.C. hex., washer hd.

6шт.

24

NSS

NOT SOLD SEPARAT

HOUSING crankcase, rear

1шт.

25

NSS

NOT SOLD SEPARAT

GASKET rear housing, Order A42950

1шт.

26

NSS

NOT SOLD SEPARAT

SCREW rear, Serial Range: hsg.-crankcase

4шт.

27

NSS

NOT SOLD SEPARAT

PLATE crankcase base

1шт.

28

NSS

NOT SOLD SEPARAT

GASKET base plate, Order A42950

1шт.

29

NSS

NOT SOLD SEPARAT

BOLT base, Serial Range: plate-crankcase

12шт.

A42950

GASKET

KIT gasket, complete overhaul, Order A42964, Includes Ref. 4, 6, 18, 21, 25 and 28

1шт.
