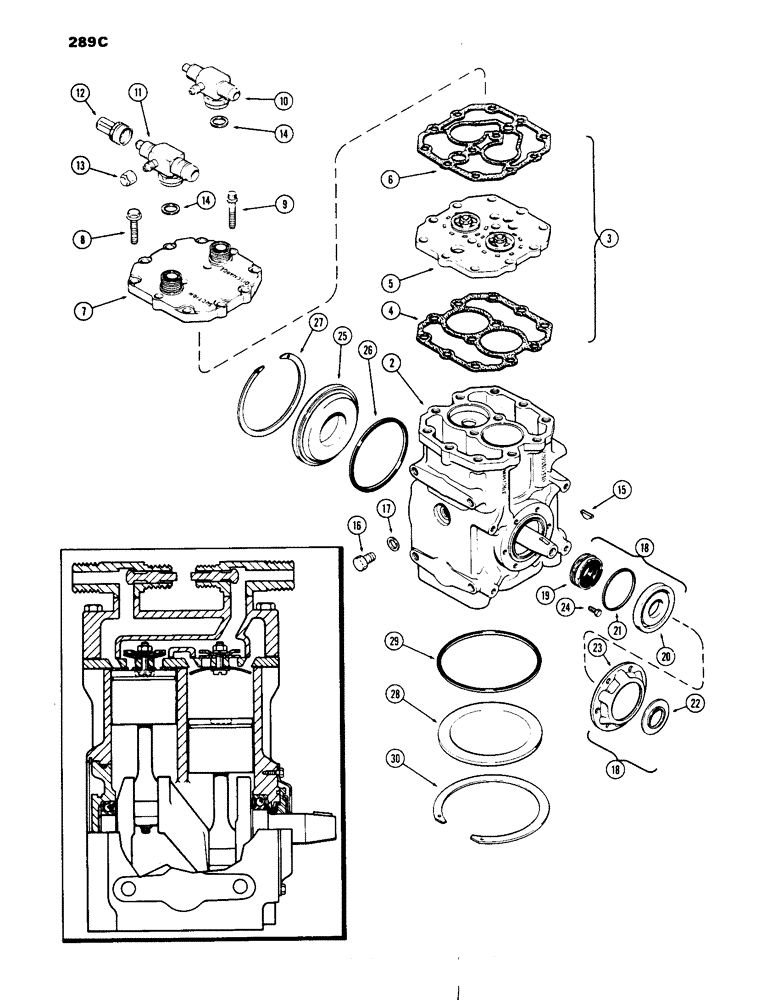

Запчасти Case IH 1070 (289C) - TECUMSEH COMPRESSOR (09) - CHASSIS/ATTACHMENTS

A42953

SPARE PART COMPRESSOR ASSY., Tecumseh no. GH1000, Order A141060, Includes Ref. 2 - 30

1шт.

417888C93

AIRCOND. COMPRESSOR

Compressor Assy., A/C

1шт.

1924004C2

REMAN-A/C COMPRESSOR

Remanufactured Compressor

1шт.

1924005C1

CORE-A/C COMPRESSOR

Return Number

1шт.

2

NSS

NOT SOLD SEPARAT

CRANKCASE ASSY.

1шт.

3

A42935

PLATE

KIT valve plate, Includes Ref. 4, 5 and 6

1шт.

4

NSS

NOT SOLD SEPARAT

GASKET plate to crankcase, Order A42943

1шт.

5

NSS

NOT SOLD SEPARAT

PLATE valve

1шт.

6

NSS

NOT SOLD SEPARAT

GASKET cyl. hd. to valve plate, Order A42943

1шт.

7

NSS

NOT SOLD SEPARAT

HEAD cylinder

1шт.

8

114-125

BOLT, 5/16 x 1-3/8" N.F. hex. washer hd.

8шт.

9

A42947

SCREW,5/16" - 18 x 1.375", Grade 6, Steel

SPARE PART SCREW, 5/16 x 1-3/8" N.C. ferry hd., 12 pt. cap

4шт.

10

A42936

VALVE

VALVE ASSY. roto-lock, discharge, 1/2" port

1шт.

11

A42937

VALVE

VALVE ASSY. roto-lock, suction, 5/8" port, Includes Ref. 12 and 13

1шт.

12

A42944

CAP

CAP sleeve, valve stem

1шт.

13

221-981

CAP valve stem

1шт.

14

A42938

GASKET

GASKET roto-lock to cyl. hd.

2шт.

15

A42939

KEY

KEY crankshaft, no. 6 non-rok

1шт.

16

14-68

BOLT,Hex, 3/8" - 24 x 1/2", Gr 5

PLUG crankshaft, filler and level

2шт.

17

NSS

NOT SOLD SEPARAT

GASKET filler and level plug, Order A42943

2шт.

18

A42934

SEAL

KIT seal, front crankshaft, Includes Ref. 19 - 23

1шт.

19

NSS

NOT SOLD SEPARAT

SEAL crankshaft

1шт.

20

NSS

NOT SOLD SEPARAT

RETAINER seal, outer

1шт.

21

NSS

NOT SOLD SEPARAT

O-RING, Order A42943

1шт.

22

NSS

NOT SOLD SEPARAT

RETAINER seal, inner

1шт.

23

NSS

NOT SOLD SEPARAT

PLATE crankshaft seal

1шт.

24

NSS

NOT SOLD SEPARAT

BOLT seal, Serial Range: plate-crankshaft

6шт.

25

NSS

NOT SOLD SEPARAT

HOUSING rear bearing

1шт.

26

NSS

NOT SOLD SEPARAT

O-RING rear brg. hsg., Order A42943

1шт.

27

NSS

NOT SOLD SEPARAT

RING snap, rear brg. hsg. retaining

1шт.

28

NSS

NOT SOLD SEPARAT

PLATE bottom

1шт.

29

NSS

NOT SOLD SEPARAT

O-RING bottom plate, Order A42943

1шт.

30

NSS

NOT SOLD SEPARAT

RING snap, bottom plate retaining

1шт.

A42943

SPARE PART KIT gasket, complete overhaul, Includes Ref. 4, 6, 17, 21, 26 and 29

1шт.
