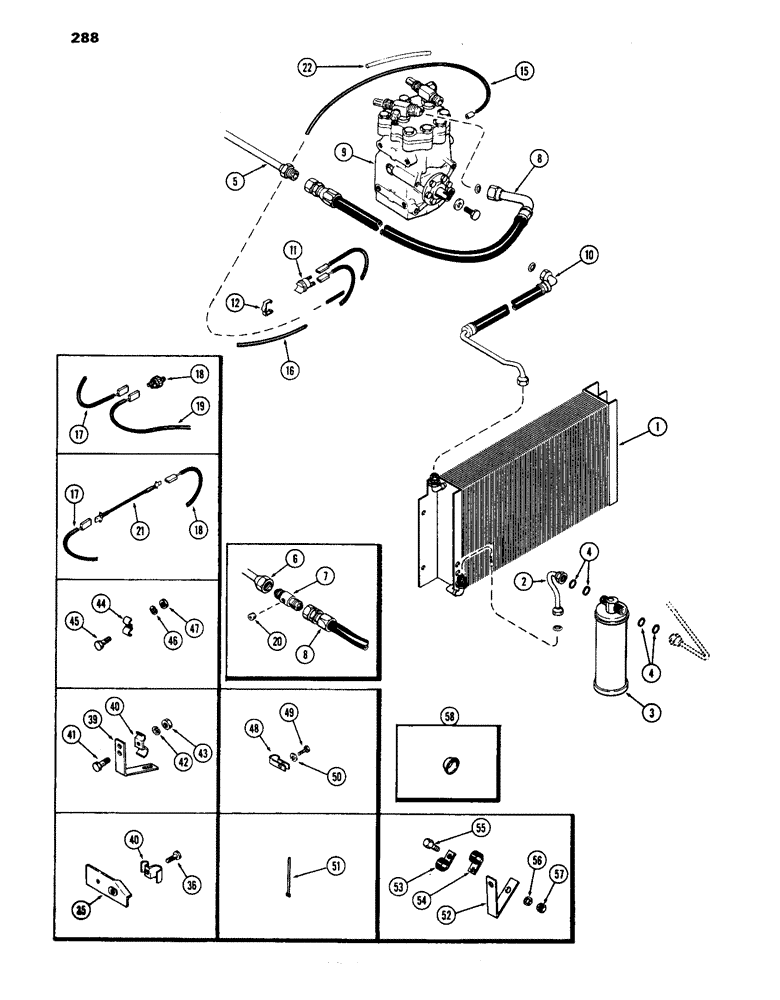

Запчасти Case IH 1070 (288) - AIR CONDITIONER (09) - CHASSIS/ATTACHMENTS

1

A61687

COIL

condenser

1шт.

2

A61690

TUBE

, Serial Range: condenser-receiver

1шт.

3

A61688

TANK

RECEIVER drier

1шт.

4

A61198

O-RING,0.07" Thk x 0.301" ID, -11

receiver, 5/16 x 7/16 x 1/16"

4шт.

5

A62225

TUBE

cab to compressor, w/ union, See Figure 273C, 1st used trac. ser. no. 8665014

1шт.

6

A61213

TUBE

cab to compressor, w/ out union, See Figure 273C, used prior to trac. ser. no. 8665014

1шт.

7

A61189

UNION compressor tube to hose, used w/ A61213 tube, used prior to trac. ser. no. 8665014

1шт.

8

A61207

HOSE

, Serial Range: cab-compressor

1шт.

9

A61148

COMPRESSOR

air conditioner, Order A141060

1шт.

10

A61691

HOSE

, Serial Range: compessor-condenser

1шт.

11

A61291

THERMOSTAT

high temperature

1шт.

12

A61789

CLAMP

thermostat, Replaces A61191

1шт.

15

A61755

ELECTRICAL WIRE

WIRE thermostat to compressor clutch

1шт.

16

A42931

ELECTRICAL WIRE

WIRE thermostat to cab harness, 197" long

1шт.

17

NSS

NOT SOLD SEPARAT

WIRE cab to lo-pressure thermostat, these components used on some early production tractors, use A42931

1шт.

18

NSS

NOT SOLD SEPARAT

SWITCH low pressure, these components used on some early production tractors, use A42931

1шт.

19

NSS

NOT SOLD SEPARAT

WIRE thermostat to lo-pressure thermostat, these components used on some early production tractors, use A42931

1шт.

20

NSS

NOT SOLD SEPARAT

PLUG union

1шт.

21

NSS

NOT SOLD SEPARAT

WIRE jumper, these components used on some early production tractors, use A42931

1шт.

22

A62053

HARNESS

LOOM wire

1шт.

35

A62254

BRACKET

air conditioner tube mtg.

1шт.

36

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

39

A61202

BRACKET air conditioner tube mtg.

1шт.

40

A61704

CLAMP air conditioner tubes

2шт.

41

13-414

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5, Full Thd

2шт.

42

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

43

25-104

NUT,1/4"-20, G5

2шт.

44

A61199

CLIP

tube

1шт.

45

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

46

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

47

25-104

NUT,1/4"-20, G5

1шт.

48

A7922

CLIP

clutch lead wire

1шт.

49

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

50

92-6

LOCK WASHER,3/8"

1шт.

51

L11541

CABLE TIE,203.2mm L, Nylon

CLIP, Serial Range: wires-tubes

2шт.

52

A62206

BRACKET air cond. tubes

1шт.

53

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

CLIP tube, 5/8"

1шт.

54

49845

CLAMP

CLIP tube, 3/8"

1шт.

55

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

1шт.

56

92-6

LOCK WASHER,3/8"

1шт.

57

25-106

NUT,3/8"-16, G5

3/8" N.C. hex.

1шт.

58

A42920

GASKET

flare, copper, for 3/8" tube

1шт.

58

A42921

GASKET

flare, copper, for 1/2" tube

1шт.

58

A42922

GASKET

flare, copper, for 5/8" tube

1шт.
