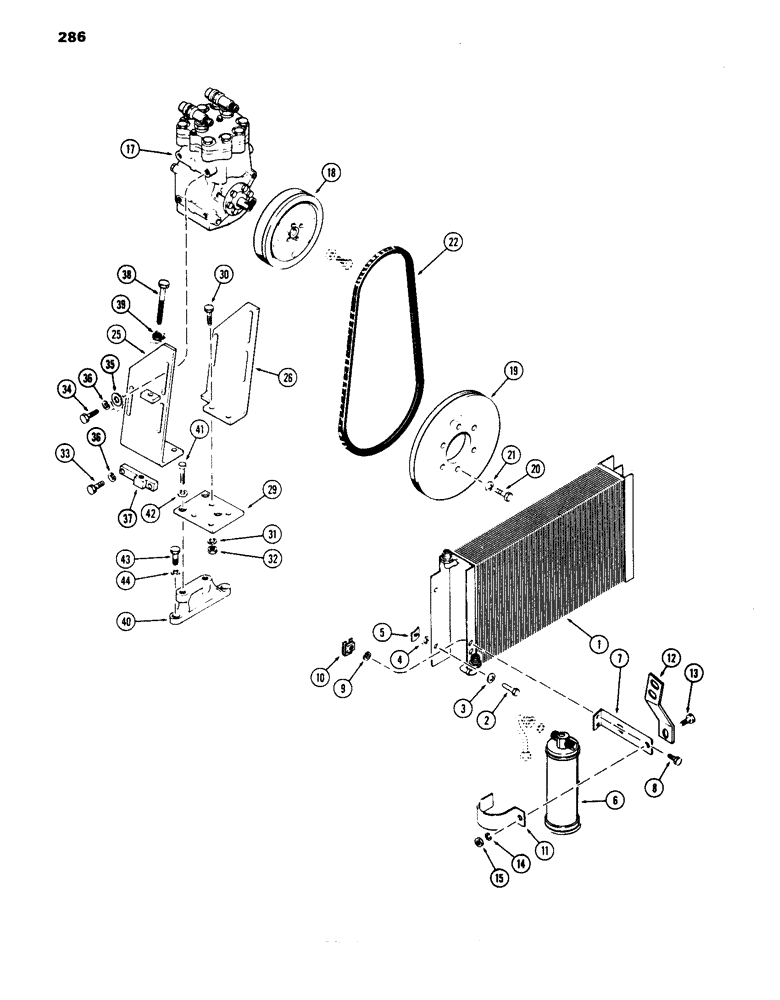

Запчасти Case IH 1070 (286) - AIR CONDITIONER (09) - CHASSIS/ATTACHMENTS

1

A61687

COIL

COIL condenser

1шт.

2

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

BOLT, Hex, 1/4"-20 x 3/4", G5, Full Thd

4шт.

3

95-4

WASHER,1/4"

WASHER, 5/16 x 3/4 x 1/16"

4шт.

4

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

5

131-611

NUT,Ret, 1/4"-20

NUT, 1/4" N.C. tinnerman

4шт.

6

A61688

TANK

RECEIVER drier

1шт.

7

A61689

SPARE PART BRACKET receiver

1шт.

8

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

BOLT, Hex, 1/4"-20 x 5/8", G5, Full Thd

2шт.

9

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

10

131-620

SPRING NUT,J, 1/4" - 20, 0.025" Thk

NUT, 1/4" "J" type, tinnerman

2шт.

11

A61193

CLAMP

CLAMP receiver

1шт.

12

A61877

BRACKET

BRACKET, Serial Range: receiver-grille

1шт.

13

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

BOLT, Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

14

92-5

LOCK WASHER,5/16"

LOCK WASHER, 5/16"

1шт.

15

9635082

NUT,5/16" - 18, Gr 5

NUT, 5/16" N.C. hex.

1шт.

17

A61148

COMPRESSOR

COMPRESSOR air conditioner, Order A141060

1шт.

17

417888C93

AIRCOND. COMPRESSOR

Compressor Assy., A/C

1шт.

17

1924004C2

REMAN-A/C COMPRESSOR

Remanufactured Compressor

1шт.

17

1924005C1

CORE-A/C COMPRESSOR

Return Number

1шт.

18

A61149

CLUTCH

CLUTCH compressor electromagnetic, Order A66058

1шт.

19

A61157

SPARE PART PULLEY compressor drive

1шт.

20

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

BOLT, 3/8 x 1-1/2" N.C. hex.

6шт.

21

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

6шт.

22

A61158

BELT,72.83" L

Compressor Drive, Order A65692

1шт.

25

A61749

SPARE PART BRACKET compressor mtg., R.H.

1шт.

26

A61751

SPARE PART BRACKET compressor mtg., L.H.

1шт.

29

A61743

SPARE PART PLATE compressor mtg. bracket adjusting

1шт.

30

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

BOLT, Hex, 3/8"-16 x 1", G5, Full Thd

4шт.

31

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

4шт.

32

25-106

NUT,3/8"-16, G5

NUT, 3/8" N.C. hex.

4шт.

33

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

BOLT, Hex, 3/8"-16 x 1 3/4", G5

4шт.

34

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 7/8", G5, Full Thd

2шт.

35

95-6

WASHER,3/8"

WASHER, 7/16 x 1 x 5/64"

2шт.

36

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

6шт.

37

A61153

SPARE PART BLOCK adjusting, compressor

2шт.

38

A61154

SPARE PART BOLT adjusting, compressor, 3/8 x 4-1/4" N.C. hex.

2шт.

39

25-146

JAM NUT,Jam, 3/8"-16, G5

NUT, 3/8" N.C. hex., jam

2шт.

40

A61155

BRACKET

SUPPORT compressor mounting bracket

1шт.

41

13-716

BOLT,Hex, 7/16" - 14 x 1", Gr 5

BOLT, Hex, 7/16"-14 x 1", G5, Full Thd

3шт.

42

92-7

LOCK WASHER,7/16"

LOCK WASHER, 7/16"

3шт.

43

13-822

BOLT,Hex, 1/2" - 13 x 1-3/8", Gr 5, Full Thd

BOLT, Hex, 1/2"-13 x 1 3/8", G5, Full Thd

2шт.

44

92-8

LOCK WASHER,1/2"

LOCK WASHER, 1/2"

2шт.
