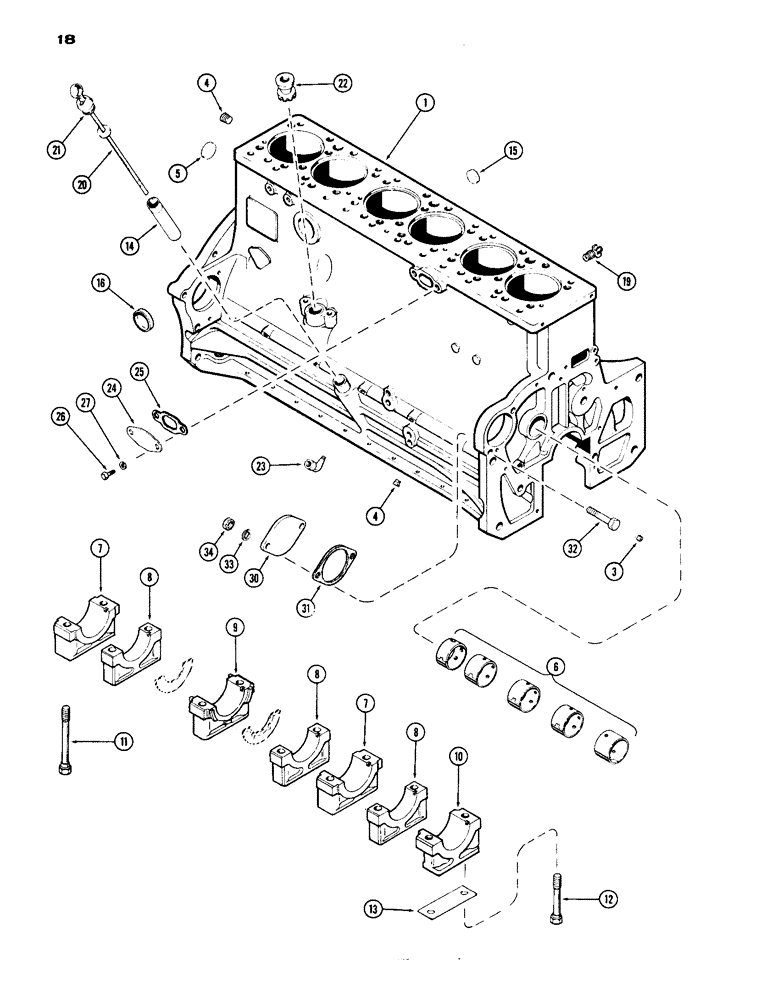

Запчасти Case IH 1070 (018) - CYLINDER BLOCK ASSEMBLY (02) - ENGINE

A43015

BLOCK

ASSY. short, Includes Ref. 1 and stripped block, pistons, conn. rod. and brgs., crankshaft and brgs., camshaft, bushings, timing gears and push rod lifters, Replaces A42067, Order (1) A44096 block and (30) A76638 bolts

1шт.

1

A42068

BLOCK

ASSY. stripped, Order (1) A44097 block and (30) A76638 bolts, Includes Ref. 3 - 16

1шт.

3

221-1843

PLUG

3/8" P.T. hex. socket hd.

3шт.

4

221-41

PLUG

1/8" P.T., sltd. hdless

6шт.

5

A24361

PLUG

camshaft hole, 2-3/8" cup type

1шт.

6

A23544

BUSHING

KIT bushing, camshaft

1шт.

7

A58783

BEARING CAP

CAP main bearing, wide

2шт.

8

A58784

BEARING CAP

CAP main bearing, narrow

3шт.

9

A58785

BEARING CAP

CAP main bearing, thrust

1шт.

10

A58782

CAP

main bearing, front

1шт.

11

A58566

STEP BOLT

BOLT bearing cap, 5/8 x 4-1/2" N.C. spec.

12шт.

12

A58567

STEP BOLT

BOLT bearing cap to oil pump, 5/8 x 6-13/16" N.C. spec.

2шт.

13

A58859

SHIM,.005" Thk

Oil pump to front brg. cap .005" Thk

1шт.

14

A34540

TUBE

SOCKET oil filler

1шт.

15

A58568

PLUG,Cup, 1 3/8", Stainless

water gallery, 1-3/8" cup type

3шт.

16

A58569

PLUG,Cup, 2", Stainless

2" cup type

1шт.

221-845

PLUG,Hex Soc, 3/4"-14

3/4" hex. sckt. hd., not applicable

1шт.

19

A23656

COCK, DRAIN

VALVE drain, water

1шт.

20

A34541

DIPSTICK

oil level

1шт.

21

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

3/4 x 1 x 1/8"

2шт.

22

A34266

DRIVE

ASSY. tachometer

1шт.

23

222-40

ELBOW,90 Degree, 3/8"-24 Fem x 1/8"-27 NPTF

1/8 x 1/8" 90 degrees

1шт.

24

A58851

PLATE

COVER water opening, oil cooler

1шт.

25

A58670

GASKET

oil cooler water opening cover

1шт.

26

13-814

BOLT,Hex, 1/2" - 13 x 7/8", Gr 5, Full Thd

Hex 1/2"-13 x 7/8", G5, Full Thd

2шт.

27

92-8

LOCK WASHER,1/2"

2шт.

30

A58732

COVER

pump mounting

1шт.

31

A58617

GASKET

pump mounting, cover

1шт.

32

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

3/8 x 3-1/2" N.C. hex.

2шт.

33

92-6

LOCK WASHER,3/8"

2шт.

34

25-106

NUT,3/8"-16, G5

3/8" N.C. hex.

2шт.
