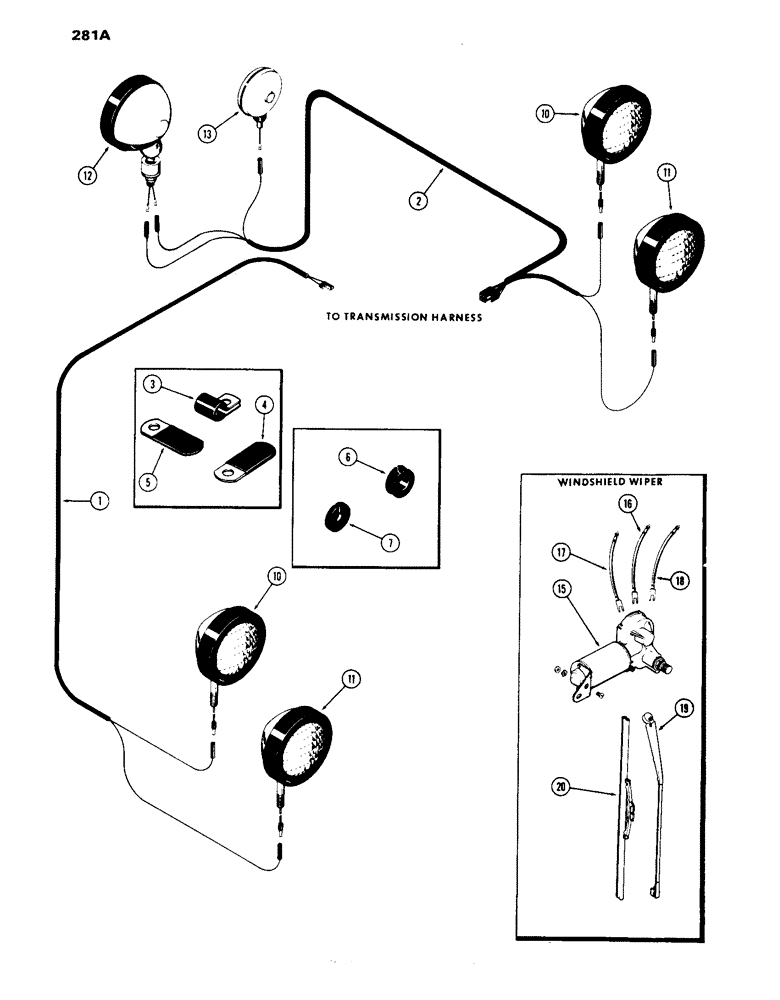

Запчасти Case IH 1070 (281A) - CAB, ELECTRICAL EQUIPMENT AND WIRING, FENDER HARNESS, USED PRIOR TO TRAC. SER. NO. 8675001 (09) - CHASSIS/ATTACHMENTS

1

A59708

HARNESS

fender wire, R.H.

1шт.

2

A61146

HARNESS

fender wire, L.H.

1шт.

3

49885

CLAMP

CLIP wire harness

4шт.

4

A22883

CLIP

fender harness

2шт.

5

A37179

CLIP

fender harness

2шт.

6

A61144

GROMMET,1/2" ID x 13/16" Groove Dia, Str Cut

cab fender

1шт.

7

A61145

GROMMET,1/4" ID x 3/4" Groove Dia, Str Cut

cab front frame

2шт.

10

A59701

LAMP

front head driving, See Figure 059A

2шт.

11

A59723

LAMP

front cultivator, See Figure 060

2шт.

12

A59703

LAMP

rear flood and tail, See Figure 061A

1шт.

13

A34853

LAMP

flasher, See Figure 058

1шт.

A42692

MOTOR

ASSY. windshield wiper, Includes Ref. 15 - 18

1шт.

15

NSS

NOT SOLD SEPARAT

MOTOR windshield wiper

1шт.

16

A42693

ELECTRICAL WIRE

WIRE motor, green

1шт.

17

A42694

ELECTRICAL WIRE

WIRE motor, blue

1шт.

18

A42695

ELECTRICAL WIRE

WIRE motor, orange

1шт.

19

A42579

ARM

windshield wiper, Order T41946, windsheild wiper

1шт.

20

A42580

WIPER BLADE,203.2mm L

BLADE windshield wiper

1шт.
