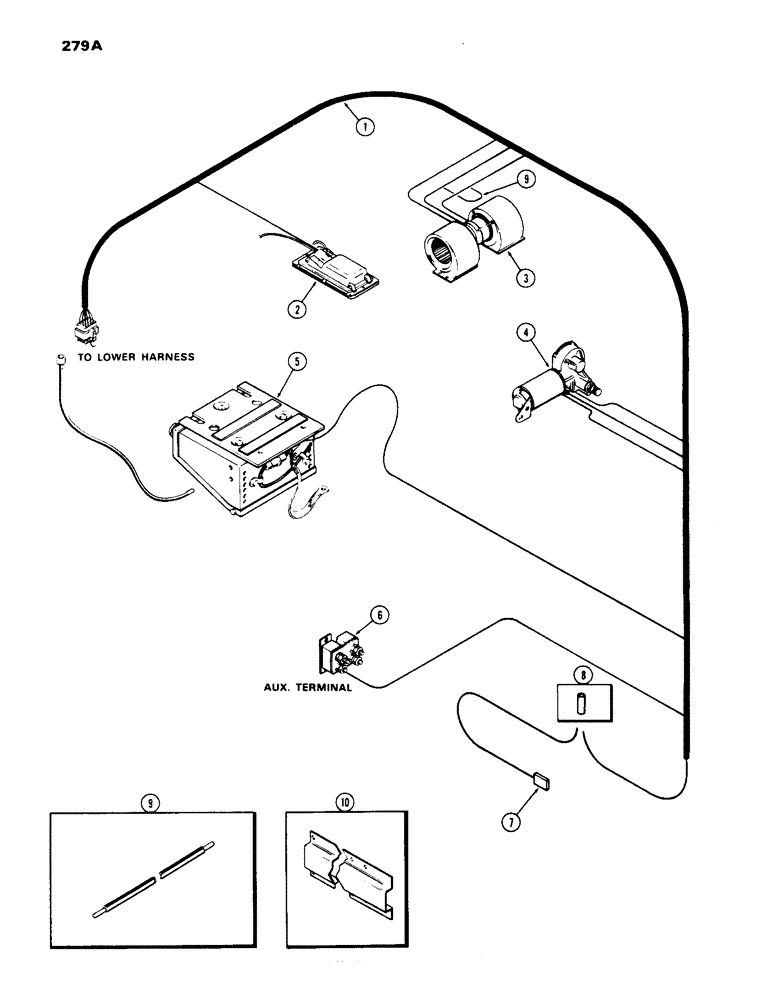

Запчасти Case IH 1070 (279A) - CAB, ELECTRICAL EQUIPMENT AND WIRING, PLENUM, HINSON (09) - CHASSIS/ATTACHMENTS

1

A42586

HARNESS wiring, upper

1шт.

2

A42658

INTERIOR LIGHT

LIGHT dome, Replaces A42503, See Figure 266

1шт.

3

NSS

NOT SOLD SEPARAT

BLOWER cab air, See Figure 282

1шт.

4

A42692

MOTOR

windshield wiper, Replaces A42553, See Figure 280

1шт.

5

A62456

RADIO

KIT radio, See Figure 284

1шт.

6

A59704

BREAKER

circuit, auxiliary terminal

1шт.

7

A42931

ELECTRICAL WIRE

WIRE harness to high pressure thermostat, See Figure 288

1шт.

8

A42671

CONNECTOR, ELEC

CONNECTOR wire solderless

1шт.

9

A42652

ELECTRICAL WIRE

WIRE resistor, blower speed adjust, color coded white, ornage and purple, connected between the white and brown 16" harness wire

1шт.

10

A62263

CHANNEL cab electrical conduit

1шт.
