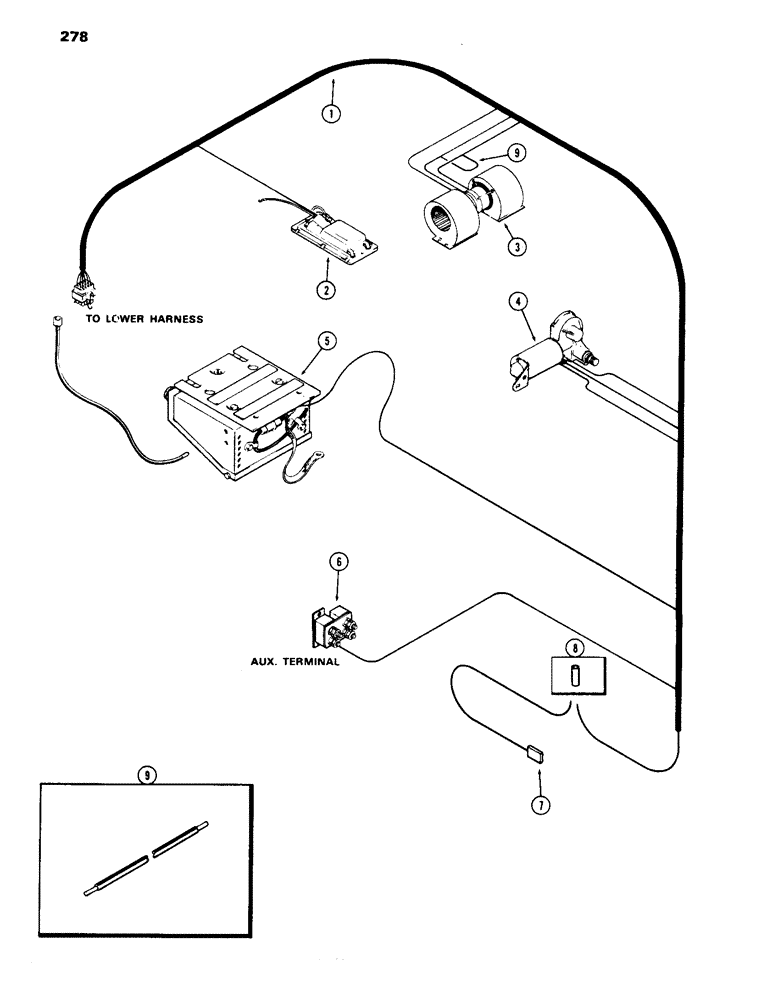

Запчасти Case IH 1070 (278) - CAB, ELECTRICAL EQUIPMENT & WIRING, PLENUM, BETTENDORF (09) - CHASSIS/ATTACHMENTS

1

A63281

WASHER

HARNESS ASSY. plenum wire

1шт.

2

A42658

INTERIOR LIGHT

LIGHT dome

1шт.

3

NSS

NOT SOLD SEPARAT

BLOWER ASSY. cab air, See Figure 282

1шт.

4

A42692

MOTOR

ASSY. windshield wiper, See Figure 280

1шт.

5

A62456

RADIO

KIT radio, See Figure 284

1шт.

6

A59704

BREAKER

circuit, auxiliary terminal

1шт.

7

A42931

ELECTRICAL WIRE

WIRE harness to air cond. thermostat, See Figure 288

1шт.

8

A42671

CONNECTOR, ELEC

CONNECTOR wire, solderless

4шт.

9

A42652

ELECTRICAL WIRE

WIRE resistor, blower speed adjust, color coded white, orange and purple, connected between the white and brown 16" harness wire

1шт.
