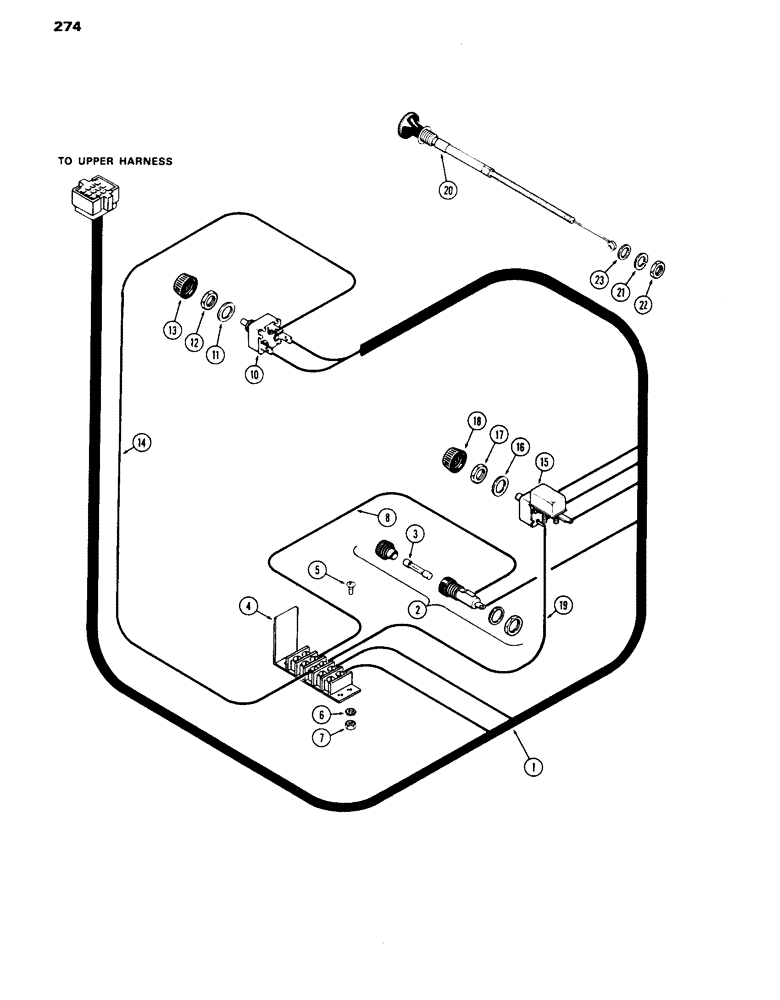

Запчасти Case IH 1070 (274) - CAB, INSTRUMENT PANEL, CONTROLS & WIRING, W/O AIR CONDITIONER BETTENDORF (09) - CHASSIS/ATTACHMENTS

1

F63300

HARNESS

ASSY. instrument panel wire

1шт.

2

A22874

HOLDER

panel fuse

1шт.

3

223-20

FUSE,20 Amp, Type SFE

20 amp

1шт.

4

A42511

BLOCK

terminal

1шт.

F63172

CONNECTOR terminal block

1шт.

5

173-79

SCREW,Sl Rnd Hd, #8 - 32 x 5/8"

no. 8 x 5/8" N.C. rd. hd. mach

2шт.

6

193-5

LOCK WASHER,Ext Tooth, #8

WASHER shakeproof, no. 8 ext.

2шт.

7

129-6

NUT,#8-32

2шт.

8

A42563

WIRE panel, red, term. block to fuse holder

1шт.

10

A42566

SWITCH

blower

1шт.

11

B51614

WASHER

1/2 x 3/4 x 1/32" fiber

1шт.

12

A42561

JAM NUT,Hex, 7/16" - 28, RH Thd

7/16" N.F. hex., jam

1шт.

13

A42578

KNOB

switch

1шт.

14

A42565

ELECTRICAL WIRE

WIRE panel, yellow, term. block to blower switch

1шт.

15

A42660

SWITCH

wiper motor

1шт.

16

B51614

WASHER

1/2 x 3/4 x 1/32" fiber

1шт.

17

A42561

JAM NUT,Hex, 7/16" - 28, RH Thd

7/16" N.F. hex., jam

1шт.

18

A42578

KNOB

switch

1шт.

19

A42564

WIRE panel, green, term. block to wiper switch

1шт.

20

A42614

CABLE

heater control, Includes Ref. 21 and 22

1шт.

21

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

22

129-148

JAM NUT,Jam, 3/4"-10, G5

3/4" N.C. hex., jam

1шт.

23

B51618

WASHER

3/8 x 9/16 x 1/32" fiber

1шт.
