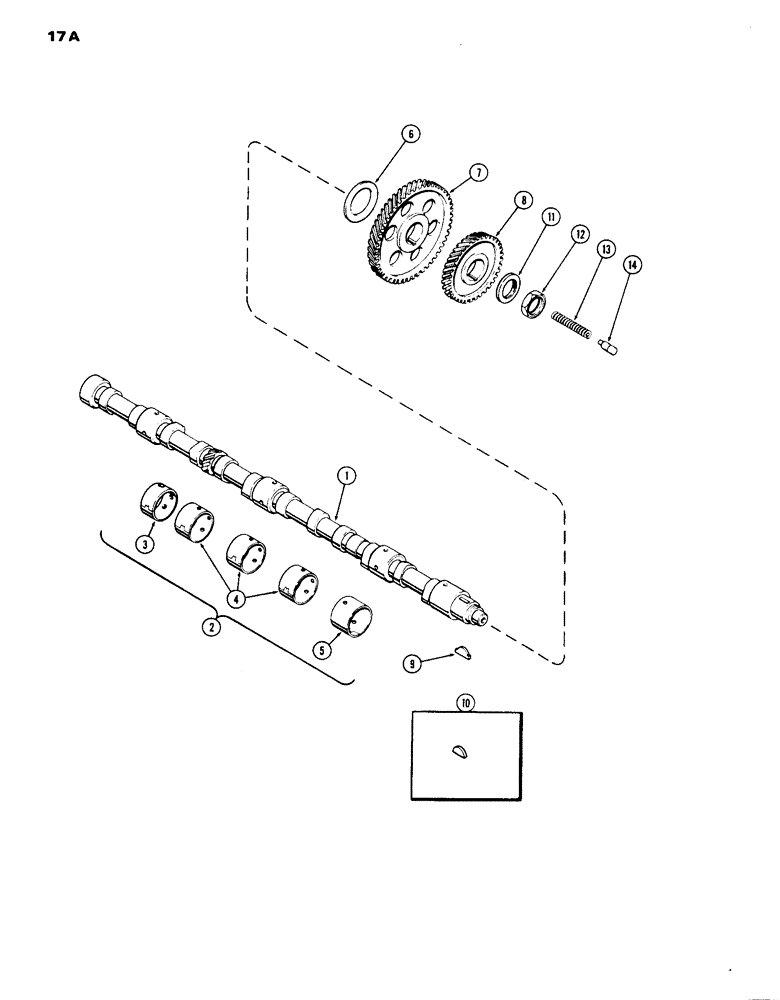

Запчасти Case IH 1070 (017A) - CAMSHAFT, (451B) DIESEL ENGINE (02) - ENGINE

1

A66743

CAMSHAFT

engine, Replaces A58591

1шт.

1

A58591

CAMSHAFT

engine, Order A66743 and 126-227

1шт.

2

A23544

BUSHING

KIT bushing, camshaft, set of 5, Includes Ref. 3, 4 and 5

1шт.

3

NSS

NOT SOLD SEPARAT

BUSHING camshaft, rear, 1-5/32" wide

1шт.

4

NSS

NOT SOLD SEPARAT

BUSHING camshaft, intermediate, 1-7/16" wide

3шт.

5

NSS

NOT SOLD SEPARAT

BUSHING camshaft, front, 1-21/32" wide

1шт.

6

A21017

WASHER

camshaft thrust

1шт.

7

A58592

GEAR

camshaft

1шт.

8

A58593

GEAR

idler drive

1шт.

9

129-227

X

KEY, 5/16 x 1-5/16" Hi-Pro, used w/ A66743

1шт.

10

126-29

WOODRUFF KEY,#C, 5/16" x 1 1/8"

Used w/A58591 #C, 5/16" x 1 1/8"

1шт.

11

A31038

THRUST WASHER

lock, camshaft nut, Replaces A58594

1шт.

12

A58595

NUT

camshaft

1шт.

13

A27853

SPRING

plunger, camshaft thrust

1шт.

14

A27852

PLUNGER

thrust, camshaft

1шт.
