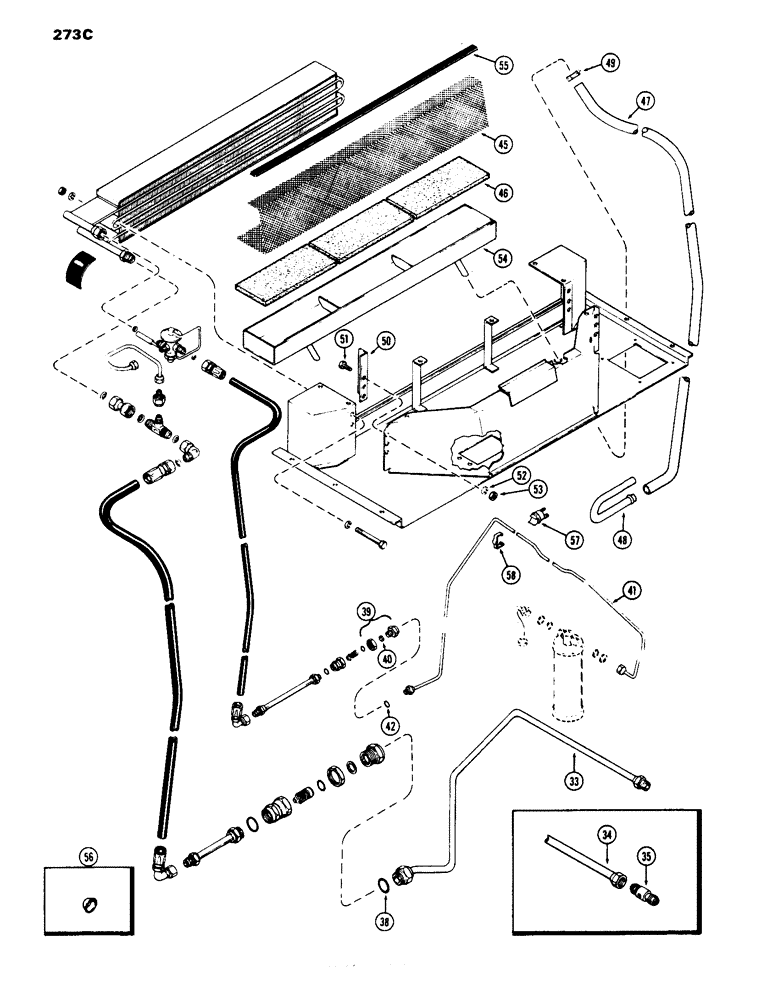

Запчасти Case IH 1070 (273C) - CAB, PLENUM, W/AIR CONDITIONER, HINSON (09) - CHASSIS/ATTACHMENTS

33

A62225

TUBE

cab to compressor, w/ union, See Figure 288, 1st used trac. ser. no. 8665014

1шт.

34

A61213

TUBE

cab to compressor, w/o union, See Figure 288, used prior to trac. ser. no. 8665014

1шт.

35

A61189

UNION compression tube to hose, used w/ A61213 tube, used prior to trac. ser. no. 8665014

1шт.

38

A61195

O-RING,0.364" ID x 0.5" OD

1-1/16 x 1-3/32 x 1/16"

1шт.

39

A61196

COUPLING, BREAK AWAY

COUPLING self sealing, Includes Ref. 40

1шт.

40

A42667

GASKET

coupling

1шт.

41

A61692

TUBE

, Serial Range: receiver-cab

1шт.

42

A61197

O-RING,1.78mm Thk x 27mm ID

3/8 x 1/2 x 1/16"

1шт.

45

A42904

SCREEN evaporator

1шт.

46

A42903

PAD foam core spacer

3шт.

47

NSS

NOT SOLD SEPARAT

HOSE drip, 75" long, Order A42698

2шт.

A42698

HOSE

drip, 1/2 x 5/8", 50' roll

1шт.

48

A42699

TUBE drip hose

2шт.

49

214-274

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

2шт.

50

A42628

FILLER plenum, R.H., w/ air conditioner

1шт.

50

A42629

FILLER plenum, L.H., w/ air conditioner

1шт.

51

113-101

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

1шт.

52

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

53

9635082

NUT,5/16" - 18, Gr 5

1шт.

54

A42901

PAN cab condensate

1шт.

55

A42905

FOAM

core top

1шт.

56

222-993

GASKET,3/8 Tube, Fl, Copper

1шт.

56

222-994

GASKET,1/2 Tube, Fl, Copper

45 deg., for 1/2" tube

1шт.

56

222-995

SEALING WASHER,15.88mm ID

45 deg., for 5/8" tube

1шт.

57

A61291

THERMOSTAT

high temperature

1шт.

58

A61789

CLAMP

thermostat

1шт.
