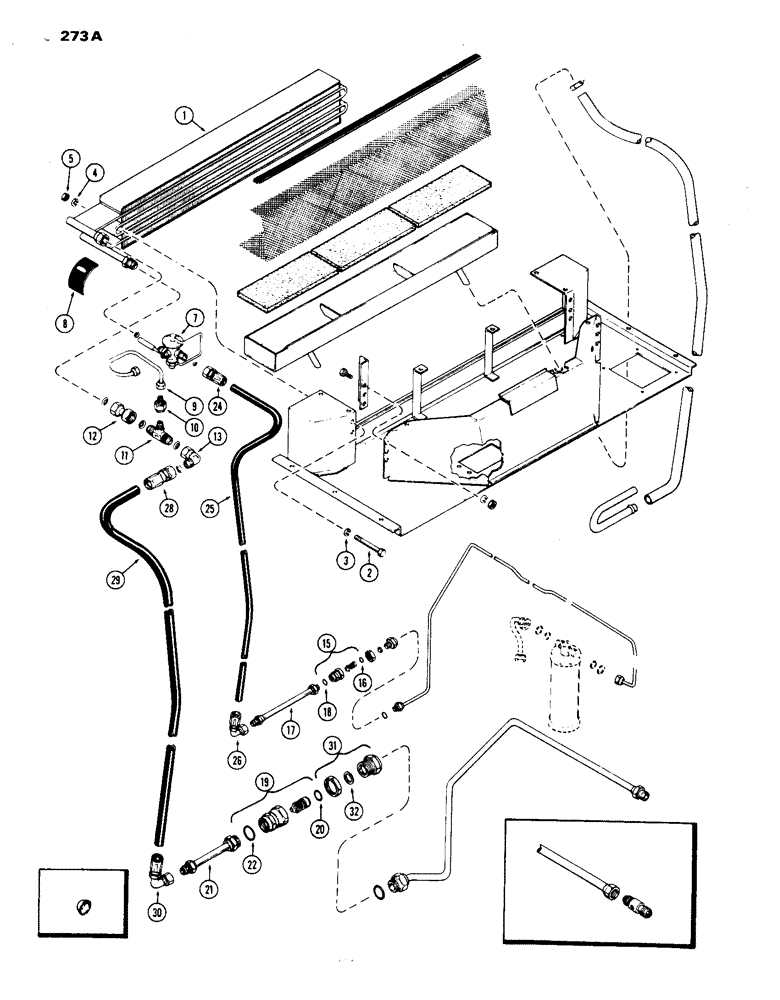

Запчасти Case IH 1070 (273A) - CAB, PLENUM, W/AIR CONDITIONER, HINSON (09) - CHASSIS/ATTACHMENTS

1

A42627

CORE air conditioner evaporation

1шт.

2

113-138

BOLT,Hex, 5/16" - 18 x 3-1/2", Gr 5

3шт.

3

195-103

WASHER,5/16"

3/8 x 7/8 x 5/64"

6шт.

4

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

6шт.

5

9635082

NUT,5/16" - 18, Gr 5

6шт.

7

A42625

LOCK VALVE

VALVE expansion

1шт.

8

A42902

SEALING STRIP

INSULATION valve, 30', cut as required

1шт.

9

A42633

TUBE equalizer

1шт.

10

A42632

REDUCER

line

1шт.

11

A42631

TEE union

1шт.

12

A42630

UNION

swivel

1шт.

13

A42919

ELBOW swivel, Order 222-1925

1шт.

15

A42663

COUPLING,1/2" - 20 NPT

COUPLING cab half, Includes Ref. 16

1шт.

16

A42665

O-RING,0.239" ID x 0.375" OD x 0.07"

coupling, for 3/8" tube

1шт.

17

A42670

TUBE air conditioning, connector, 3/8" tube

1шт.

18

A61195

O-RING,0.364" ID x 0.5" OD

23/64 x 1/2 x 1/16"

1шт.

19

A42664

COUPLING, BREAK AWAY

COUPLING cab half, Includes Ref. 20

1шт.

20

A42666

O-RING,0.737" ID x 0.943" OD x 0.103"

coupling, for 5/8" tube

1шт.

21

A42669

TUBE air conditioning connector, 5/8" tube

1шт.

22

A61197

O-RING,1.78mm Thk x 27mm ID

1-3/64 x 1-3/16 x 1/16"

1шт.

24

A42651

TUBE NUT

ADAPTER hose, for 3/8" tube

1шт.

25

A42634

A/C HOSE,0.312" ID x 71.00"

0.312" ID x 71.00"

1шт.

26

A42650

ELBOW

hose, for 3/8" tube

1шт.

28

A42649

ADAPTER

hose, for 5/8" tube

1шт.

29

A42647

A/C HOSE,0.50" ID x 73.00"

0.50" ID x 73.00"

1шт.

30

A42648

ELBOW

hose, for 5/8" tube

1шт.

31

A61194

COUPLING, BREAK AWAY

COUPLING self sealing, Includes Ref. 32

1шт.

32

A42668

GASKET

coupling

1шт.
