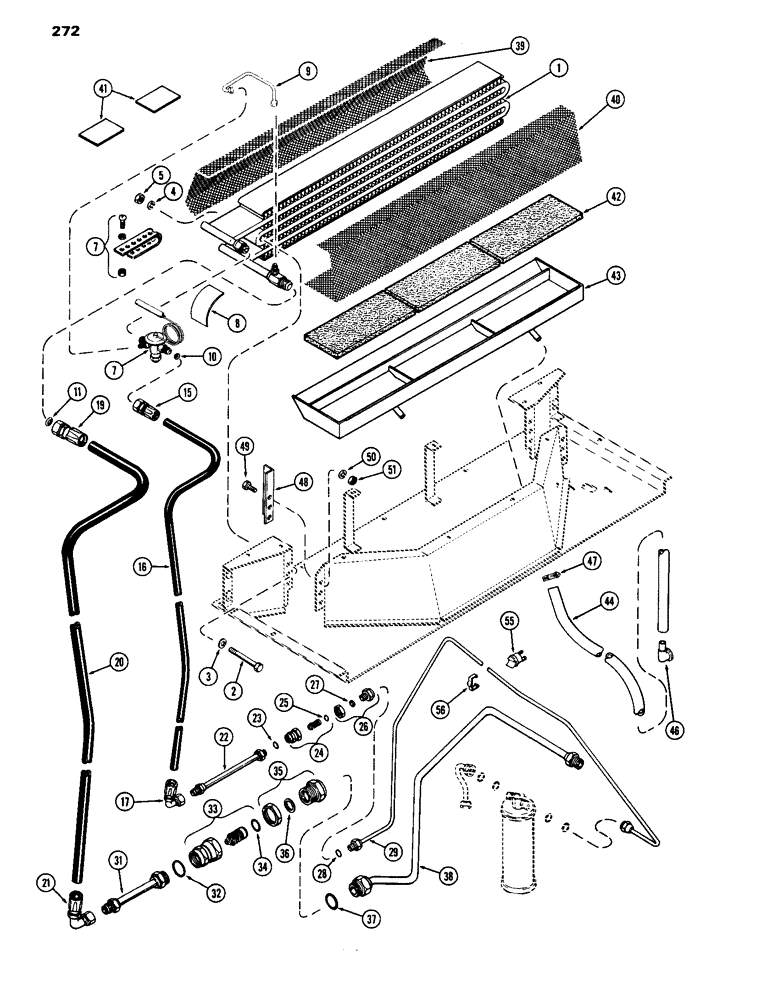

Запчасти Case IH 1070 (272) - CAB, PLENUM, W/AIR CONDITIONER, BETTENDORF (09) - CHASSIS/ATTACHMENTS

1

F89638

CORE, RADIATOR

CORE air conditioner evaporation

1шт.

2

113-18

BOLT,Hex, 1/4" - 20 x 3-3/4", Gr 5

1/4 x 3-3/4" N.C. hex

3шт.

3

A30171

WASHER

17/64 x 1 x 1/16"

3шт.

4

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

3шт.

5

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

3шт.

7

A42625

LOCK VALVE

VALVE expansion

1шт.

8

NSS

NOT SOLD SEPARAT

INSULATION valve, 2-1/2" x 10", Order A42902

1шт.

A42902

SEALING STRIP

INSULATION valve, 30' roll

1шт.

9

F63178

TUBE

equalizer

1шт.

10

222-993

GASKET,3/8 Tube, Fl, Copper

(#6) 3/8 Tube, Fl, Copper

2шт.

11

222-995

SEALING WASHER,15.88mm ID

45 deg. no. 10

1шт.

15

A42651

TUBE NUT

ADAPTER hose

1шт.

16

A42634

A/C HOSE,0.312" ID x 71.00"

0.312" ID x 71.00"

1шт.

17

A42650

ELBOW

hose

1шт.

19

A42649

ADAPTER

hose

1шт.

20

A42647

A/C HOSE,0.50" ID x 73.00"

0.50" ID x 73.00"

1шт.

21

A42648

ELBOW

hose

1шт.

22

A42670

TUBE, Serial Range: hose-coupling

1шт.

23

A61195

O-RING,0.364" ID x 0.5" OD

23/64 x 1/2 x 1/16"

1шт.

24

A42663

COUPLING,1/2" - 20 NPT

COUPLING cab half, Includes Ref. 25

1шт.

25

A42665

O-RING,0.239" ID x 0.375" OD x 0.07"

coupling piston

1шт.

26

A61196

COUPLING, BREAK AWAY

COUPLING tractor half, Includes Ref. 27

1шт.

27

A42667

GASKET

, Serial Range: coupling-coupling

1шт.

28

A61195

O-RING,0.364" ID x 0.5" OD

23/64 x 1/2 x 1/16"

1шт.

29

A61692

TUBE

, Serial Range: receiver-cab

1шт.

31

A42669

TUBE, Serial Range: hose-coupling

1шт.

32

A61197

O-RING,1.78mm Thk x 27mm ID

1-3/4 x 1-3/16 x 1/16"

1шт.

33

A42664

COUPLING, BREAK AWAY

COUPLING cab half, Includes Ref. 34

1шт.

34

A42666

O-RING,0.737" ID x 0.943" OD x 0.103"

coupling piston

1шт.

35

A61194

COUPLING, BREAK AWAY

COUPLING tractor half, Includes Ref. 36

1шт.

36

A42668

GASKET

, Serial Range: coupling-coupling

1шт.

37

A61197

O-RING,1.78mm Thk x 27mm ID

1-3/64 x 1-3/16 x 1/16"

1шт.

38

A62226

TUBE

, Serial Range: cab-compressor

1шт.

39

F63181

SCREEN evaporator, rear

1шт.

40

A42904

SCREEN evaporator, front

1шт.

41

NSS

NOT SOLD SEPARAT

TAPE screens, 2" wide x 3" long

2шт.

42

A42903

PAD foam core spacer

3шт.

43

F89639

TRAY

PAN condensate

1шт.

44

NSS

NOT SOLD SEPARAT

HOSE drip, 75" long, Order A42698

2шт.

A42698

HOSE

drip, 50' roll

1шт.

46

F63228

VALVE drip hose

2шт.

47

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP hose, 9/16 to 1-1/16'

2шт.

48

A42628

FILLER plenum, R.H.

1шт.

48

A42629

FILLER plenum, L.H.

1шт.

49

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

4шт.

50

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

51

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

4шт.

55

A61291

THERMOSTAT

high temperature

1шт.

56

A61789

CLAMP

thermostat

1шт.
