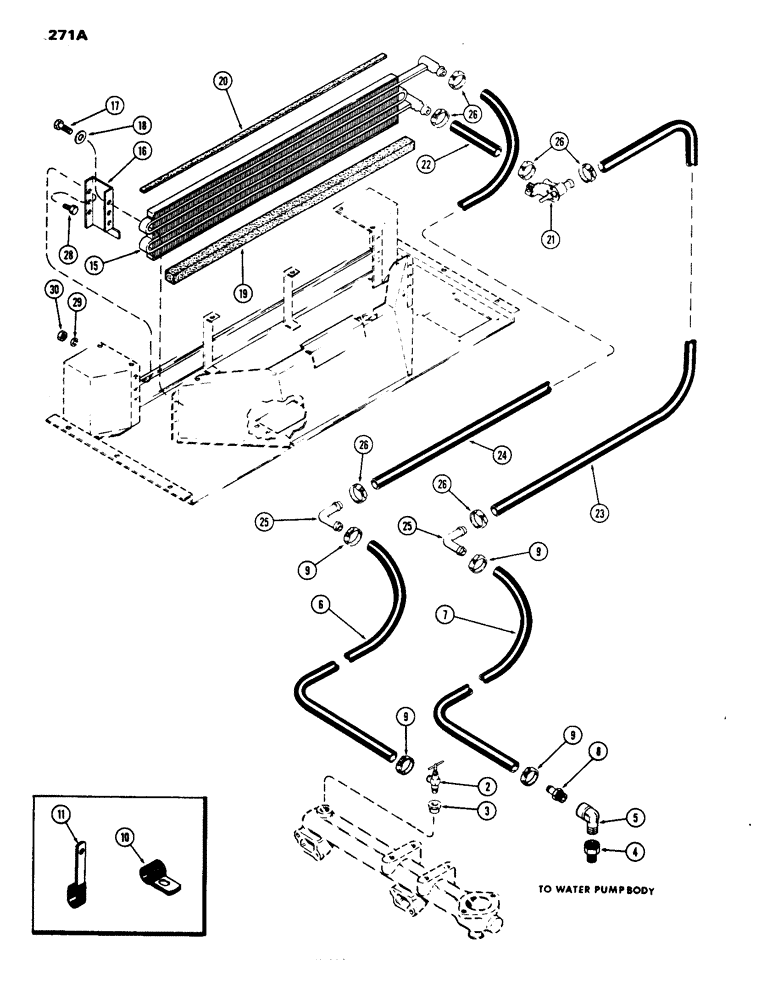

Запчасти Case IH 1070 (271A) - CAB, PLENUM, W/HEATER, HINSON (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
A60153
ATTACHMENT heater, machinery item, Includes Ref. 2 - 26
1шт.
A60125
HEATER attaching parts, machinery item, Includes Ref. 2 - 11
1шт.
2
A16764
VALVE
water manifold, diesel and gas
1шт.
3
221-1056
BUSHING
water manifold, diesel only
1шт.
5
221-414
FITTING,90 Degree, 1/2"-14, NPT
ELBOW 90 deg. street, at water pump
1шт.
6
NSS
NOT SOLD SEPARAT
HOSE heater to water manifold, Order A42610, Serial Range: cut-43"
1шт.
7
NSS
NOT SOLD SEPARAT
HOSE heater to water pump, Order A42610, Serial Range: cut-46"
1шт.
8
217-153
FITTING,5/8" Hose Barb x 1/2" Male NPTF
CONNECTOR heater hose at water pump
1шт.
9
214-253
HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm
CLAMP heater hose, 9/16" to 1-1/16"
4шт.
10
A60824
CLIP
hose, diesel and gas
1шт.
11
R14668
CLAMP
hose, 2 used w/ gas and 1 used w/ diesel
2шт.
15
A42611
CORE
cab heater
1шт.
16
A42612
FILLER
plenum, R.H., w/ heater
1шт.
16
A42613
FILLER
plenum, L.H., w/ heater
1шт.
17
113-122
BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5
3шт.
18
195-103
WASHER,5/16"
3/8 x 7/8 x 1/32"
3шт.
19
A42912
FOAM, Serial Range: core-plenum
1шт.
20
A42905
FOAM
core top, 1/8 x 1/2 x 50 ft. roll
1шт.
21
A42609
VALVE
heater, Order F63865
1шт.
22
NSS
NOT SOLD SEPARAT
HOSE heater, 7-1/2", Order A42610
1шт.
23
NSS
NOT SOLD SEPARAT
HOSE heater, 72", Order A42610
1шт.
24
NSS
NOT SOLD SEPARAT
HOSE heater, 78", Order A42610
1шт.
25
A60823
ELBOW
hose
2шт.
26
214-256
HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm
CLAMP hose, 1-3/16 to 1-3/4"
6шт.
A42614
CABLE
heater control, See Figures 274, 275A, 276, 277A
1шт.
NSS
NOT SOLD SEPARAT
DECAL plenum instrument panel
1шт.
A42610
LARGE HOSE
HOSE heater, 5/8 x 1 x 50' roll
1шт.
28
113-101
BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5
1шт.
29
192-20
LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND
WASHER, LOCK, 5/16"
1шт.
30
9635082
NUT,5/16" - 18, Gr 5
1шт.
Выбрано товаров: 31
