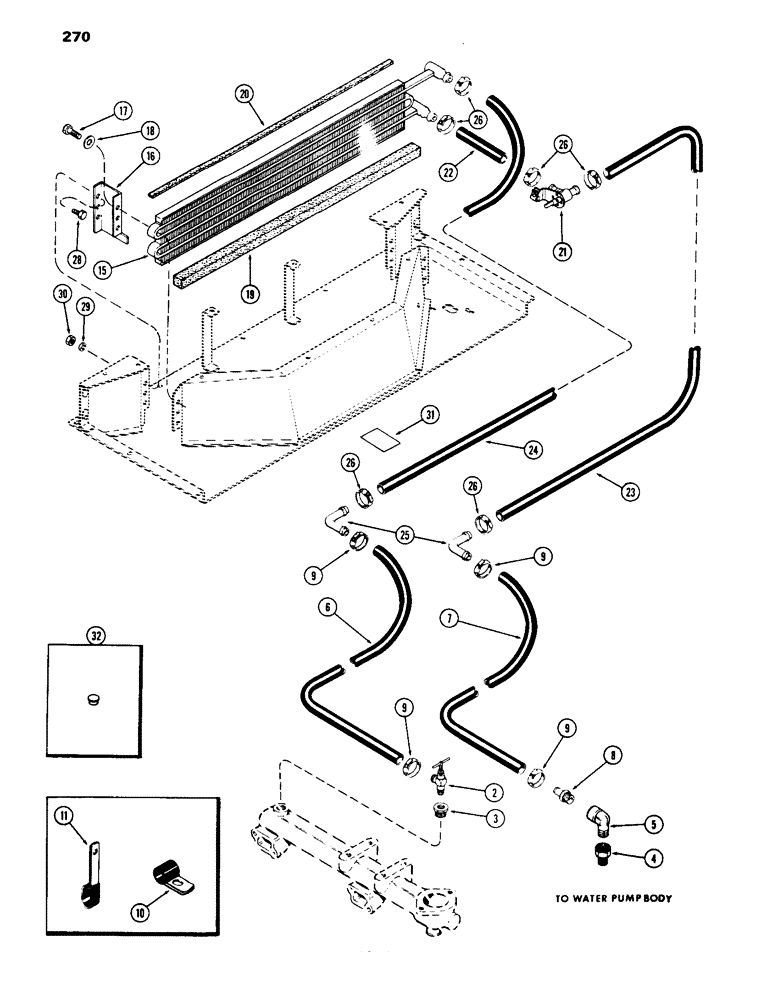

Запчасти Case IH 1070 (270) - CAB, PLENUM, W/HEATER, BETTENDORF (09) - CHASSIS/ATTACHMENTS

A60153

ATTACHMENT heater, machinery item, Includes Ref. 2 - 26

1шт.

A60125

HEATER attaching parts, machinery item, Includes Ref. 2 - 11

1шт.

2

A16764

VALVE

water manifold

1шт.

3

221-1056

BUSHING

reducing, Serial Range: 1/2-3/8"

1шт.

4

221-60

TUBE

BUSHING reducing, 3/4 to 1/2", at water pump

1шт.

5

221-414

FITTING,90 Degree, 1/2"-14, NPT

ELBOW 90 deg. street, at water pump

1шт.

6

NSS

NOT SOLD SEPARAT

HOSE heater to water manifold, 43" long, Order A42610

1шт.

7

NSS

NOT SOLD SEPARAT

HOSE heater to water pump, 46" long, Order A42610

1шт.

8

217-153

FITTING,5/8" Hose Barb x 1/2" Male NPTF

CONNECTOR heater hose at water pump

1шт.

9

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP heater hase, 9/16 to 1-1/16"

4шт.

10

A60824

CLIP

hose

1шт.

11

R14668

CLAMP

hose, 2 used w/ gas and 1 used w/ diesel

2шт.

15

A42611

CORE

heater

1шт.

16

A42612

FILLER

plenum, R.H.

1шт.

16

A42613

FILLER

plenum, L.H.

1шт.

17

113-122

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

3шт.

18

195-103

WASHER,5/16"

3/8 x 7/8 x 1/32"

3шт.

19

A42912

FOAM, Serial Range: core-plenum

1шт.

20

A42905

FOAM

core top, 1/8 x 1/2 x 50' roll

1шт.

21

A42609

VALVE

heater, Order F63865

1шт.

22

NSS

NOT SOLD SEPARAT

HOSE heater, 7-1/2" long, Order A42610

1шт.

23

NSS

NOT SOLD SEPARAT

HOSE heater, 72" long, Order A42610

1шт.

24

NSS

NOT SOLD SEPARAT

HOSE heater, 78" long, Order A42610

1шт.

25

A60823

ELBOW

hose

2шт.

26

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP hose, 1-3/16 to 1-3/4"

6шт.

A42614

CABLE

heater control, See Figures 274, 275A, 276, 277A

1шт.

NSS

NOT SOLD SEPARAT

DECAL instrument panel

1шт.

A42610

LARGE HOSE

HOSE heater, 5/8 x 1 x 50' roll

1шт.

28

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

1/4 x 1-1/4" N.C. hex

4шт.

29

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

30

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

4шт.

31

NSS

NOT SOLD SEPARAT

TAPE drip pan holes, 2" wide x 3" long

2шт.

32

353-408

PLUG,Dome, .750" hole, Nylon

post holes, 3/4"

2шт.
