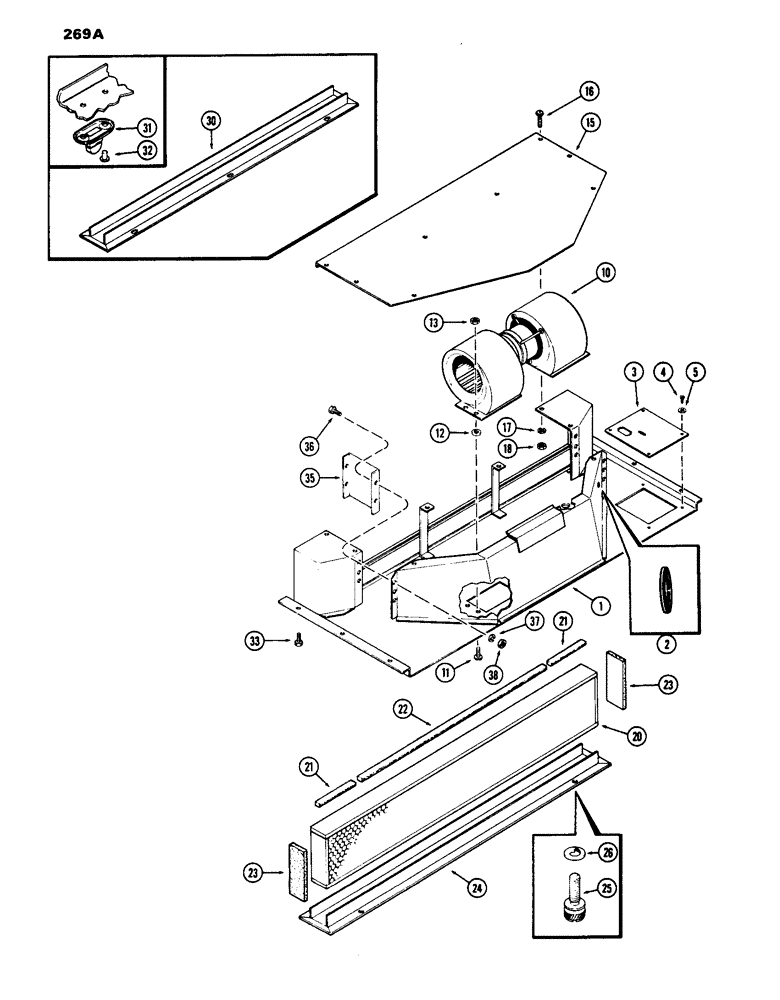

Запчасти Case IH 1070 (269A) - CAB, PLENUM, W/O HEATER OR AIR CONDITIONER, HINSON (09) - CHASSIS/ATTACHMENTS

1

A42673

AIR TUBE

PLENUM cab

1шт.

2

A42502

GROMMET

1шт.

3

A42542

PANEL plenum access

1шт.

4

187-1052

SELF-TAP SCREW,Sltd Pan, Hd, #8 x 5/8"

SCREW, no. 8 x 5/8" pan hd. sltd.

4шт.

5

195-104

WASHER,3/8"

7/16 x 1 x 5/64"

4шт.

10

NSS

NOT SOLD SEPARAT

BLOWER cab, See Figure 282

1шт.

11

175-400

SCREW,Sl Truss Hd, 1/4" - 20 x 1/2"

1/4-20 x 1/2" sltd. truss. hd.

4шт.

12

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

13

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

4шт.

15

A42672

COVER plenum

1шт.

16

175-400

SCREW,Sl Truss Hd, 1/4" - 20 x 1/2"

1/4-20 x 1/2" slotted truss hd.

8шт.

17

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

8шт.

18

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

8шт.

20

NLS

NO LONGER SERVICED

air

1шт.

21

NSS

NOT SOLD SEPARAT

MOLDING cab, 5", Order A42905

2шт.

22

NSS

NOT SOLD SEPARAT

MOLDING cab, 30", Order A42905

1шт.

23

A42909

MOULDING cab, 6"

2шт.

24

A42655

DOOR filter, 1st used cab serial no. C1000

1шт.

25

A42656

SCREW ASSY. door, used w/ A42655 door, Includes Ref. 26

4шт.

26

A61045

RETAINER

WASHER retainer, used w/ A42655 door

4шт.

30

A42551

DOOR filter, used prior to cab serial no. C1000

1шт.

31

A42501

BUTTON door, used w/ A42551 door

6шт.

32

151-526

RIVET,Pop, 1/8" x .337"

(Used w/A42501 button) Pop, 1/8" x .337"

12шт.

33

173-204

SCREW,Sl Rnd Hd, #10 - 24 x 3/4"

no. 10 x 3/4" N.C. rd. hd. mach.

6шт.

35

A42532

FILLER plenum, R.H. and L.H., w/o heater and air conditioner

2шт.

36

113-101

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

1шт.

37

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

38

9635082

NUT,5/16" - 18, Gr 5

1шт.
