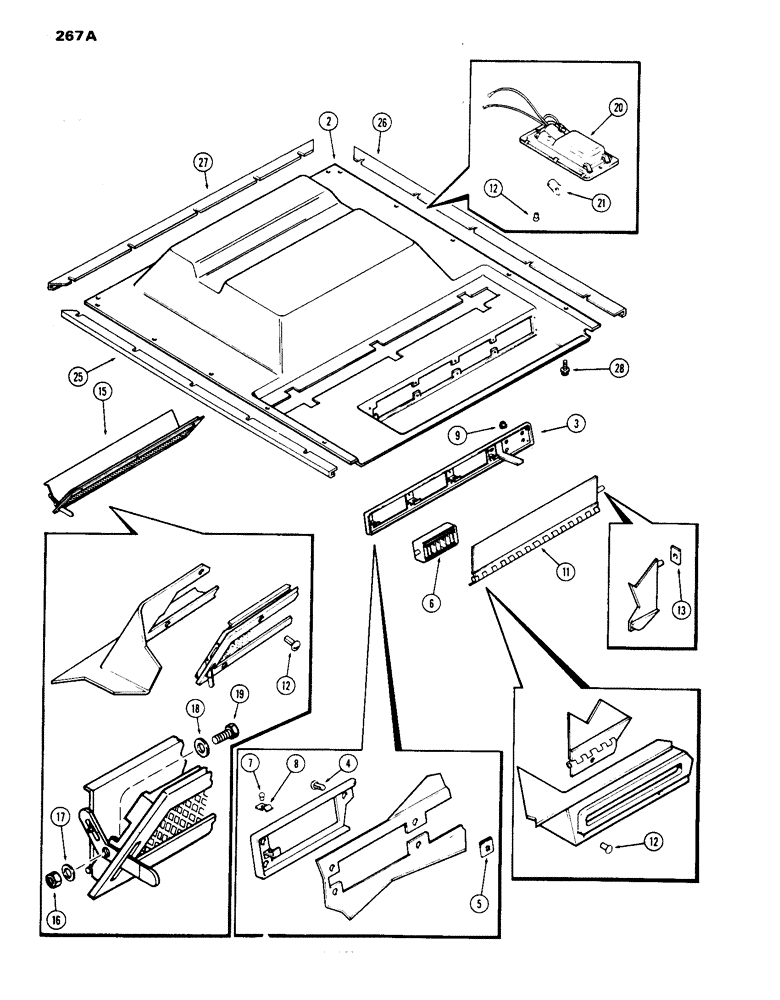

Запчасти Case IH 1070 (267A) - CAB, HEADLINER, HINSON (09) - CHASSIS/ATTACHMENTS

NSS

NOT SOLD SEPARAT

HEADLINER ASSY. cab, Includes Ref. 2 - 25

1шт.

2

A42533

HEADLINER cab, molded

1шт.

3

A42641

PANEL

instrument, Order A42552

1шт.

4

173-204

SCREW,Sl Rnd Hd, #10 - 24 x 3/4"

no. 10 x 3/4" N.C. rd. hd.

10шт.

5

131-861

SPRING NUT,Tinn, U, #10-24

10шт.

6

A42574

DEFLECTOR

panel air, Order F89673

3шт.

7

NSS

NOT SOLD SEPARAT

RIVET pop, air deflector

6шт.

8

A42575

CLIP

air deflector

6шт.

9

A42590

PLUG

panel, used w/o heater

2шт.

11

A42550

DEFLECTOR defroster

1шт.

12

151-526

RIVET,Pop, 1/8" x .337"

12шт.

13

131-624

NUT

3/16 tinnerman speed

1шт.

15

A42690

RETURN air, headliner, Replaces A42547, Includes Ref. 19

1шт.

16

131-48

LOCK NUT,1/4"-20, GB

NUT lock, 1/4" N.C. hex.

1шт.

17

A42691

WASHER spring

1шт.

18

195-102

WASHER,1/4"

5/16 x 3/4 x 1/16"

1шт.

19

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

20

A42658

INTERIOR LIGHT

LIGHT dome, Replaces A42503, Includes Ref. 21

1шт.

21

A41742

BULB

dome light

1шт.

25

A42686

ORNAMENTAL STRIP

TRIM headliner, R.H., Replaces A42540

1шт.

26

A42687

ORNAMENTAL STRIP

TRIM headliner, L.H., Replaces A42541

1шт.

27

A42685

ORNAMENTAL STRIP

TRIM headliner, rear, Replaces A42538

1шт.

28

A42688

no. 10 x 9/16" hex. hd. tapping, w/ washer

19шт.
