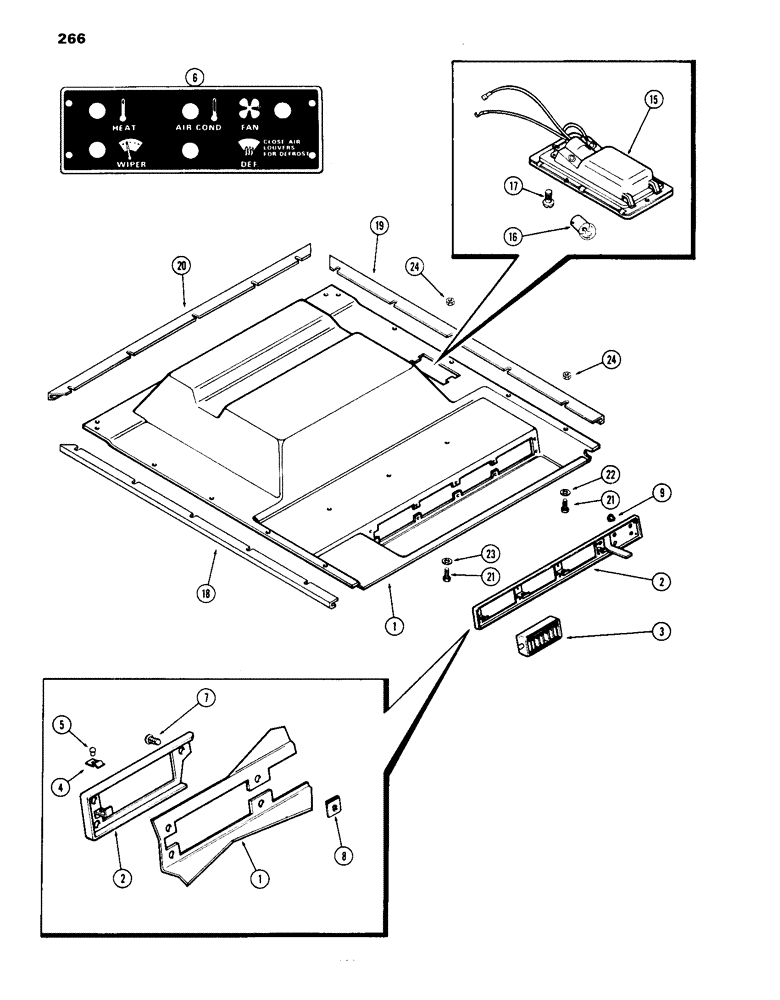

Запчасти Case IH 1070 (266) - CAB, HEADLINER, BETTENDORF (09) - CHASSIS/ATTACHMENTS

F89664

CAB

HEADLINER ASSY. cab, Includes Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

HEADLINER cab

1шт.

F63326

PROTECTIVE COVER

COVER headliner acoustical, See Figure 264

1шт.

2

A42641

PANEL

ASSY. instrument, Order A42552, Includes Ref. 3 - 6

1шт.

3

F89673

GUARD

LOUVER instrument panel

3шт.

4

A42575

CLIP

louver mounting

6шт.

5

151-502

RIVET,Pop, 1/8" x 5/16"

pop

6шт.

6

321-1914

DECAL

insturment panel

1шт.

7

173-281

SCREW,Phil Rnd Hd, #10 - 24 x 3/4"

no. 10 x 3/4" N.C. Phillips

10шт.

8

131-146

NUT

no. 10-24 x "U" type tinnerman

10шт.

9

353-403

PLUG,Dome, .437" hole, Nylon

Panel, Switch holes Dome, .437" hole, Nylon

1шт.

15

A42658

INTERIOR LIGHT

LIGHT ASSY. dome, Includes Ref. 16

1шт.

16

A41742

BULB

dome light

1шт.

17

151-502

RIVET,Pop, 1/8" x 5/16"

pop

2шт.

18

F63270

ORNAMENTAL STRIP

TRIM headliner, R.H.

1шт.

19

F63271

ORNAMENTAL STRIP

TRIM headliner, L.H.

1шт.

20

F63276

ORNAMENTAL STRIP

TRIM headliner, rear

1шт.

21

163-13

SCREW,Hex, #10 - 24 x 3/4"

no. 10 x 3/4" N.C. hex.

18шт.

22

195-512

WASHER,#10

7/32 x 7/16 x 1/16"

18шт.

23

195-102

WASHER,1/4"

5/16 x 3/4 x 1/16", headliner to plenum

3шт.

24

86625057

NUT,#10-24, GB

NUT, LOCK, #10-24, GB

18шт.
