Запчасти Case IH 1070 (016) - VALVE MECHANISM, (451B) DIESEL ENGINE (02) - ENGINE

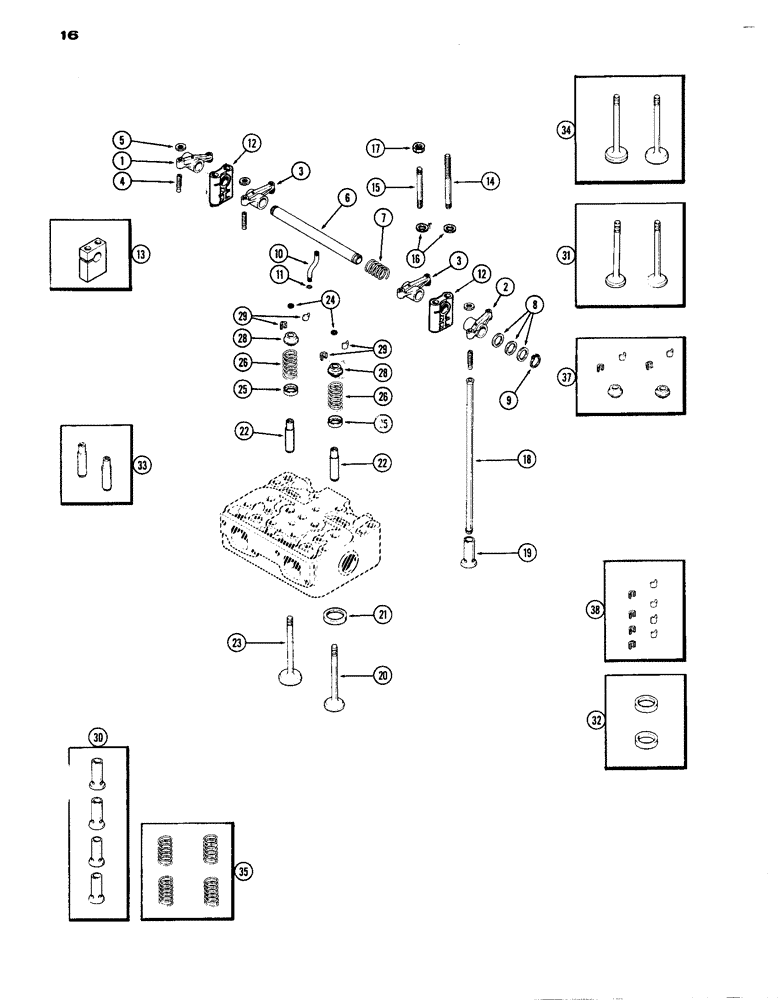

Схема запчастей Case IH 1070 - (016) - VALVE MECHANISM, (451B) DIESEL ENGINE (02) - ENGINE
13
22
12
28
30
29
38
16
28
25
34
14
25
11
32
24
18
8
17
2
26
22
29
26
4
31
7
15
6
9
23
33
12
37
5
3
1
3
20
10
21
35
19

Артикул

Название

Примечание

Количество

1

A58655

ARM

rocker, exhaust valve, 1st, 3rd and 5th cylinders

3шт.

2

A58656

ARM

rocker, exhaust valve, 2nd, 4th and 6th cylinders

3шт.

3

A58654

ARM

rocker, intake valve

6шт.

4

A21105

ADJUSTMENT SCREW,3/8" - 24 x 1 9/16"

SCREW rocker arm

12шт.

5

25-156

JAM NUT,Jam, 3/8"-24, G5

3/8" N.F. hex. jam

12шт.

6

A57532

SHAFT

ASSY. rocker arm

3шт.

7

A27877

SPRING

rocker arm shaft

3шт.

8

A27878

WASHER

rocker arm shaft

1шт.

9

B18206

SNAP RING,#87, Ext

Ring, Snap, , rocker arm shaft #87, Ext

6шт.

10

A58657

TUBE

rocker arm shaft oil

3шт.

11

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

rocker arm shaft oil tube

3шт.

12

A61128

BRACKET

rocker arm shaft, 1st used engine serial no. 2307267

6шт.

13

A27881

BRACKET

rocker arm shaft, used prior to engine serial no. 2307267

6шт.

14

A60885

STUD

rocker arm support, 7/16" N.C. x 5-7/8"

6шт.

15

A58659

STUD

rocker arm support, 7/16" N.C. x 4-5/16"

6шт.

16

195-29

WASHER,7/16"

15/32 x 59/64 x 1/16"

12шт.

17

25-107

NUT,7/16"-14, G5

7/16" N.C. hex.

12шт.

18

A58596

ROD

ASSY. push

12шт.

19

NSS

NOT SOLD SEPARAT

LIFTER push rod, Order Ref. 30

12шт.

20

NSS

NOT SOLD SEPARAT

VALVE exhaust, Order Ref. 31

6шт.

21

NSS

NOT SOLD SEPARAT

INSERT exhaust valve, Order Ref. 32

6шт.

22

NSS

NOT SOLD SEPARAT

GUIDE intake and exhaust valves, Order Ref. 33

12шт.

23

NSS

NOT SOLD SEPARAT

VALVE intake, Order Ref. 34

6шт.

24

A58628

SEAL,8mm ID x 13.77mm OD x 2.16mm Thk

valve stem

12шт.

25

A58623

SEAT

intake and exhaust valve springs, Order A66328

12шт.

26

NSS

NOT SOLD SEPARAT

SPRING intake and exhaust valves, Order Ref. 35

12шт.

28

NSS

NOT SOLD SEPARAT

RETAINER intake valve spring, Order Ref. 37

12шт.

29

NSS

NOT SOLD SEPARAT

LOCK valve spring, Order Ref. 38

24шт.

30

A21653

KIT

lifter, push rod, set of 4, std.

3шт.

30

A22463

KIT

lifter, push rod, set of 4, 0.010" oversize

3шт.

31

A42130

VALVE

KIT valve, exhaust, set of 2

3шт.

32

A57485

INSERT

KIT insert, exhaust valve, set of 2

3шт.

33

A41781

GUIDE

KIT guide, intake and exhaust, set of 2

6шт.

34

A42129

PACKAGE

KIT valve, intake, set of 2

3шт.

35

A42895

SPRING

KIT spring, intake and exhaust valves, set of 4

3шт.

37

A21657

LOCK

KIT retainer, intake valve, 2 rets. and 4 locks, Order A44645

6шт.

38

A40352

LOCK

KIT lock, valve springs, set of 8

3шт.

Выбрано товаров: 37
