(262) - INSULATION, FIREWALL

Запчасти Case IH 1070 (262) - INSULATION, FIREWALL (09) - CHASSIS/ATTACHMENTS

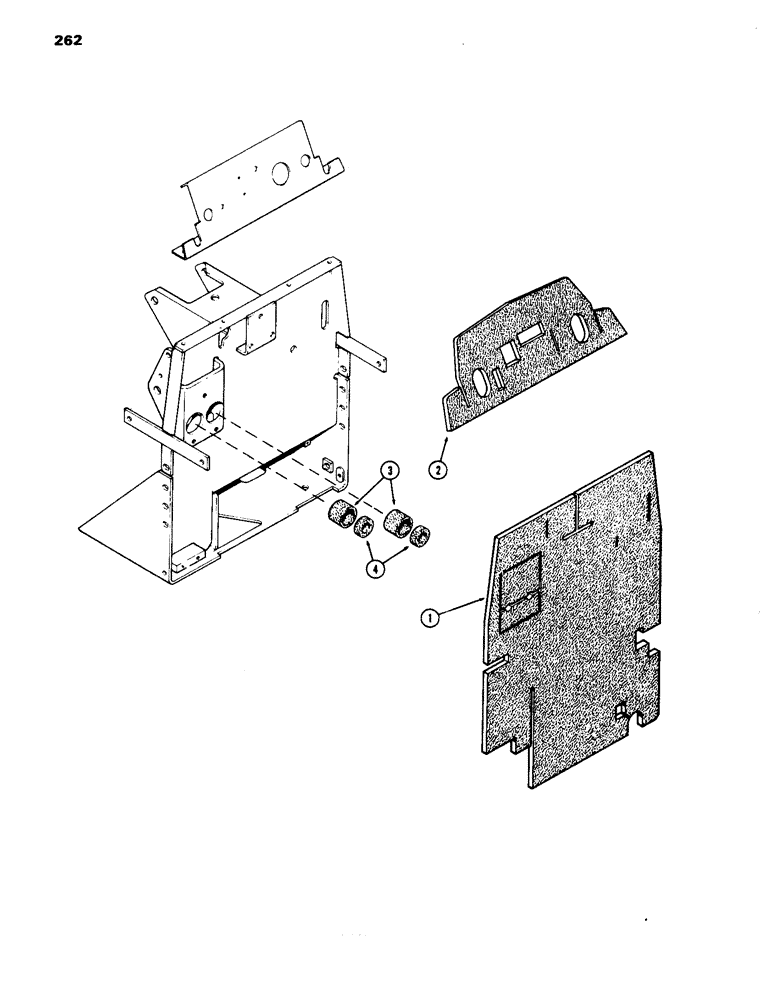

Схема запчастей Case IH 1070 - (262) - INSULATION, FIREWALL (09) - CHASSIS/ATTACHMENTS
1
3
4
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

A60816

CUSHION

PAD acoustical firewall, to be attached w/ adhesive 345-19

1шт.

2

A60817

CUSHION

PAD acoustical firewall baffle, to be attached w/ adhesive 345-19

1шт.

3

A61288

COLLAR

master cylinder air seal, outer

2шт.

4

A61287

COLLAR

master cylinder air seal, inner

2шт.

Выбрано товаров: 4
