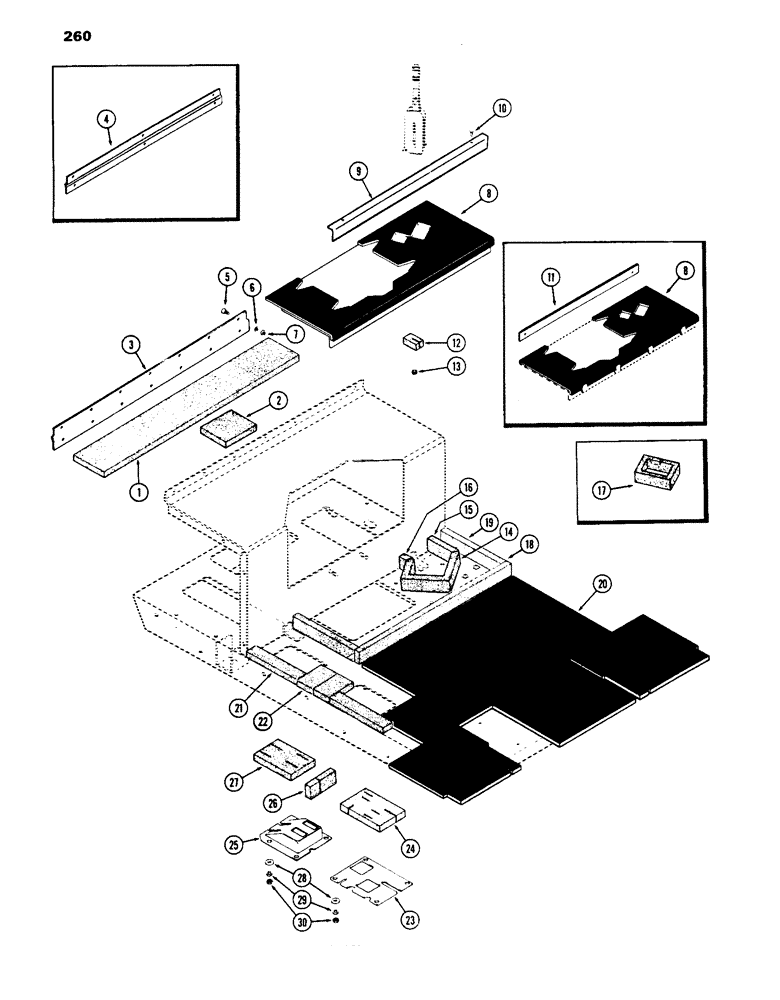

Запчасти Case IH 1070 (260) - INSULATION (09) - CHASSIS/ATTACHMENTS

1

A61699

SEAL

fuel tank sealing, to be attached w/ adhesive 345-22

1шт.

2

A62594

FOAM

fuel tank, top groove, to be attached w/ adhesive 345-22

1шт.

3

A62688

PLATE

cab to fuel tank cover, 1st used trac. ser. no. 8675001

1шт.

4

A60867

PLATE

cab to fuel tank cover, used prior to trac. ser. no. 8675001

1шт.

5

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

6шт.

6

92-5

LOCK WASHER,5/16"

6шт.

7

9635082

NUT,5/16" - 18, Gr 5

6шт.

8

A60821

MAT floor, rear, to be attached w/ adhesive 345-22

1шт.

9

A62461

FLOOR

ANGLE floor mat retaining, Replaces A60822, 1st used trac. ser. no. 8675001

1шт.

10

187-1060

SELF-TAP SCREW,Sltd Hex Hd, 1/4" x 3/4"

SCREW, 1/4 x 3/4" sltd. self-drill and tap

2шт.

11

A60822

RETAINER floor mats, Order A62461, used prior to trac. ser. no. 8675001

1шт.

12

A60819

FOAM

sealing, hand brake, to be attached w/ adhesive 345-22

1шт.

13

A60818

GROMMET

hand brake wire

1шт.

14

A62674

FOAM

hand brake sealing, Replaces A60829, to be attached w/ adhesive 345-22

1шт.

15

A62675

FOAM

hand brake sealing, Replaces A60829, to be attached w/ adhesive 345-22

1шт.

16

A62676

FOAM hand brake sealing, Replaces A60829, to be attached w/ adhesive 345-22

1шт.

17

A60829

FOAM hand brake sealing, 1 piece, Order (1) A62674, (1) A62675 and (1) A62676

1шт.

18

A60828

FOAM

seat support sealing, front

1шт.

19

A60827

FOAM

seat support sealing, sides

2шт.

20

A60820

MAT

floor, front, Order A135685, to be attached w/ adhesive 345-22

1шт.

21

A60814

FOAM

acoustical, console bottom, to be attached w/ adhesive 345-22

2шт.

22

A60815

FOAM

acoustical, console bottom, to be attached w/ adhesive 345-22

2шт.

23

A60810

COVER ASSY. console, front opening, Incldues Ref. 24

1шт.

24

A60812

FOAM

console, acoustical, to be attached w/ adhesive 345-22

1шт.

25

A61088

COVER ASSY. console, rear opening, Includes Ref. 26 and 27

1шт.

26

A60807

FOAM

console, acoustical, to be attached w/ adhesive 345-22

1шт.

27

A61090

FOAM

console, acoustical, to be attached w/ adhesive 345-22

1шт.

28

95-5

WASHER,3/8" x 7/8" x .083"

3/8 x 7/8 x 5/64"

8шт.

29

92-5

LOCK WASHER,5/16"

WASHER lock, 3/16"

8шт.

30

9635082

NUT,5/16" - 18, Gr 5

5/16" N.C. hex.

8шт.
