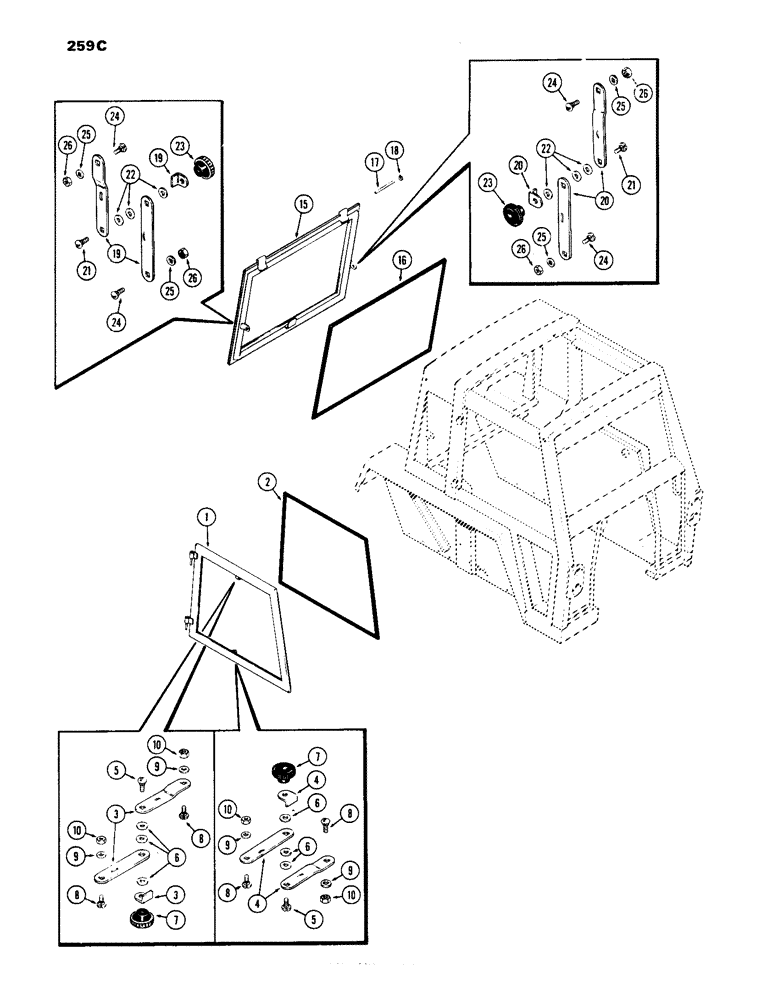

Запчасти Case IH 1070 (259C) - CAB, WINDOWS, BETTENDORF (09) - CHASSIS/ATTACHMENTS

1

F89672

WINDOW

ASSY. R.H., Includes Ref. 2

1шт.

2

NSS

NOT SOLD SEPARAT

WEATHERSTRIP window, 134-5/8", Order A42504

1шт.

A42504

TYRE/TIRE

WEATHERSTRIP window, 50' roll

1шт.

3

A42926

ARM

ASSY. window, upper, Includes Ref. 5 - 7

1шт.

4

A42927

ARM

ASSY. window, lower, Includes Ref. 5, 6 and 7

1шт.

5

A42923

CARRIAGE BOLT

BOLT, 5/16 x 7/8" N.C. carr

1шт.

6

F63299

WASHER

friction

3шт.

7

A42918

KNOB

regulator

1шт.

8

A42923

CARRIAGE BOLT

BOLT, 5/16 x 7/8" N.C. carr

4шт.

9

195-80

WASHER, 3/8 x 1-1/8 x 1/16"

4шт.

10

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT lock, 5/16" N.C. hex.

4шт.

15

F89665

WINDOW ASSY. rear, Includes Ref. 16

1шт.

16

NSS

NOT SOLD SEPARAT

WEATHERSTRIP window, 150-17/64", Order A42504

1шт.

A42504X

FILLING STRIP

WEATHERSTRIP window, 50' roll

1шт.

17

A42524

PIN,9.53mm OD x 119.38mm L

rear window hinge

2шт.

18

A42589

SNAP RING,#37, Ext

Ring, Snap, , hinge pin #37, Ext

4шт.

19

F63203

ARM

ASSY. rear window, R.H., Includes Ref. 21 and 22

1шт.

20

F63280

ARM

ASSY. rear window, L.H., Includes Ref. 21 and 22

1шт.

21

A42923

CARRIAGE BOLT

BOLT, 5/16 x 7/8" N.C. carr

1шт.

22

F63299

WASHER

friction

3шт.

23

A42918

KNOB

regulator

2шт.

24

A42923

CARRIAGE BOLT

BOLT, 5/16 x 7/8" N.C. carr

4шт.

25

195-80

WASHER, 3/8 x 1-1/8 x 1/16"

4шт.

26

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT lock, 5/16" N.C. hex.

4шт.
