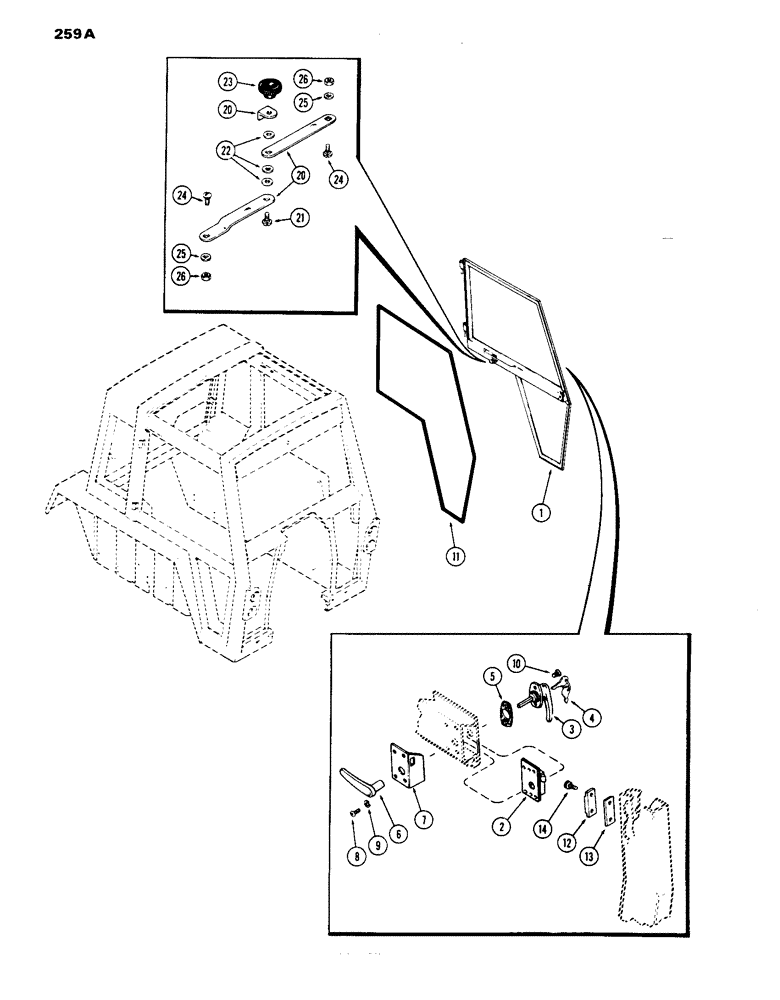

Запчасти Case IH 1070 (259A) - CAB, DOOR, HINSON (09) - CHASSIS/ATTACHMENTS

1

A42559

DOOR ASSY. cab, Includes Ref. 2 - 11

1шт.

2

A42661

NUT

LOCK door, Replaces A42587, Order (1) F89710 and (4) 173-237

1шт.

3

A42572

HANDLE

door, locking, Includes Ref. 4

1шт.

4

A42653

SET OF 2 KEYS

KEYS door locking

2шт.

5

A42913

GASKET

door handle

1шт.

6

A42588

HANDLE

door, inside, Order F63925

1шт.

7

A42674

COVER

door latch, Replaces A42522

1шт.

8

173-212

SCREW,Sl Rnd Hd, #10 - 24 x 1/2"

no. 10 x 1/2" N.C. rd. hd.

4шт.

9

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

4шт.

10

179-153

SCREW,Cross Oval Hd, #10 - 24 x 1/2"

no. 10-24 x 1/2" oval hd.

2шт.

11

NSS

NOT SOLD SEPARAT

WEATHERSTRIP door, 182", Order A42510

1шт.

A42510

FOAM

WEATHERSTRIP door, 50' roll

1шт.

12

A42914

PLATE

door striker, Replaces A42581

1шт.

13

A42696

SHIM

door latch

3шт.

14

193-535

SCREW,SEMS, Slot Flt Hd, 1/4"-20 x 3/4"

1/4 x 3/4" N.C., slotted flat hd. sems

2шт.

20

A42927

ARM

ASSY. door hinge, Includes Ref. 21, 22 and 23

1шт.

21

A42923

CARRIAGE BOLT

BOLT window adjusting

1шт.

22

F63299

WASHER

friction

3шт.

23

A42918

KNOB

window adjusting

1шт.

24

A42923

CARRIAGE BOLT

BOLT, 5/16 x 7/8" N.C. carr

2шт.

25

195-103

WASHER,5/16"

3/8 x 7/8 x 3/32"

2шт.

26

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT lock, 5/16" hex.

2шт.
