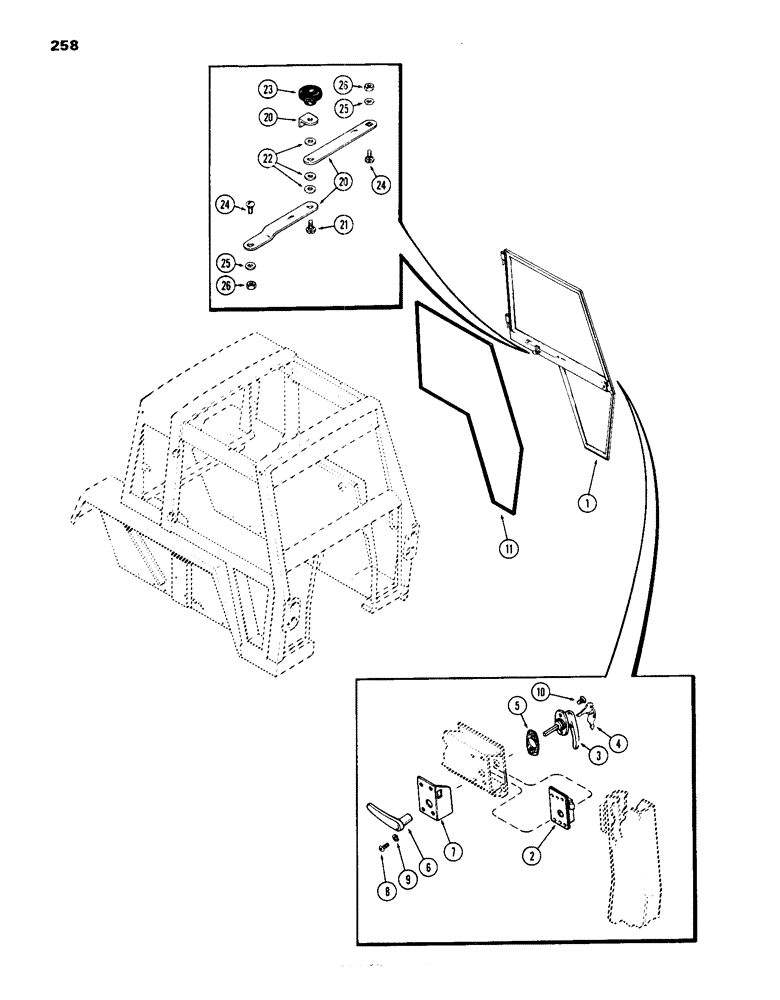

Запчасти Case IH 1070 (258) - CAB, DOOR, BETTENDORF (09) - CHASSIS/ATTACHMENTS

1

F89671

DOOR

ASSY. cab, Includes Ref. 2 - 11

1шт.

2

A42661

NUT

LOCK door, Order (1) F89710 and (4) 173-237

1шт.

3

A42572

HANDLE

door, locking

1шт.

4

A42653

SET OF 2 KEYS

KEYS door locking

2шт.

5

A42913

GASKET

door handle

1шт.

6

A42588

HANDLE

door, inside, Order F63925

1шт.

7

A42674

COVER

door latch

1шт.

8

173-212

SCREW,Sl Rnd Hd, #10 - 24 x 1/2"

no. 10 x 1/2" N.C. rd. hd.

4шт.

9

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

4шт.

10

179-154

SCREW,Cross Oval Hd, #10 - 24 x 5/8"

no. 10 x 5/8" N.C. phillips

2шт.

11

NSS

NOT SOLD SEPARAT

WEATHERSTRIP door, 180-1/2", Order A42504

1шт.

A42504X

FILLING STRIP

WEATHERSTRIP door, 50' roll

1шт.

20

F63203

ARM

ASSY. door, Includes Ref. 21 and 22

1шт.

21

A42923

CARRIAGE BOLT

BOLT, 5/16 x 7/8" N.C. carr.

1шт.

22

F63299

WASHER

friction

3шт.

23

A42918

KNOB

regulator

1шт.

24

A42923

CARRIAGE BOLT

BOLT, 5/16 x 5/16" N.C. carr.

2шт.

25

195-80

WASHER, 3/8 x 1-1/8 x 1/16"

2шт.

26

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT lock, 5/16" N.C. hex.

2шт.
