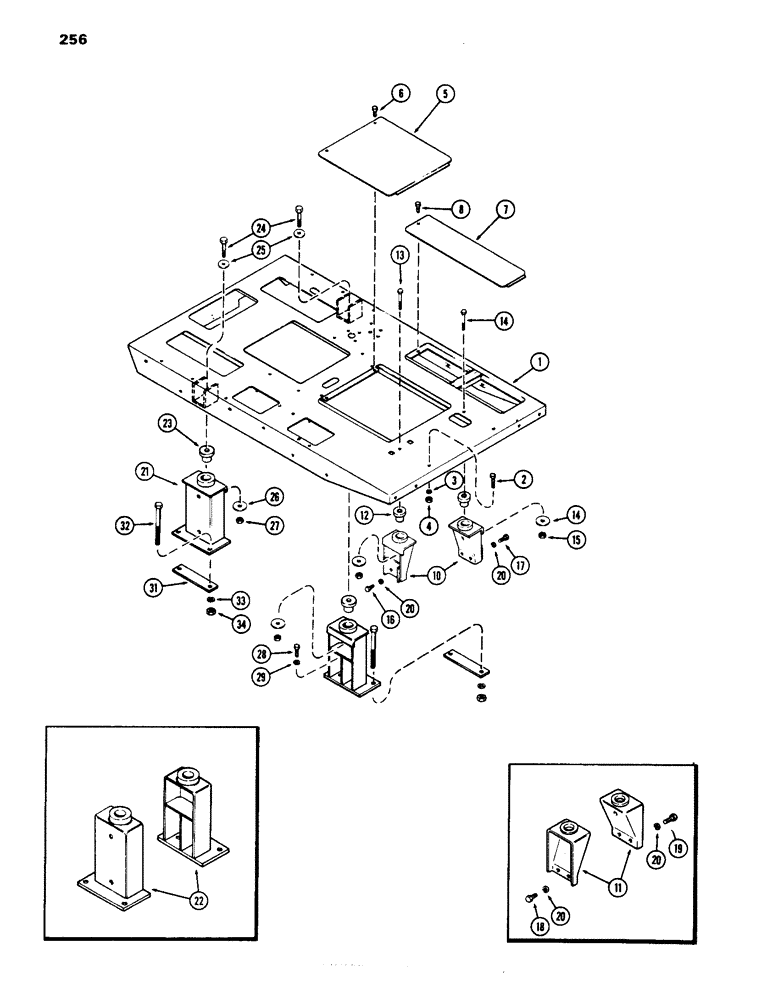

Запчасти Case IH 1070 (256) - PLATFORM (09) - CHASSIS/ATTACHMENTS

1

A62150

DECK ASSY. platform, Replaces A60672

1шт.

2

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

3

92-5

LOCK WASHER,5/16"

2шт.

4

9635082

NUT,5/16" - 18, Gr 5

5/16" N.C. hex.

2шт.

5

A61175

COVER ASSY. platform

1шт.

6

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

2шт.

7

A59507

GUARD

COVER ASSY. battery

1шт.

8

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

1шт.

10

A62652

MOUNTING PARTS

MOUNT ASSY. platform, front, 1st used trac. ser. no. 8675001

2шт.

11

A59510

BRACKET

MOUNT ASSY. platform, front, used prior to trac. ser. no. 8675001

2шт.

12

A59514

RUBBER BUSHING,13.49mm ID x 34.29mm OD x 41.1mm L

MOUNT rubber, front

2шт.

13

13-860

BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 5

2шт.

14

195-36

WASHER

9/16 x 1-7/8 x 1/8"

2шт.

15

25-108

NUT,1/2"-13, G5

1/2" N.C. hex.

2шт.

16

13-826

BOLT,Hex, 1/2" - 13 x 1-5/8", Gr 5

Used w/A62652 mount Hex, 1/2"-13 x 1 5/8", G5

2шт.

17

13-822

BOLT,Hex, 1/2" - 13 x 1-3/8", Gr 5, Full Thd

Used w/ A62652 mount Hex, 1/2"-13 x 1 3/8", G5, Full Thd

2шт.

18

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Used w/ A59510 mount Hex, 1/2"-13 x 1 1/2", G5, Full Thd

2шт.

19

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Used w/ A59510 mount Hex, 1/2"-13 x 1 1/4", G5, Full Thd

2шт.

20

92-8

LOCK WASHER,1/2"

4шт.

21

A62656

ANCHOR

MOUNT ASSY. platform, rear, 1st used trac. ser. no. 8675001

2шт.

22

A60870

MOUNT ASSY. platform, rear, used prior to trac. ser. no. 8675001

2шт.

23

A59516

RUBBER MOUNTING,63.5mm OD x 50.8mm L

MOUNT rubber, rear

2шт.

24

13-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

2шт.

25

95-10

WASHER,5/8"

11/16 x 1-3/4 x 9/64"

2шт.

26

A59517

WASHER,16.66mm ID x 57.15mm OD x 6.35mm Thk

21/32 x 2-1/4 x 1/4"

2шт.

27

25-1052

NUT, 5/8" N.C. hex

2шт.

28

13-818

BOLT,Hex, 1/2" - 13 x 1-1/8", Gr 5, Full Thd

4шт.

29

92-8

LOCK WASHER,1/2"

4шт.

31

A60874

PLATE platform rear mount

2шт.

32

13-8136

BOLT,Hex, 1/2" - 13 x 8-1/2", Gr 5

4шт.

33

92-8

LOCK WASHER,1/2"

4шт.

34

25-108

NUT,1/2"-13, G5

1/2" N.C. hex.

4шт.
