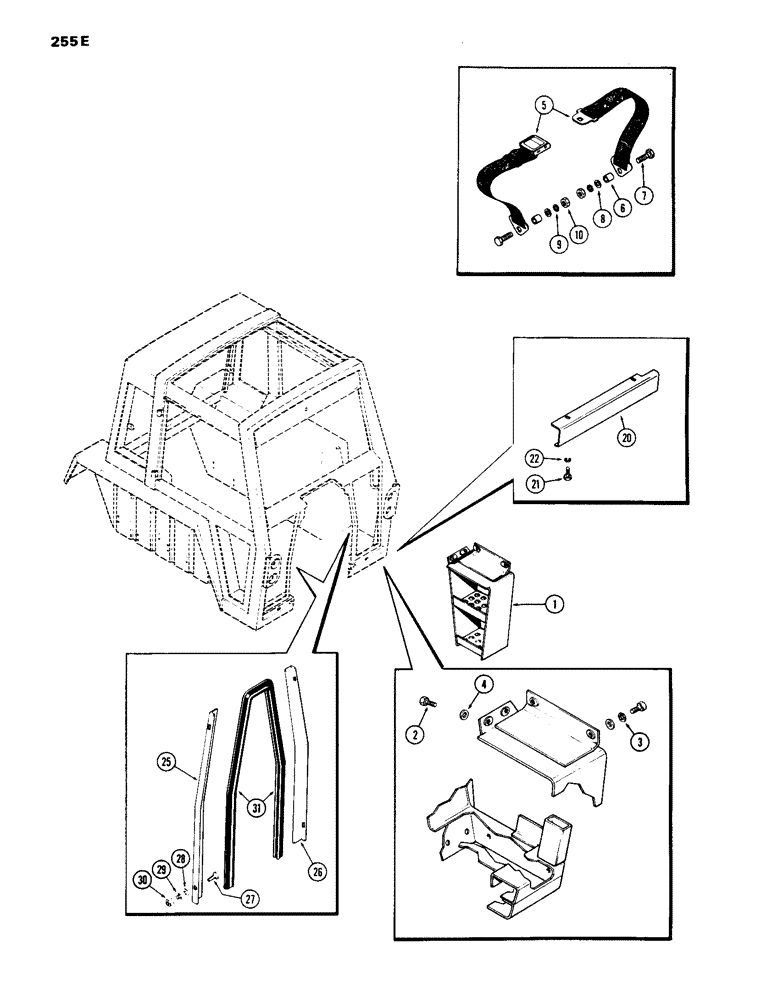

Запчасти Case IH 1070 (255E) - CAB, LOWER SHEET METAL, HINSON (09) - CHASSIS/ATTACHMENTS

1

A61143

STEP

weldment

1шт.

2

13-206

SCREW

BOLT, 3/8 x 3/4" N.C. hex.

4шт.

3

92-6

LOCK WASHER,3/8"

4шт.

4

195-526

WASHER,7/16" x 7/8" x .083"

7/16 x 7/8 x 3/32"

4шт.

5

A60906

BELT

SAFETY BELT

1шт.

6

A60907

BUSHING

SPACER anchor seat bolt

2шт.

7

A61946

STEP BOLT

BOLT seat belt shoulder, Replaces A60908

2шт.

8

195-529

WASHER,7/16", SAE

15/32 x 59/64 x 1/16"

2шт.

9

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

10

425-117

NUT,7/16"-20, G5

7/16" N.C. hex.

2шт.

20

A42523

PANEL battery access

1шт.

21

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

22

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

25

A61138

FILLER dust shield, R.H.

1шт.

26

A61139

FILLER dust shield, L.H.

1шт.

27

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

4шт.

28

95-3

WASHER,#12

1/4 x 9/16 x 3/64"

4шт.

29

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

30

25-104

NUT,1/4"-20, G5

4шт.

31

A61140

SEAL

dust shield, Order A62885, to be attached w/ adhesive 345-22

1шт.
