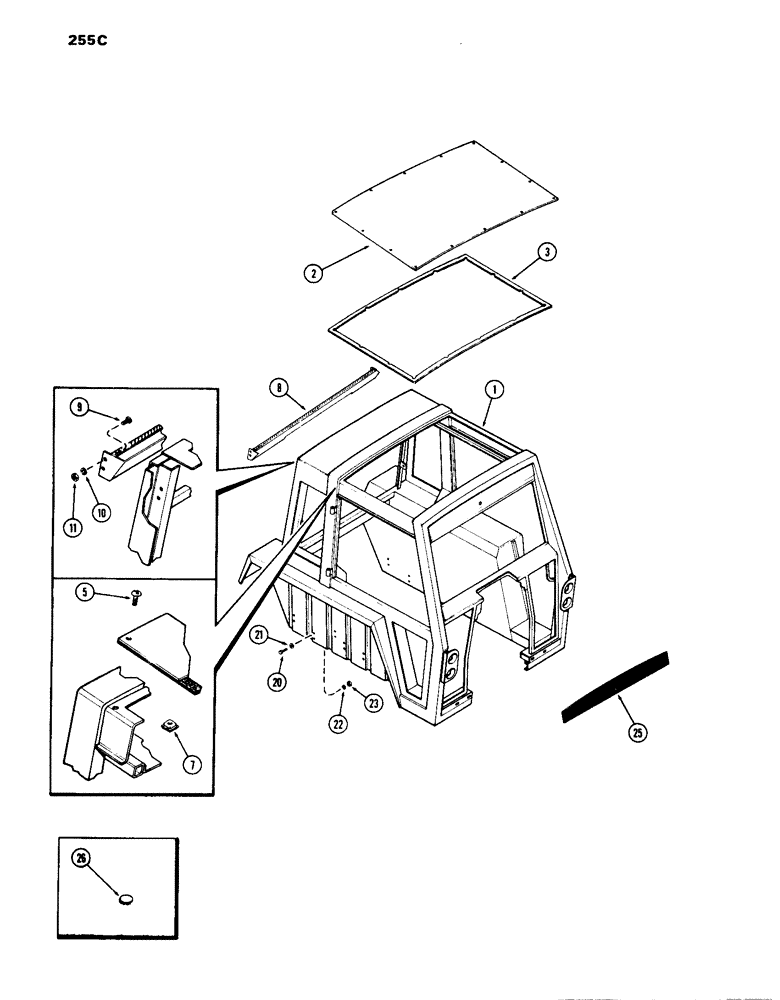

Запчасти Case IH 1070 (255C) - CAB, UPPER SHEET METAL, HINSON (09) - CHASSIS/ATTACHMENTS

A62550

CAB w/o heater or air conditioner, machinery item, used trac. ser. no., Serial Range: 8670526-8676652

1шт.

A60800

CAB w/o heater or air conditioner, machinery item, used prior to trac. ser. no. 8670526

1шт.

A62551

CAB w/air conditioner, machinery item, used trac. ser. nos., Serial Range: 8670526-8676737

1шт.

A60801

CAB w/air conditioner, machinery item, used prior to trac. ser. no. 8670526

1шт.

A62552

CAB w/heater, machinery item, used trac. ser. nos., Serial Range: 8670526-8676655

1шт.

A60802

CAB w/heater, machinery item, used prior to trac. ser. no. 8670526

1шт.

A62553

CAB w/heater and air conditioner, machinery item, used trac. ser. nos., Serial Range: 8670526-8676605

1шт.

A60803

CAB w/heater and air conditioner, machinery item, used prior to trac. ser. no. 8670526

1шт.

1

NSS

NOT SOLD SEPARAT

FRAME ASSY. cab

1шт.

2

A42684

ROOF

ASSY. cab, Replaces A42555, Includes Ref. 3

1шт.

3

NSS

NOT SOLD SEPARAT

WEATHERSTRIP roof, 1/4 x 3/8", Order A42676

1шт.

A42676

SEAL

DOORTITE rood, 25' roll, Replaces A42549

1шт.

5

163-4

SCREW,Hex, #10 - 32 x 5/8"

1/4 x 1" N.C. hex. washer hd. mach.

18шт.

7

131-617

NUT,Ret, J, 1/4"-20

1/4" "J" type tinnerman

18шт.

8

NSS

NOT SOLD SEPARAT

INTAKE air, cab

1шт.

9

175-403

SCREW,Sl Truss Hd, 1/4" - 20 x 3/4"

1/4 x 3/4" N.C. slotted truss hd.

4шт.

10

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

8шт.

11

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

8шт.

20

113-287

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 8

3/8 x 1-3/4" N.C. hex.

10шт.

20

113-268

BOLT,Hex, 3/8" - 16 x 1", Gr 8, Full Thd

3/8 x 1" N.C. hex

6шт.

21

195-325

WASHER, 3/8 x 1-1/8 x 1/16"

16шт.

22

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

16шт.

23

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

14шт.

25

NSS

NOT SOLD SEPARAT

DECAL front panel decorative

1шт.

26

205-24

X

PLUG button, 17/32" dia.

2шт.
