Запчасти Case IH 1070 (014) - CYLINDER HEAD AND COVER, (451B) DIESEL ENGINE (02) - ENGINE

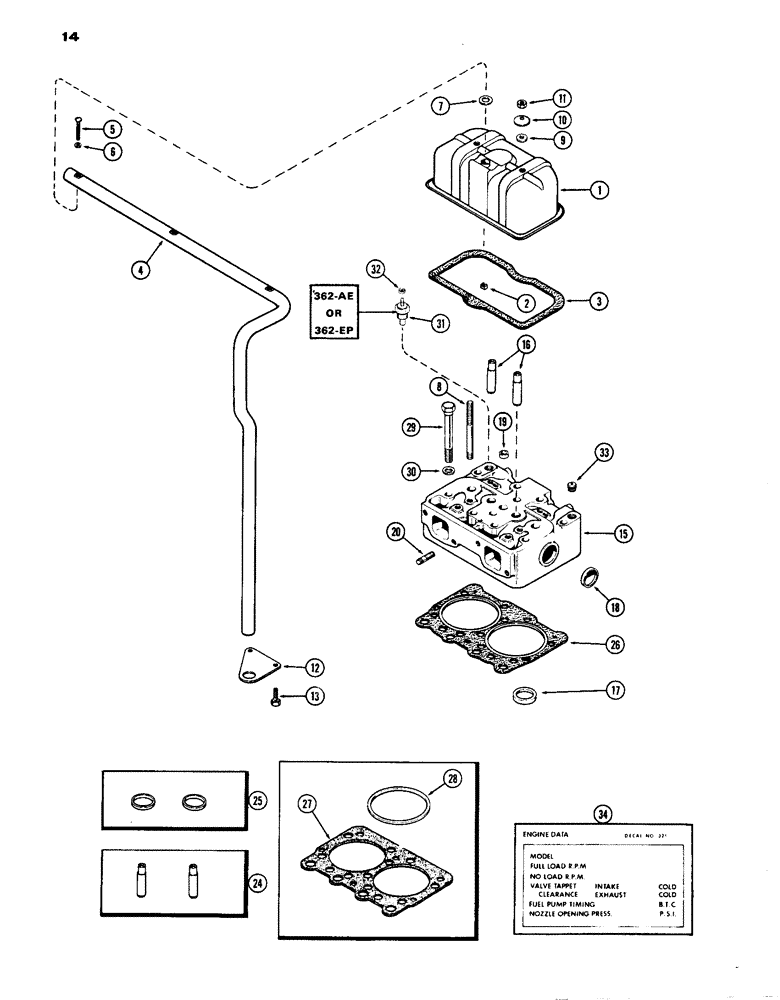

Схема запчастей Case IH 1070 - (014) - CYLINDER HEAD AND COVER, (451B) DIESEL ENGINE (02) - ENGINE
13
4
27
15
10
26
1
16
28
6
3
17
11
31
18
20
5
25
8
30
34
24
7
33
19
12
29
9
2
32

Артикул

Название

Примечание

Количество

1

A58929

COVER

ASSY. cylinder head, Includes Ref. 2

3шт.

2

131-114

SPRING NUT,Rtnr, 1/4" - 20, 0.25" High

NUT, 1/4" N.C. Tinnerman

1шт.

3

A65734

CYLINDER HEAD GASKET

cylinder head cover, Replaces A58928

3шт.

4

A59053

TUBE

breather

1шт.

5

75-440

SCREW

mach., 1/4 x 2-1/2" N.C. rd. hd.

3шт.

6

A34133

GASKET

breather tube screw

3шт.

7

A58635

GASKET,17.27mm ID x 32mm OD x 6.6mm Thk

, Serial Range: tube-cover

3шт.

8

A60885

STUD

rocker arm brkt. and cylinder head cover

6шт.

9

A23684

GASKET

GASKET cover stud

6шт.

10

A23683

WASHER

cover stud, beveled

6шт.

11

25-107

NUT,7/16"-14, G5

7/16" N.C. hex.

6шт.

12

A59054

BRACKET

breather tube

1шт.

13

193-528

SCREW,SEMS, Hex Soc Hd, 3/8"-16 x 1 1/2"

BOLT, 3/8 x 1-1/2" N.C. sems

2шт.

15

A58867

CYLINDER

HEAD ASSY. cylinder, Includes Ref. 16 - 19

3шт.

16

NSS

NOT SOLD SEPARAT

GUIDES intake and exhaust valves, Order Ref. 25

4шт.

17

NSS

NOT SOLD SEPARAT

INSERT exhaust valve, Order Ref. 26

2шт.

18

A34124

PLUG,Cup, 1 5/8", Stainless

1-5/8" cup type

2шт.

19

A58620

PLUG,Cup, 3/4", Stainless

3/4" cup type

1шт.

20

A59077

STUD

manifold mounting, 3/8 x 1-13/16"

24шт.

24

A41781

GUIDE

KIT guide, intake and exhaust valves, set of 2

3шт.

25

A57485

INSERT

KIT insert, exhaust valve, set of 2

3шт.

26

A62216

GASKET

cylinder head, w/ silicone rubber grommets at outer push rod and water holes, repairs only

3шт.

27

A59094

CYLINDER HEAD GASKET

cylinder head, Order A62216, w/o grommet inserts, production only

3шт.

28

A59095

GASKET

RING fire, std.

6шт.

28

A42595

GASKET

RING fire, thick, coded w/ blue stripe

1шт.

29

A62732

STEP BOLT

BOLT, 5/8 x 5-5/8" N.C. hex.

30шт.

30

A58629

BEARING WASHER,16.66mm ID x 25.4mm OD x 3.04mm Thk

WASHER cylinder head bolt

30шт.

31

F13156

SENDER UNIT

UNIT temperature sending, in rear head, stamped 362-AE, used w/ A59681 gauge, See Figure 40, used w/ air conditioner, these sender-gauge combinations are not interchangeable

1шт.

31

A61787

TRANSMITTER

UNIT temperature sending, in rear head, stamped 362-EP, used w/ A61786 gauge, See Figure 40, used w/ air conditioner, these sender-gauge combinations are not interchangeable

1шт.

31

A61787

TRANSMITTER

UNIT temperature sending, in rear head, stamped 362-EP, used w/ A61785 gauge, See Figure 40, used w/o air conditioner, these sender-gauge combinations are not interchangeable

1шт.

32

129-661

NUT

brass, no.10 N.F. hex.

1шт.

33

221-1843

PLUG

3/8" P.T. hex. sckt. hd.

5шт.

34

321-1386

DECAL

engine data

1шт.

Выбрано товаров: 33
